NXG-5 | 5 Flute Chipbreaker CR End Mill A-ProMAX Coated

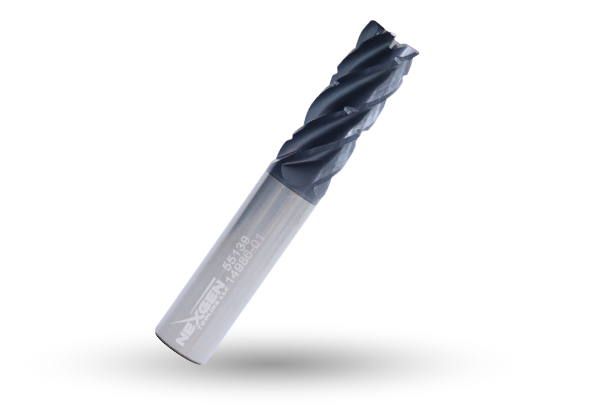

NXG-5 | 5 Flute Chipbreaker CR End Mill A-ProMAX Coated

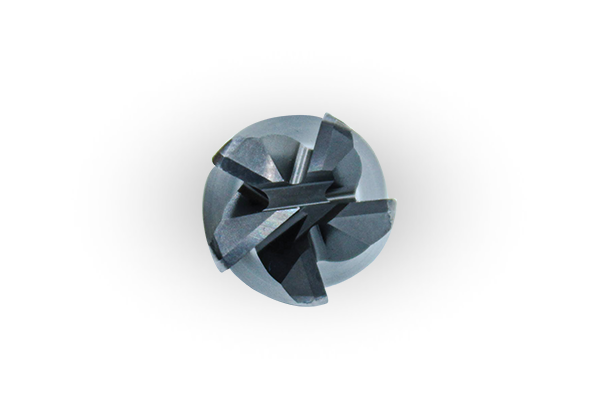

NXG-5 | 5 Flute Chipbreaker CR End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 40 Degree Helix
  • 5-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
55001 0.1250 0.250 1.50 5   0.010   $20.60
55002 0.1250 0.250 1.50 5   0.015   $20.81
55003 0.1250 0.250 1.50 5   0.020   $21.01
55004 0.1250 0.250 1.50 5   0.030   $21.21
55006 0.1250 0.500 2.00 5   0.010   $21.63
55007 0.1250 0.500 2.00 5   0.015   $21.85
55008 0.1250 0.500 2.00 5   0.020   $22.07
55009 0.1250 0.500 2.00 5   0.030   $22.28
55011 0.1250 0.750 2.50 5   0.010   $22.50
55012 0.1250 0.750 2.50 5   0.015   $22.73
55013 0.1250 0.750 2.50 5   0.020   $22.95
55014 0.1250 0.750 2.50 5   0.030   $23.17
55016 0.1875 0.313 2.00 5   0.010   $28.02
55017 0.1875 0.313 2.00 5   0.015   $28.30
55018 0.1875 0.313 2.00 5   0.020   $28.58
55019 0.1875 0.313 2.00 5   0.030   $28.85
55021 0.1875 0.563 2.50 5   0.010   $27.13
55022 0.1875 0.563 2.50 5   0.015   $27.39
55023 0.1875 0.563 2.50 5   0.020   $27.66
55024 0.1875 0.563 2.50 5   0.030   $27.93
55026 0.1875 0.750 2.50 5   0.010   $28.48
55027 0.1875 0.750 2.50 5   0.015   $28.76
55028 0.1875 0.750 2.50 5   0.020   $29.04
55029 0.1875 0.750 2.50 5   0.030   $29.32
55031 0.2500 0.375 2.00 5   0.010   $29.62
55032 0.2500 0.375 2.00 5   0.015   $29.90
55033 0.2500 0.375 2.00 5   0.020   $30.20
55034 0.2500 0.375 2.00 5   0.030   $30.50
55035 0.2500 0.375 2.00 5   0.060   $31.08
55037 0.2500 0.500 2.50 5   0.010   $31.98
55038 0.2500 0.500 2.50 5   0.015   $32.30
55039 0.2500 0.500 2.50 5   0.020   $32.62
55040 0.2500 0.500 2.50 5   0.030   $32.93
55041 0.2500 0.500 2.50 5   0.060   $33.56
55043 0.2500 0.750 2.50 5   0.010   $32.33
55044 0.2500 0.750 2.50 5   0.015   $32.65
55045 0.2500 0.750 2.50 5   0.020   $32.97
55046 0.2500 0.750 2.50 5   0.030   $33.28
55047 0.2500 0.750 2.50 5   0.060   $33.93
55049 0.2500 1.000 3.00 5   0.010   $47.20
55050 0.2500 1.000 3.00 5   0.015   $47.67
55051 0.2500 1.000 3.00 5   0.020   $48.13
55052 0.2500 1.000 3.00 5   0.030   $48.60
55053 0.2500 1.000 3.00 5   0.060   $49.53
55055 0.2500 1.250 3.00 5   0.010   $48.15
55056 0.2500 1.250 3.00 5   0.015   $48.62
55057 0.2500 1.250 3.00 5   0.020   $49.10
55058 0.2500 1.250 3.00 5   0.030   $49.58
55059 0.2500 1.250 3.00 5   0.060   $50.53
55061 0.3125 0.4375 2.00 5   0.010   $38.83
55062 0.3125 0.4375 2.00 5   0.015   $39.21
55063 0.3125 0.4375 2.00 5   0.020   $39.59
55064 0.3125 0.4375 2.00 5   0.030   $39.97
55065 0.3125 0.4375 2.00 5   0.060   $40.75
55067 0.3125 0.813 2.50 5   0.010   $42.68
55068 0.3125 0.813 2.50 5   0.015   $43.10
55069 0.3125 0.813 2.50 5   0.020   $43.52
55070 0.3125 0.813 2.50 5   0.030   $43.95
55071 0.3125 0.813 2.50 5   0.060   $44.80
55073 0.3750 0.500 2.00 5   0.010   $47.73
55074 0.3750 0.500 2.00 5   0.015   $48.21
55075 0.3750 0.500 2.00 5   0.020   $48.68
55076 0.3750 0.500 2.00 5   0.030   $49.15
55077 0.3750 0.500 2.00 5   0.060   $50.10
55078 0.3750 0.500 2.00 5   0.090   $51.04
55079 0.3750 0.500 2.00 5   0.120   $53.88
55080 0.3750 0.500 2.00 5   0.125   $53.88
55082 0.3750 0.750 2.50 5   0.010   $50.34
55083 0.3750 0.750 2.50 5   0.015   $50.84
55084 0.3750 0.750 2.50 5   0.020   $51.34
55085 0.3750 0.750 2.50 5   0.030   $51.83
55086 0.3750 0.750 2.50 5   0.060   $52.83
55087 0.3750 0.750 2.50 5   0.090   $53.83
55088 0.3750 0.750 2.50 5   0.120   $56.82
55089 0.3750 0.750 2.50 5   0.125   $56.82
55091 0.3750 1.000 3.00 5   0.010   $54.12
55092 0.3750 1.000 3.00 5   0.015   $54.66
55093 0.3750 1.000 3.00 5   0.020   $55.19
55094 0.3750 1.000 3.00 5   0.030   $55.73
55095 0.3750 1.000 3.00 5   0.060   $56.81
55096 0.3750 1.000 3.00 5   0.090   $57.88
55097 0.3750 1.000 3.00 5   0.120   $61.09
55098 0.3750 1.000 3.00 5   0.125   $61.09
55100 0.3750 1.250 3.00 5   0.010   $58.46
55101 0.3750 1.250 3.00 5   0.015   $59.03
55102 0.3750 1.250 3.00 5   0.020   $59.61
55103 0.3750 1.250 3.00 5   0.030   $60.19
55104 0.3750 1.250 3.00 5   0.060   $61.35
55105 0.3750 1.250 3.00 5   0.090   $62.51
55106 0.3750 1.250 3.00 5   0.120   $65.97
55107 0.3750 1.250 3.00 5   0.125   $65.97
55109 0.3750 1.500 3.50 5   0.010   $61.66
55110 0.3750 1.500 3.50 5   0.015   $62.28
55111 0.3750 1.500 3.50 5   0.020   $62.88
55112 0.3750 1.500 3.50 5   0.030   $63.49
55113 0.3750 1.500 3.50 5   0.060   $64.71
55114 0.3750 1.500 3.50 5   0.090   $65.93
55115 0.3750 1.500 3.50 5   0.120   $69.60
55116 0.3750 1.500 3.50 5   0.125   $69.60
55118 0.5000 0.625 2.50 5   0.010   $77.69
55119 0.5000 0.625 2.50 5   0.015   $78.46
55120 0.5000 0.625 2.50 5   0.020   $79.22
55121 0.5000 0.625 2.50 5   0.030   $80.00
55122 0.5000 0.625 2.50 5   0.060   $81.54
55123 0.5000 0.625 2.50 5   0.090   $83.07
55124 0.5000 0.625 2.50 5   0.120   $87.68
55125 0.5000 0.625 2.50 5   0.125   $87.68
55127 0.5000 1.000 3.00 5   0.010   $83.10
55128 0.5000 1.000 3.00 5   0.015   $83.93
55129 0.5000 1.000 3.00 5   0.020   $84.75
55130 0.5000 1.000 3.00 5   0.030   $85.25
55131 0.5000 1.000 3.00 5   0.060   $87.22
55132 0.5000 1.000 3.00 5   0.090   $88.87
55133 0.5000 1.000 3.00 5   0.120   $93.80
55134 0.5000 1.000 3.00 5   0.125   $93.80
55136 0.5000 1.250 3.00 5   0.010   $83.69
55137 0.5000 1.250 3.00 5   0.015   $84.52
55138 0.5000 1.250 3.00 5   0.020   $85.35
55139 0.5000 1.250 3.00 5   0.030   $86.18
55140 0.5000 1.250 3.00 5   0.060   $87.83
55141 0.5000 1.250 3.00 5   0.090   $89.50
55142 0.5000 1.250 3.00 5   0.120   $94.47
55143 0.5000 1.250 3.00 5   0.125   $94.47
55145 0.5000 1.625 4.00 5   0.010   $95.69
55146 0.5000 1.625 4.00 5   0.015   $96.64
55147 0.5000 1.625 4.00 5   0.020   $97.58
55148 0.5000 1.625 4.00 5   0.030   $98.53
55149 0.5000 1.625 4.00 5   0.060   $100.42
55150 0.5000 1.625 4.00 5   0.090   $102.32
55151 0.5000 1.625 4.00 5   0.120   $108.00
55152 0.5000 1.625 4.00 5   0.125   $108.00
55154 0.5000 2.000 4.00 5   0.010   $100.48
55155 0.5000 2.000 4.00 5   0.015   $101.47
55156 0.5000 2.000 4.00 5   0.020   $102.46
55157 0.5000 2.000 4.00 5   0.030   $103.46
55158 0.5000 2.000 4.00 5   0.060   $105.45
55159 0.5000 2.000 4.00 5   0.090   $107.44
55160 0.5000 2.000 4.00 5   0.120   $113.41
55161 0.5000 2.000 4.00 5   0.125   $113.41
55163 0.6250 0.750 3.00 5   0.010   $142.87
55164 0.6250 0.750 3.00 5   0.015   $144.28
55165 0.6250 0.750 3.00 5   0.020   $145.69
55166 0.6250 0.750 3.00 5   0.030   $147.11
55167 0.6250 0.750 3.00 5   0.060   $149.94
55168 0.6250 0.750 3.00 5   0.090   $152.77
55169 0.6250 0.750 3.00 5   0.120   $161.25
55170 0.6250 0.750 3.00 5   0.125   $161.25
55172 0.6250 1.250 3.50 5   0.010   $154.33
55173 0.6250 1.250 3.50 5   0.015   $155.85
55174 0.6250 1.250 3.50 5   0.020   $157.38
55175 0.6250 1.250 3.50 5   0.030   $158.90
55176 0.6250 1.250 3.50 5   0.060   $161.96
55177 0.6250 1.250 3.50 5   0.090   $165.02
55178 0.6250 1.250 3.50 5   0.120   $174.18
55179 0.6250 1.250 3.50 5   0.125   $174.18
55181 0.6250 1.625 3.50 5   0.010   $162.83
55182 0.6250 1.625 3.50 5   0.015   $164.44
55183 0.6250 1.625 3.50 5   0.020   $166.06
55184 0.6250 1.625 3.50 5   0.030   $167.67
55185 0.6250 1.625 3.50 5   0.060   $170.89
55186 0.6250 1.625 3.50 5   0.090   $174.12
55187 0.6250 1.625 3.50 5   0.120   $183.79
55188 0.6250 1.625 3.50 5   0.125   $183.79
55190 0.6250 2.125 4.00 5   0.010   $175.08
55191 0.6250 2.125 4.00 5   0.015   $176.81
55192 0.6250 2.125 4.00 5   0.020   $178.55
55193 0.6250 2.125 4.00 5   0.030   $180.27
55194 0.6250 2.125 4.00 5   0.060   $183.75
55195 0.6250 2.125 4.00 5   0.090   $187.22
55196 0.6250 2.125 4.00 5   0.120   $197.62
55197 0.6250 2.125 4.00 5   0.125   $197.62
55199 0.6250 2.500 5.00 5   0.010   $184.68
55200 0.6250 2.500 5.00 5   0.015   $186.51
55201 0.6250 2.500 5.00 5   0.020   $188.34
55202 0.6250 2.500 5.00 5   0.030   $190.16
55203 0.6250 2.500 5.00 5   0.060   $193.82
55204 0.6250 2.500 5.00 5   0.090   $197.48
55205 0.6250 2.500 5.00 5   0.120   $208.45
55206 0.6250 2.500 5.00 5   0.125   $208.45
55208 0.7500 1.000 3.00 5   0.010   $216.53
55209 0.7500 1.000 3.00 5   0.015   $218.67
55210 0.7500 1.000 3.00 5   0.020   $220.81
55211 0.7500 1.000 3.00 5   0.030   $222.96
55212 0.7500 1.000 3.00 5   0.060   $227.24
55213 0.7500 1.000 3.00 5   0.090   $231.53
55214 0.7500 1.000 3.00 5   0.120   $244.39
55215 0.7500 1.000 3.00 5   0.125   $244.39
55216 0.7500 1.000 3.00 5   0.190   $252.97
55217 0.7500 1.000 3.00 5   0.250   $257.25
55219 0.7500 1.625 4.00 5   0.010   $227.26
55220 0.7500 1.625 4.00 5   0.015   $229.51
55221 0.7500 1.625 4.00 5   0.020   $231.77
55222 0.7500 1.625 4.00 5   0.030   $234.02
55223 0.7500 1.625 4.00 5   0.060   $238.51
55224 0.7500 1.625 4.00 5   0.090   $243.02
55225 0.7500 1.625 4.00 5   0.120   $256.52
55226 0.7500 1.625 4.00 5   0.125   $256.52
55227 0.7500 1.625 4.00 5   0.190   $265.52
55228 0.7500 1.625 4.00 5   0.250   $270.01
55230 0.7500 2.250 5.00 5   0.010   $245.58
55231 0.7500 2.250 5.00 5   0.015   $248.01
55232 0.7500 2.250 5.00 5   0.020   $250.45
55233 0.7500 2.250 5.00 5   0.030   $252.87
55234 0.7500 2.250 5.00 5   0.060   $257.74
55235 0.7500 2.250 5.00 5   0.090   $262.60
55236 0.7500 2.250 5.00 5   0.120   $277.19
55237 0.7500 2.250 5.00 5   0.125   $277.19
55238 0.7500 2.250 5.00 5   0.190   $286.92
55239 0.7500 2.250 5.00 5   0.250   $291.78
55241 0.7500 2.750 5.00 5   0.010   $250.00
55242 0.7500 2.750 5.00 5   0.015   $252.48
55243 0.7500 2.750 5.00 5   0.020   $254.95
55244 0.7500 2.750 5.00 5   0.030   $257.43
55245 0.7500 2.750 5.00 5   0.060   $262.38
55246 0.7500 2.750 5.00 5   0.090   $267.33
55247 0.7500 2.750 5.00 5   0.120   $282.18
55248 0.7500 2.750 5.00 5   0.125   $282.18
55249 0.7500 2.750 5.00 5   0.190   $292.08
55250 0.7500 2.750 5.00 5   0.250   $297.03
55252 0.7500 3.250 6.00 5   0.010   $277.50
55253 0.7500 3.250 6.00 5   0.015   $280.25
55254 0.7500 3.250 6.00 5   0.020   $283.00
55255 0.7500 3.250 6.00 5   0.030   $285.74
55256 0.7500 3.250 6.00 5   0.060   $291.24
55257 0.7500 3.250 6.00 5   0.090   $296.74
55258 0.7500 3.250 6.00 5   0.120   $313.22
55259 0.7500 3.250 6.00 5   0.125   $313.22
55260 0.7500 3.250 6.00 5   0.190   $324.21
55261 0.7500 3.250 6.00 5   0.250   $329.70
55263 1.0000 1.250 4.50 5   0.010   $344.45
55264 1.0000 1.250 4.50 5   0.015   $347.86
55265 1.0000 1.250 4.50 5   0.020   $351.26
55266 1.0000 1.250 4.50 5   0.030   $354.68
55267 1.0000 1.250 4.50 5   0.060   $361.50
55268 1.0000 1.250 4.50 5   0.090   $368.32
55269 1.0000 1.250 4.50 5   0.120   $388.78
55270 1.0000 1.250 4.50 5   0.125   $388.78
55271 1.0000 1.250 4.50 5   0.190   $402.42
55272 1.0000 1.250 4.50 5   0.250   $409.24
55274 1.0000 2.000 4.50 5   0.010   $368.56
55275 1.0000 2.000 4.50 5   0.015   $372.21
55276 1.0000 2.000 4.50 5   0.020   $375.85
55277 1.0000 2.000 4.50 5   0.030   $379.50
55278 1.0000 2.000 4.50 5   0.060   $386.80
55279 1.0000 2.000 4.50 5   0.090   $394.10
55280 1.0000 2.000 4.50 5   0.120   $416.00
55281 1.0000 2.000 4.50 5   0.125   $416.00
55282 1.0000 2.000 4.50 5   0.190   $430.59
55283 1.0000 2.000 4.50 5   0.250   $437.89
55285 1.0000 2.625 5.00 5   0.010   $401.73
55286 1.0000 2.625 5.00 5   0.015   $405.70
55287 1.0000 2.625 5.00 5   0.020   $409.68
55288 1.0000 2.625 5.00 5   0.030   $413.67
55289 1.0000 2.625 5.00 5   0.060   $421.62
55290 1.0000 2.625 5.00 5   0.090   $429.58
55291 1.0000 2.625 5.00 5   0.120   $453.44
55292 1.0000 2.625 5.00 5   0.125   $453.44
55293 1.0000 2.625 5.00 5   0.190   $469.35
55294 1.0000 2.625 5.00 5   0.250   $477.30
55296 1.0000 3.250 6.00 5   0.010   $429.85
55297 1.0000 3.250 6.00 5   0.015   $434.10
55298 1.0000 3.250 6.00 5   0.020   $438.36
55299 1.0000 3.250 6.00 5   0.030   $442.61
55300 1.0000 3.250 6.00 5   0.060   $451.13
55301 1.0000 3.250 6.00 5   0.090   $459.64
55302 1.0000 3.250 6.00 5   0.120   $485.17
55303 1.0000 3.250 6.00 5   0.125   $485.17
55304 1.0000 3.250 6.00 5   0.190   $502.20
55305 1.0000 3.250 6.00 5   0.250   $510.71
55307 1.0000 4.250 7.00 5   0.010   $459.93
55308 1.0000 4.250 7.00 5   0.015   $464.49
55309 1.0000 4.250 7.00 5   0.020   $469.05
55310 1.0000 4.250 7.00 5   0.030   $473.60
55311 1.0000 4.250 7.00 5   0.060   $482.70
55312 1.0000 4.250 7.00 5   0.090   $491.82
55313 1.0000 4.250 7.00 5   0.120   $519.14
55314 1.0000 4.250 7.00 5   0.125   $519.14
55315 1.0000 4.250 7.00 5   0.190   $537.36
55316 1.0000 4.250 7.00 5   0.250   $546.46

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
