The right coating can make the difference between simply cutting a material and machining it efficiently. NEXGEN PROMAX coatings are matched to the material, temperature and wear conditions your cutting tools face.
Which Coating Should I Choose?
Material is the starting point. The operation, hardness, tool geometry, heat and cutting strategy can further influence the final choice.
Steels & General Machining
A tough, wear-resistant coating for a broad range of ferrous applications and difficult-to-machine materials.
A-PROMAX →Hardened Steels & High-Temp Alloys
Extremely hard and wear resistant for hard machining, demanding alloys and high-temperature cutting environments.
T-PROMAX →Aluminum & Non-Ferrous
Advanced carbon-based coating technology for ultra-sharp cutting edges, low material adhesion and high-precision machining.
X-PROMAX →Three Coatings. Different Strengths.

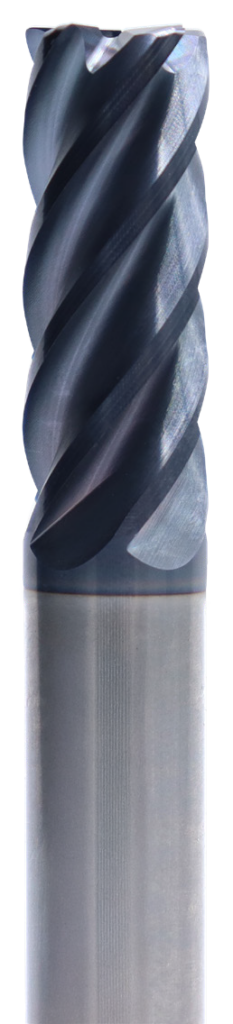

A-PROMAX
Our versatile coating option. Designed to combine toughness, heat resistance and strong wear performance across a broad range of machining applications.
T-PROMAX
Our hardest PROMAX option for demanding applications. Built around high hardness, wear resistance, surface quality and hard-machining performance.

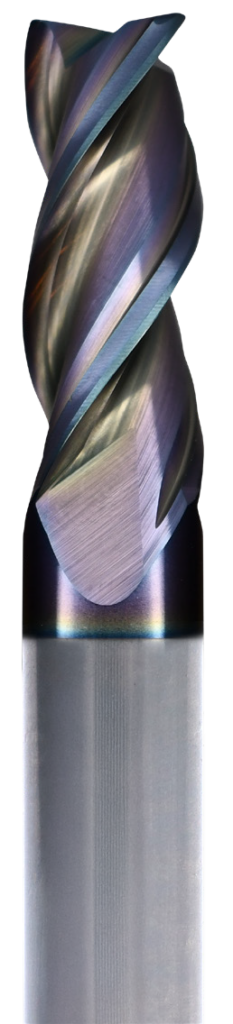

X-PROMAX
Our premium non-ferrous solution uses advanced carbon-based DLC technology to maintain sharp cutting edges, minimize sticking and support high-precision machining.
Advanced DLC Performance
X-PROMAX uses an advanced ta-C carbon coating technology developed for demanding non-ferrous applications where cutting-edge sharpness, smoothness, wear resistance and precision matter.
PROMAX Specifications
Compare the core coating characteristics and select the performance profile that best fits the machining application.
A-PROMAX
- Color: Grey / Blue Grey
- Nano-Hardness: 36–38 GPa
- Friction Coefficient: 0.5
- Coating Thickness: 1–5 µm
- Max Service Temperature: 900°C / approx. 1650°F
- Coating Process Temperature: 400–500°C
- Key Strength: Wear resistance, toughness and broad application range

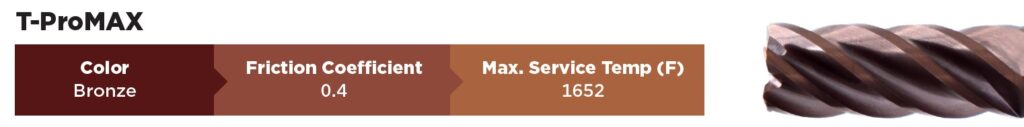

T-PROMAX
- Color: Copper / Bronze
- Nano-Hardness: 42–44 GPa
- Friction Coefficient: 0.4
- Coating Thickness: 1–4 µm
- Max Service Temperature: 900°C / approx. 1650°F
- Coating Process Temperature: 450–500°C
- Key Strength: Extreme hardness, wear resistance and high surface quality
X-PROMAX
- Coating Material: ta-C carbon
- Color: Rainbow / Rainbow Black
- Hardness: > 65 GPa
- Dry Friction Coefficient: < 0.10 vs. steel
- Max Service Temperature: > 500°C / > 932°F
- Process Temperature: < 150°C
- Key Strength: Ultra-sharp cutting edges, superior smoothness and minimal material adhesion
PROMAX Coating Guide
Use this as a starting point. Material, hardness, operation, cutting strategy and tool geometry can all influence the final recommendation.
| Characteristic | A-PROMAX | T-PROMAX | X-PROMAX DLC |
|---|---|---|---|
| Best Starting Point | Broad ferrous and difficult machining applications | Hard machining, hardened steels and demanding alloys | Aluminum and high-performance non-ferrous machining |
| Coating Technology | AlCrTiN-based | Nanocomposite | ta-C carbon / DLC technology |
| Color | Grey / Blue Grey | Copper / Bronze | Rainbow / Rainbow Black |
| Hardness | 36–38 GPa | 42–44 GPa | > 65 GPa |
| Coefficient of Friction | 0.5 | 0.4 | < 0.10 dry vs. steel |
| Coating Thickness | 1–5 µm | 1–4 µm | Ultra-thin |
| Max Service Temperature | 900°C / ~1650°F | 900°C / approx. 1650°F | >500°C / >932°F |
| Key Advantage | Tough, wear-resistant, versatile performance | Extreme hardness and hard-machining performance | Ultra-low friction, sharp edges and minimal material adhesion |
Why PROMAX Coatings
NEXGEN applies PROMAX coatings in-house, with pre- and post-process treatments done onsite.
- Increased tool life
- Increased wear resistance
- Improved performance
- Improved surface finishes
- Added lubricity
- Lower tool costs
Shop by coating: A-ProMAX tools · T-ProMAX tools · X-ProMAX tools
Optional coatings: ZrN and Diamond. Call for price and availability.
Coating Questions
Which NEXGEN coating is best for aluminum?
X-ProMAX. It uses ta-C diamond-like carbon (DLC) technology for sharp cutting edges, low friction, and reduced material adhesion in aluminum and non-ferrous machining.
Which coating should I use for hardened steel?
T-ProMAX is NEXGEN's hardest PROMAX coating and is built for hard machining of hardened steels, stainless steels, and superalloys, including finishing work at very high cutting temperatures.
What is A-ProMAX used for?
A-ProMAX is the versatile AlCrTiN-based option for a broad range of ferrous applications, including unalloyed and hardened steels, superalloys, and difficult-to-machine materials.
Is X-ProMAX a DLC coating?
Yes. X-ProMAX is a tetrahedral amorphous carbon (ta-C) diamond-like carbon coating.
Are NEXGEN coatings applied in-house?
Yes. PROMAX coatings are applied in-house, and coating hardness, thickness, and post-polish results are inspected as part of NEXGEN's quality process.
Are reconditioned tools recoated?
Yes. Originally coated NEXGEN tools are recoated after reconditioning. See the tool reconditioning program.
