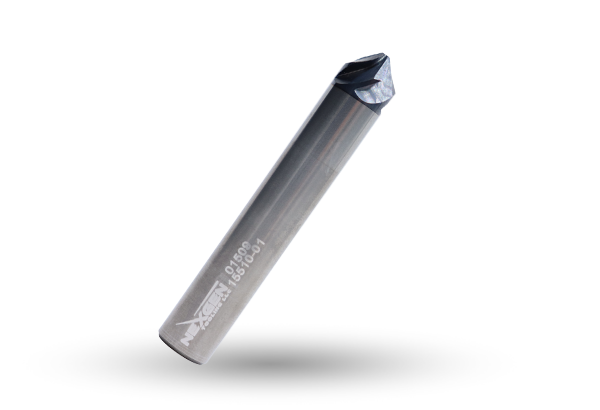

5 Flute Chamfer Mill A-ProMAX Coated

5 Flute Chamfer Mill A-ProMAX Coated

Overview

Premium high performance carbide chamfer mills for use in ferrous and non-ferrous alloys.

Ideal for chamferring, deburring, pocket chamfering and hole chamfering.

Helical design for freer cutting action in tougher materials.

Features & Benefits

  • 35 Degree Helix
  • 5-Flute
  • Non-Center Cutting
  • 60~120 Point Angles
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX

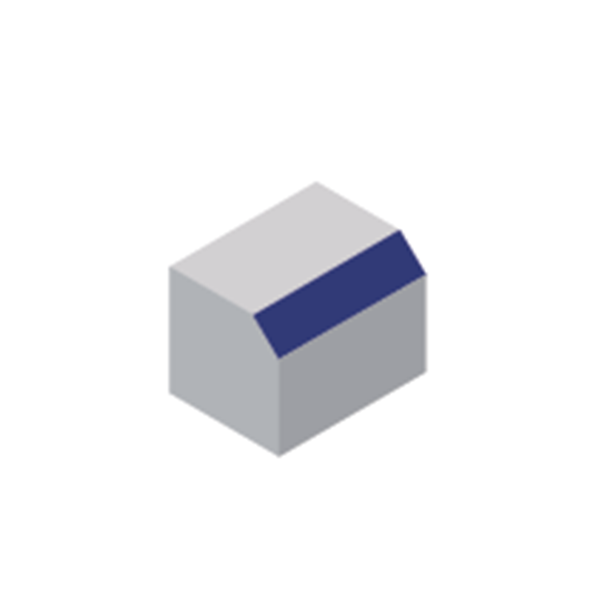

BEVEL EDGE

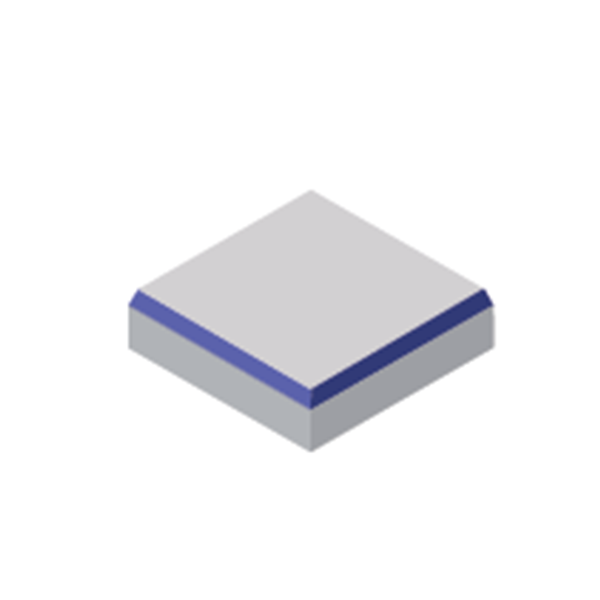

CHAMFER EDGE

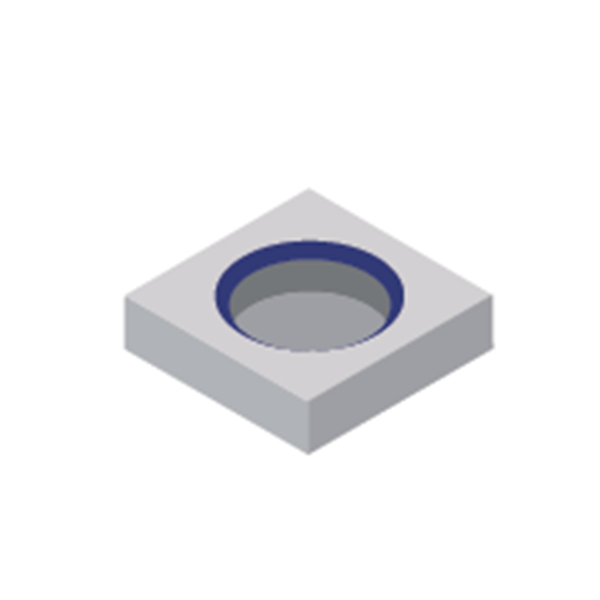

CHAMFERED HOLE
CHAMFERED POCKET

Tolerances

Cut Diameter: Shank Diameter: Overall Length: Point Angle:
+.000/-.002 h6 +/- .050 +/- 1/2°

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
01500 0.25 0.1443 2.5 5       $38.57
01501 0.25 0.1768 2.5 5       $38.57
01502 0.25 0.1945 2.5 5       $38.57
01503 0.25 0.250 2.5 5       $38.57
01504 0.375 0.2165 2.5 5       $54.54
01505 0.375 0.2652 2.5 5       $54.54
01506 0.375 0.2917 2.5 5       $54.54
01507 0.375 0.375 2.5 5       $54.54
01508 0.5 0.2887 3 5       $75.88
01509 0.5 0.3536 3 5       $75.88
01510 0.5 0.3889 3 5       $75.88
01511 0.5 0.5 3 5       $75.88
01512 0.75 0.4330 3 5       $188.14
01513 0.75 0.5303 3 5       $188.14
01514 0.75 0.5834 3 5       $188.14
01515 0.75 0.75 3 5       $188.14
