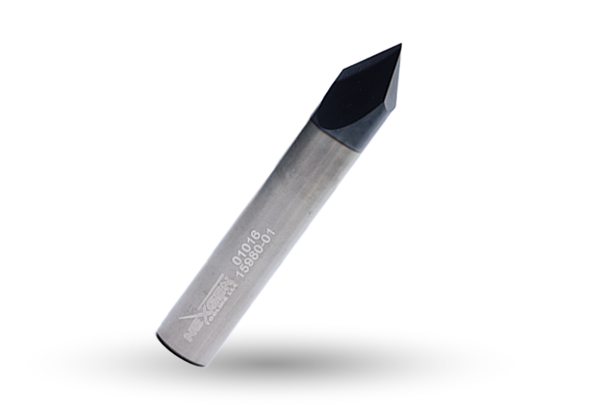

CHM-2 | 2 Flute Chamfer Mill A-ProMAX Coated

CHM-2 | 2 Flute Chamfer Mill A-ProMAX Coated

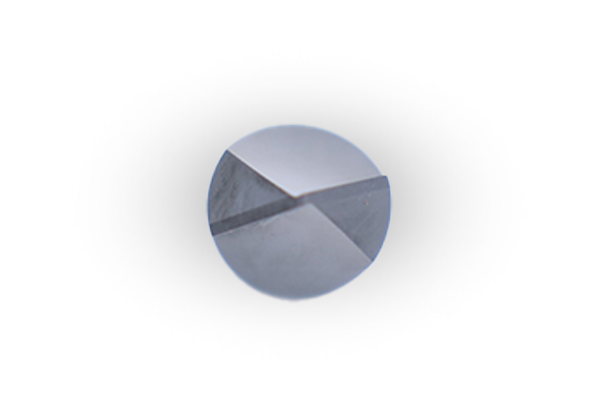

CHM-2 | 2 Flute Chamfer Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide chamfer mills for use in ferrous and non-ferrous alloys.

Ideal for chamfering, deburring, pocket chamfering and hole chamfering

Features & Benefits

  • 0 Degree Helix
  • 2-Flute
  • Center Cutting
  • 60-120 Point Angles
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
BEVEL EDGE
CHAMFER EDGE
CHAMFERED HOLE
CHAMFERED POCKET

Tolerances

Cut Diameter Shank Diameter Overall Length Point Angle Tolerance
+.000/-.002 h6 +/- .050 +/- 1/2°

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
01000 0.1250 0.75 2.00 2       $17.96
01001 0.1250 1.125 2.00 2       $17.96
01002 0.1250 1.375 2.00 2       $17.96
01003 0.1250 1.625 2.00 2       $17.96
01004 0.1875 1.125 2.00 2       $21.56
01005 0.1875 1.625 2.00 2       $21.56
01006 0.1875 2.125 2.00 2       $21.56
01007 0.1875 2.5 2.00 2       $21.56
01008 0.2500 4.125 2.50 2       $26.86
01009 0.2500 2.625 2.50 2       $26.86
01010 0.2500 3.375 2.50 2       $26.86
01011 0.2500 4.375 2.50 2       $26.86
01012 0.3750 1.125 2.50 2       $36.67
01013 0.3750 1.375 2.50 2       $36.67
01014 0.3750 1.625 2.50 2       $36.67
01015 0.3750 1.875 2.50 2       $36.67
01016 0.5000 1.375 3.00 2       $50.56
01017 0.5000 2.25 3.00 2       $50.56
01018 0.5000 3.375 3.00 2       $50.56
01019 0.5000 3.75 3.00 2       $50.56
