CHM-3 | 3 Flute Chamfer Mill A-ProMAX Coated

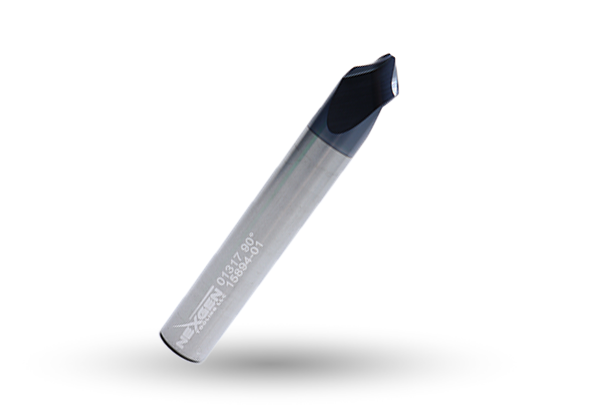

CHM-3 | 3 Flute Chamfer Mill A-ProMAX Coated

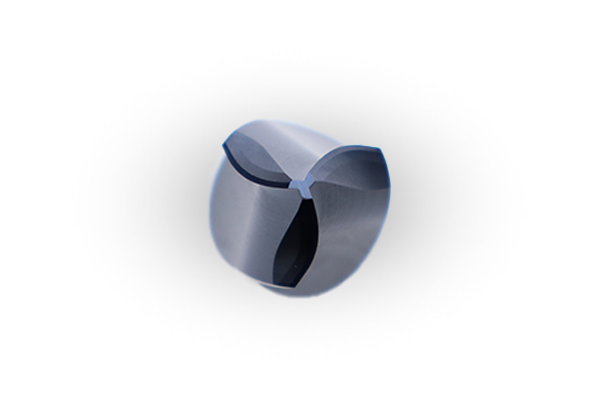

CHM-3 | 3 Flute Chamfer Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide chamfer mills for use in ferrous and non-ferrous alloys.

Ideal for chamfering, deburring, pocket chamfering and hole chamfering.

Features & Benefits

  • 35 Degree Helix
  • 3-Flute
  • Non-Center Cutting
  • 60~120 Point Angles
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
BEVEL EDGE
CHAMFER EDGE
CHAMFERED HOLE
CHAMFERED POCKET

Tolerances

Cut Diameter: Shank Diameter: Overall Length: Point Angle:
+.000/-.002 h6 +/- .050 +/- 1/2°

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
01300 0.1250 2.25 2.00 3       $19.76
01301 0.1250 3.375 2.00 3       $19.76
01302 0.1250 3.75 2.00 3       $19.76
01303 0.1250 2.375 2.00 3       $19.76
01304 0.1875 1.875 2.00 3       $24.69
01305 0.1875 2.125 2.00 3       $24.69
01306 0.1875 2.5 2.00 3       $24.69
01307 0.1875 1.125 2.00 3       $24.69
01308 0.2500 2.125 2.50 3       $29.55
01309 0.2500 2.5 2.50 3       $29.55
01310 0.2500 1.125 2.50 3       $29.55
01311 0.2500 1.75 2.50 3       $29.55
01312 0.3750 2.125 2.50 3       $40.33
01313 0.3750 2.5 2.50 3       $40.33
01314 0.3750 3.125 2.50 3       $40.33
01315 0.3750 1.375 2.50 3       $40.33
01316 0.5000 3.375 3.00 3       $55.63
01317 0.5000 4.375 3.00 3       $55.63
01318 0.5000 6 3.00 3       $55.63
01319 0.5000 1.125 3.00 3       $55.63
01320 0.7500 3.00 3       $141.91
01321 0.7500 3.00 3       $141.91
01322 0.7500 3.00 3       $141.91
01323 0.7500 3.00 3       $141.91
