CHM-4 | 4 Flute Chamfer Mill A-ProMAX Coated

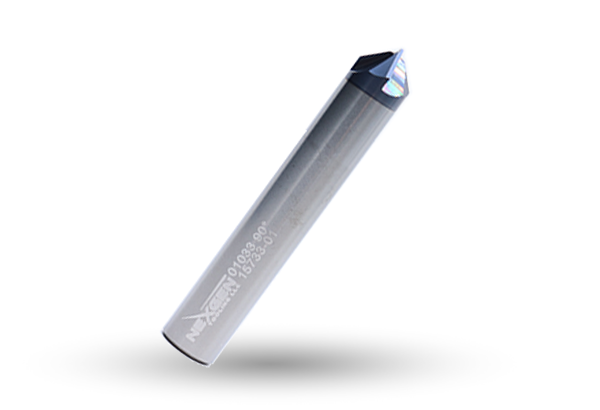

CHM-4 | 4 Flute Chamfer Mill A-ProMAX Coated

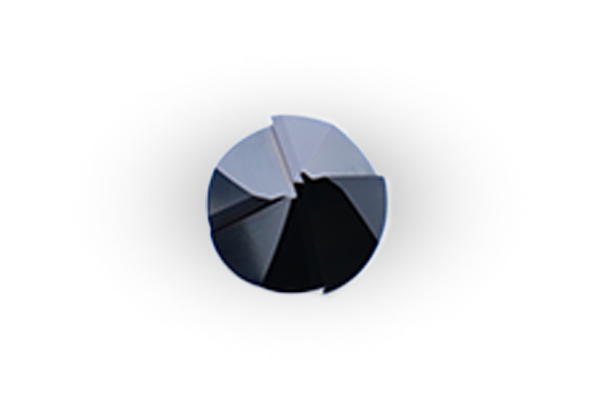

CHM-4 | 4 Flute Chamfer Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide chamfer mills for use in ferrous and non-ferrous alloys.

Ideal for chamfering, deburring, pocket chamfering and hole chamfering.

Features & Benefits

  • 35 Degree Helix
  • 3-Flute
  • Non-Center Cutting
  • 60~120 Point Angles
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
BEVEL EDGE
CHAMFER EDGE
CHAMFERED HOLE
CHAMFERED POCKET

Tolerances

Cut Diameter: Shank Diameter: Overall Length: Point Angle:
+.000/-.002 h6 +/- .050 +/- 1/2°

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
01020 0.1875 2.00 4       $22.64
01021 0.1875 2.00 4       $22.64
01022 0.1875 2.00 4       $22.64
01023 0.1875 2.00 4       $22.64
01024 0.2500 2.50 4       $28.21
01025 0.2500 2.50 4       $28.21
01026 0.2500 2.50 4       $28.21
01027 0.2500 2.50 4       $28.21
01028 0.3750 2.50 4       $38.50
01029 0.3750 2.50 4       $38.50
01030 0.3750 2.50 4       $38.50
01031 0.3750 2.50 4       $38.50
01032 0.5000 3.00 4       $53.10
01033 0.5000 3.00 4       $53.10
01034 0.5000 3.00 4       $53.10
01035 0.5000 3.00 4       $53.10
01036 0.7500 3.00 4       $126.51
01037 0.7500 3.00 4       $126.51
01038 0.7500 3.00 4       $126.51
01039 0.7500 3.00 4       $126.51
