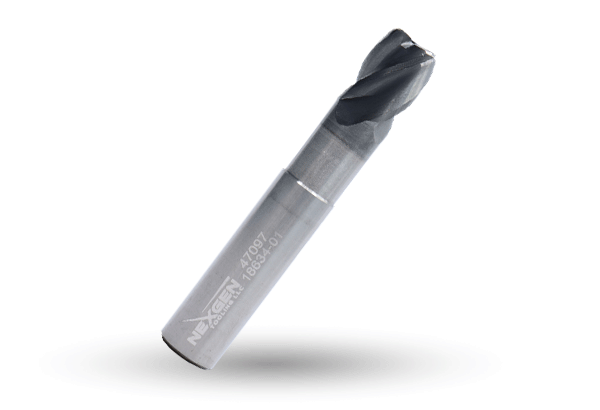

4 Flute Reduced Neck Square End Mill A-ProMAX Coated

4 Flute Reduced Neck Square End Mill A-ProMAX Coated

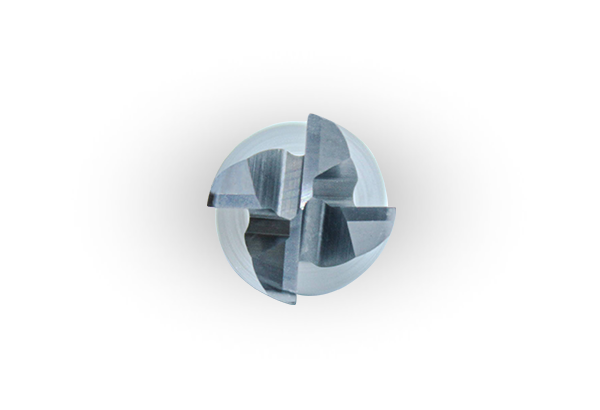

4 Flute Reduced Neck Square End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600
degrees F, A-ProMAX coating the ideal tool coating for ferrous steel
applications.

Variable index design reduced harmonic vibrations, enabling higher
metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 35 Degree Helix
  • 4-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • Reduced Neck
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
POCKETING
CONTOURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
47000 0.125 0.156 0.5 2.5 4       $30.74
47004 0.125 0.156 0.75 3 4       $33.46
47008 0.125 0.156 0.75 3 4       $34.94
47012 0.1875 0.2185 0.5 2.5 4       $35.07
47016 0.1875 0.2185 0.75 3 4       $36.67
47020 0.1875 0.2185 0.75 3 4       $37.78
47024 0.25 0.375 1.125 3 4       $50.25
47029 0.25 0.375 1.125 3 4       $54.08
47034 0.25 0.375 1.125 3 4       $54.78
47039 0.25 0.375 2.125 4 4       $55.49
47044 0.25 0.375 2.5 4 4       $56.53
47049 0.3125 0.4375 1.125 4 4       $64.77
47054 0.3125 0.4375 1.5000 4 4       $65.30
47059 0.3125 0.4375 2.125 4 4       $69.10
47064 0.375 0.5 1.125 3 4       $75.90
47070 0.375 0.5 1.625 3 4       $78.24
47076 0.375 0.5 2.125 4 4       $80.62
47082 0.375 0.5 2.5 5 4       $93.22
47088 0.375 0.5 3.125 6 4       $105.82
47094 0.5 0.625 1.375 3 4       $111.86
47101 0.5 0.625 2.25 4 4       $120.50
47108 0.5 0.625 3.125 5 4       $174.09
47115 0.5 0.625 4.125 6 4       $177.30
47122 0.625 0.75 2.375 4 4       $261.02
47129 0.625 0.75 3.375 6 4       $282.62
47136 0.75 1 2 4 4       $252.37
47145 0.75 1 2.5 5 4       $306.82
47154 0.75 1 3.375 6 4       $322.62
47163 0.75 1 4.125 7 4       $331.15
47172 1 1.25 2.625 5 4       $472.39
47181 1 1.25 3.375 6 4       $531.11
47190 1 1.25 4.375 7 4       $533.50
47199 1 1.25 6 9 4       $584.13
