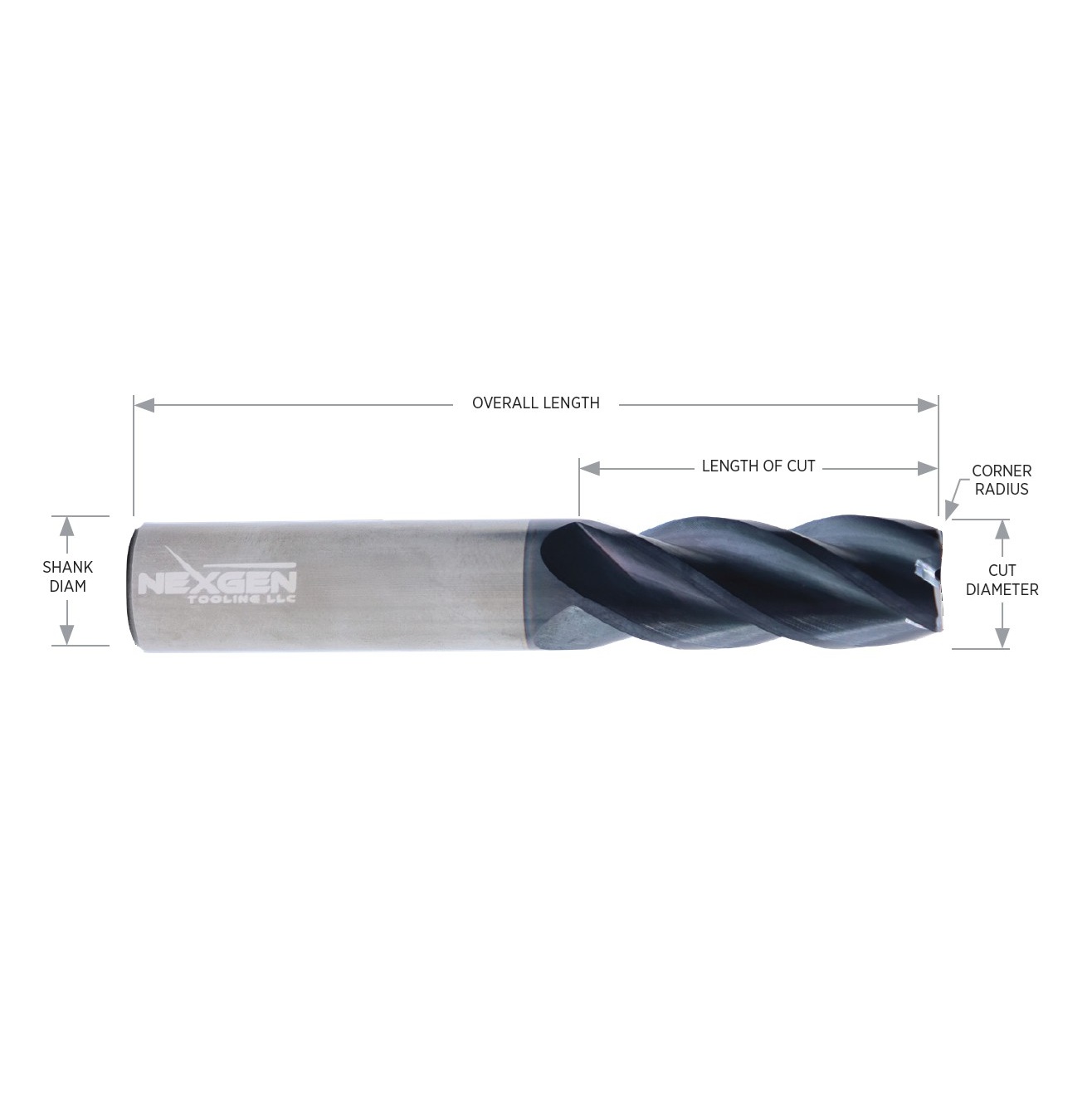

NXG-4 | 4 Flute CR End Mill A-ProMAX Coated - Image 3

Overview

Premium high performance 4-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 35 Degree Helix
  • 4-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
POCKETING
COUNTURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
41000 0.1250 0.250 1.50 4   0.010   $18.04
41001 0.1250 0.500 2.00 4   0.010   $18.59
41002 0.1875 0.313 2.50 4   0.010   $22.43
41003 0.1875 0.563 2.50 4   0.010   $23.30
41004 0.2500 0.375 2.50 4   0.020   $26.47
41005 0.2500 0.750 2.50 4   0.020   $28.13
41006 0.2500 1.000 3.00 4   0.020   $41.35
41007 0.3750 0.500 2.00 4   0.020   $41.42
41008 0.3750 1.000 3.00 4   0.020   $47.42
41009 0.5000 0.625 2.50 4   0.030   $69.07
41010 0.5000 1.000 3.00 4   0.030   $74.24
41011 0.5000 1.250 3.00 4   0.030   $75.13
41012 0.5000 1.625 4.00 4   0.030   $85.66
41013 0.6250 1.000 3.00 4   0.030   $136.50
41014 0.6250 1.625 3.50 4   0.030   $144.76
41015 0.7500 1.000 4.00 4   0.030   $208.92
41016 0.7500 1.625 4.00 4   0.030   $205.05
41017 1.0000 1.250 4.50 4   0.030   $307.72
41018 1.0000 2.000 4.50 4   0.030   $329.26
41019 0.1250 0.250 1.50 4   0.015   $18.23
41020 0.1250 0.250 1.50 4   0.030   $18.58
41021 0.1250 0.500 2.00 4   0.015   $18.77
41022 0.1250 0.500 2.00 4   0.030   $19.14
41023 0.1250 0.750 2.50 4   0.010   $19.33
41024 0.1250 0.750 2.50 4   0.015   $19.53
41025 0.1250 0.750 2.50 4   0.030   $19.91
41026 0.1875 0.313 2.00 4   0.010   $21.78
41027 0.1875 0.313 2.00 4   0.015   $22.00
41028 0.1875 0.563 2.50 4   0.015   $23.53
41029 0.1875 0.563 2.50 4   0.030   $24.00
41030 0.1875 0.750 2.50 4   0.010   $24.46
41031 0.1875 0.750 2.50 4   0.015   $24.71
41032 0.1875 0.750 2.50 4   0.030   $25.20
41033 0.2500 0.375 2.00 4   0.010   $25.44
41034 0.2500 0.375 2.00 4   0.015   $25.69
41035 0.2500 0.375 2.00 4   0.030   $26.19
41036 0.2500 0.375 2.00 4   0.060   $26.70
41037 0.2500 0.500 2.50 4   0.010   $27.48
41038 0.2500 0.500 2.50 4   0.015   $27.75
41039 0.2500 0.500 2.50 4   0.020   $28.03
41040 0.2500 0.500 2.50 4   0.030   $28.29
41041 0.2500 0.500 2.50 4   0.060   $28.84
41042 0.2500 0.750 2.50 4   0.010   $27.59
41043 0.2500 0.750 2.50 4   0.015   $27.86
41044 0.2500 0.750 2.50 4   0.030   $28.41
41045 0.2500 0.750 2.50 4   0.060   $28.95
41046 0.2500 1.000 3.00 4   0.010   $40.56
41047 0.2500 1.000 3.00 4   0.015   $40.96
41048 0.2500 1.000 3.00 4   0.060   $42.56
41049 0.2500 1.250 3.00 4   0.010   $41.36
41050 0.2500 1.250 3.00 4   0.015   $41.77
41051 0.2500 1.250 3.00 4   0.020   $42.19
41052 0.2500 1.250 3.00 4   0.030   $42.59
41053 0.2500 1.250 3.00 4   0.060   $43.41
41054 0.3125 0.4375 2.00 4   0.010   $33.04
41055 0.3125 0.4375 2.00 4   0.015   $33.36
41056 0.3125 0.4375 2.00 4   0.020   $33.69
41057 0.3125 0.4375 2.00 4   0.030   $34.02
41058 0.3125 0.4375 2.00 4   0.060   $34.67
41059 0.3125 0.813 2.50 4   0.010   $36.67
41060 0.3125 0.813 2.50 4   0.015   $37.04
41061 0.3125 0.813 2.50 4   0.020   $37.40
41062 0.3125 0.813 2.50 4   0.030   $37.76
41063 0.3125 0.813 2.50 4   0.060   $38.49
41064 0.3750 0.500 2.00 4   0.010   $40.62
41065 0.3750 0.500 2.00 4   0.015   $41.02
41066 0.3750 0.500 2.00 4   0.030   $41.83
41067 0.3750 0.500 2.00 4   0.060   $42.63
41068 0.3750 0.500 2.00 4   0.090   $43.43
41069 0.3750 0.500 2.00 4   0.120   $45.85
41070 0.3750 0.500 2.00 4   0.125   $45.85
41071 0.3750 1.000 3.00 4   0.010   $46.50
41072 0.3750 1.000 3.00 4   0.015   $46.97
41073 0.3750 1.000 3.00 4   0.030   $47.88
41074 0.3750 1.000 3.00 4   0.060   $48.80
41075 0.3750 1.000 3.00 4   0.090   $49.72
41076 0.3750 1.000 3.00 4   0.120   $52.49
41077 0.3750 1.000 3.00 4   0.125   $52.49
41078 0.3750 1.250 3.00 4   0.010   $50.22
41079 0.3750 1.250 3.00 4   0.015   $50.72
41080 0.3750 1.250 3.00 4   0.020   $51.22
41081 0.3750 1.250 3.00 4   0.030   $51.72
41082 0.3750 1.250 3.00 4   0.060   $52.71
41083 0.3750 1.250 3.00 4   0.090   $53.70
41084 0.3750 1.250 3.00 4   0.120   $56.69
41085 0.3750 1.250 3.00 4   0.125   $56.69
41086 0.3750 1.500 3.50 4   0.010   $53.23
41087 0.3750 1.500 3.50 4   0.015   $53.76
41088 0.3750 1.500 3.50 4   0.020   $54.29
41089 0.3750 1.500 3.50 4   0.030   $54.82
41090 0.3750 1.500 3.50 4   0.060   $55.87
41091 0.3750 1.500 3.50 4   0.090   $56.92
41092 0.3750 1.500 3.50 4   0.120   $60.09
41093 0.3750 1.500 3.50 4   0.125   $60.09
41094 0.5000 0.625 2.50 4   0.010   $67.08
41095 0.5000 0.625 2.50 4   0.015   $67.73
41096 0.5000 0.625 2.50 4   0.020   $68.40
41097 0.5000 0.625 2.50 4   0.060   $70.39
41098 0.5000 0.625 2.50 4   0.090   $71.72
41099 0.5000 0.625 2.50 4   0.120   $75.71
41100 0.5000 0.625 2.50 4   0.125   $75.71
41101 0.5000 1.000 3.00 4   0.010   $72.10
41102 0.5000 1.000 3.00 4   0.015   $72.82
41103 0.5000 1.000 3.00 4   0.020   $73.53
41104 0.5000 1.000 3.00 4   0.060   $75.67
41105 0.5000 1.000 3.00 4   0.090   $77.10
41106 0.5000 1.000 3.00 4   0.120   $81.39
41107 0.5000 1.000 3.00 4   0.125   $81.39
41108 0.5000 1.250 3.00 4   0.010   $72.97
41109 0.5000 1.250 3.00 4   0.015   $73.69
41110 0.5000 1.250 3.00 4   0.020   $74.41
41111 0.5000 1.250 3.00 4   0.060   $76.59
41112 0.5000 1.250 3.00 4   0.090   $78.03
41113 0.5000 1.250 3.00 4   0.120   $82.36
41114 0.5000 1.250 3.00 4   0.125   $82.36
41115 0.5000 1.625 4.00 4   0.010   $83.19
41116 0.5000 1.625 4.00 4   0.015   $84.01
41117 0.5000 1.625 4.00 4   0.020   $84.83
41118 0.5000 1.625 4.00 4   0.060   $87.30
41119 0.5000 1.625 4.00 4   0.090   $88.94
41120 0.5000 1.625 4.00 4   0.120   $93.89
41121 0.5000 1.625 4.00 4   0.125   $93.89
41122 0.5000 2.000 4.00 4   0.010   $87.34
41123 0.5000 2.000 4.00 4   0.015   $88.20
41124 0.5000 2.000 4.00 4   0.020   $89.07
41125 0.5000 2.000 4.00 4   0.030   $89.94
41126 0.5000 2.000 4.00 4   0.060   $91.67
41127 0.5000 2.000 4.00 4   0.090   $93.40
41128 0.5000 2.000 4.00 4   0.120   $98.58
41129 0.5000 2.000 4.00 4   0.125   $98.58
41130 0.6250 0.750 3.00 4   0.030   $126.39
41131 0.6250 0.750 3.00 4   0.060   $128.82
41132 0.6250 0.750 3.00 4   0.090   $131.25
41133 0.6250 0.750 3.00 4   0.120   $138.54
41134 0.6250 0.750 3.00 4   0.125   $138.54
41135 0.6250 1.250 3.50 4   0.030   $137.86
41136 0.6250 1.250 3.50 4   0.060   $140.51
41137 0.6250 1.250 3.50 4   0.090   $143.16
41138 0.6250 1.250 3.50 4   0.120   $151.12
41139 0.6250 1.250 3.50 4   0.125   $151.12
41140 0.6250 1.625 3.50 4   0.060   $147.54
41141 0.6250 1.625 3.50 4   0.090   $150.33
41142 0.6250 1.625 3.50 4   0.120   $158.68
41143 0.6250 1.625 3.50 4   0.125   $158.68
41144 0.6250 2.125 4.00 4   0.030   $154.89
41145 0.6250 2.125 4.00 4   0.060   $157.87
41146 0.6250 2.125 4.00 4   0.090   $160.86
41147 0.6250 2.125 4.00 4   0.120   $169.79
41148 0.6250 2.125 4.00 4   0.125   $169.79
41149 0.6250 2.500 5.00 4   0.030   $164.18
41150 0.6250 2.500 5.00 4   0.060   $167.34
41151 0.6250 2.500 5.00 4   0.090   $170.50
41152 0.6250 2.500 5.00 4   0.120   $179.98
41153 0.6250 2.500 5.00 4   0.125   $179.98
41154 0.7500 1.000 3.00 4   0.010   $187.85
41155 0.7500 1.000 3.00 4   0.015   $189.72
41156 0.7500 1.000 3.00 4   0.020   $191.57
41157 0.7500 1.000 3.00 4   0.060   $197.16
41158 0.7500 1.000 3.00 4   0.090   $200.88
41159 0.7500 1.000 3.00 4   0.120   $212.03
41160 0.7500 1.000 3.00 4   0.125   $212.03
41161 0.7500 1.000 3.00 4   0.190   $219.47
41162 0.7500 1.000 3.00 4   0.250   $223.19
41163 0.7500 1.625 4.00 4   0.010   $199.13
41164 0.7500 1.625 4.00 4   0.015   $201.10
41165 0.7500 1.625 4.00 4   0.020   $203.07
41166 0.7500 1.625 4.00 4   0.060   $208.99
41167 0.7500 1.625 4.00 4   0.090   $212.93
41168 0.7500 1.625 4.00 4   0.120   $224.76
41169 0.7500 1.625 4.00 4   0.125   $224.76
41170 0.7500 1.625 4.00 4   0.190   $232.65
41171 0.7500 1.625 4.00 4   0.250   $236.59
41172 0.7500 2.250 5.00 4   0.010   $213.07
41173 0.7500 2.250 5.00 4   0.015   $215.18
41174 0.7500 2.250 5.00 4   0.020   $217.29
41175 0.7500 2.250 5.00 4   0.030   $219.40
41176 0.7500 2.250 5.00 4   0.060   $223.62
41177 0.7500 2.250 5.00 4   0.090   $227.84
41178 0.7500 2.250 5.00 4   0.120   $240.49
41179 0.7500 2.250 5.00 4   0.125   $240.49
41180 0.7500 2.250 5.00 4   0.190   $248.93
41181 0.7500 2.250 5.00 4   0.250   $253.15
41182 0.7500 2.750 5.00 4   0.010   $216.91
41183 0.7500 2.750 5.00 4   0.015   $219.05
41184 0.7500 2.750 5.00 4   0.020   $221.20
41185 0.7500 2.750 5.00 4   0.030   $223.34
41186 0.7500 2.750 5.00 4   0.060   $227.64
41187 0.7500 2.750 5.00 4   0.090   $231.94
41188 0.7500 2.750 5.00 4   0.120   $244.82
41189 0.7500 2.750 5.00 4   0.125   $244.82
41190 0.7500 2.750 5.00 4   0.190   $253.41
41191 0.7500 2.750 5.00 4   0.250   $257.71
41192 0.7500 3.250 6.00 4   0.010   $240.76
41193 0.7500 3.250 6.00 4   0.015   $243.14
41194 0.7500 3.250 6.00 4   0.020   $245.53
41195 0.7500 3.250 6.00 4   0.030   $247.91
41196 0.7500 3.250 6.00 4   0.060   $252.68
41197 0.7500 3.250 6.00 4   0.090   $257.45
41198 0.7500 3.250 6.00 4   0.120   $271.75
41199 0.7500 3.250 6.00 4   0.125   $271.75
41200 0.7500 3.250 6.00 4   0.190   $281.28
41201 0.7500 3.250 6.00 4   0.250   $286.05
41202 1.0000 1.250 4.50 4   0.060   $313.63
41203 1.0000 1.250 4.50 4   0.090   $319.56
41204 1.0000 1.250 4.50 4   0.120   $337.31
41205 1.0000 1.250 4.50 4   0.125   $337.31
41206 1.0000 1.250 4.50 4   0.190   $349.14
41207 1.0000 1.250 4.50 4   0.250   $355.06
41208 1.0000 2.000 4.50 4   0.060   $335.60
41209 1.0000 2.000 4.50 4   0.090   $341.92
41210 1.0000 2.000 4.50 4   0.120   $360.92
41211 1.0000 2.000 4.50 4   0.125   $360.92
41212 1.0000 2.000 4.50 4   0.190   $373.59
41213 1.0000 2.000 4.50 4   0.250   $379.91
41214 1.0000 2.625 5.00 4   0.030   $358.89
41215 1.0000 2.625 5.00 4   0.060   $365.80
41216 1.0000 2.625 5.00 4   0.090   $372.70
41217 1.0000 2.625 5.00 4   0.120   $393.40
41218 1.0000 2.625 5.00 4   0.125   $393.40
41219 1.0000 2.625 5.00 4   0.190   $407.21
41220 1.0000 2.625 5.00 4   0.250   $414.11
41221 1.0000 3.250 6.00 4   0.030   $384.02
41222 1.0000 3.250 6.00 4   0.060   $391.41
41223 1.0000 3.250 6.00 4   0.090   $398.78
41224 1.0000 3.250 6.00 4   0.120   $420.94
41225 1.0000 3.250 6.00 4   0.125   $420.94
41226 1.0000 3.250 6.00 4   0.190   $435.71
41227 1.0000 3.250 6.00 4   0.250   $443.09
41228 1.0000 4.250 7.00 4   0.030   $410.90
41229 1.0000 4.250 7.00 4   0.060   $418.80
41230 1.0000 4.250 7.00 4   0.090   $426.70
41231 1.0000 4.250 7.00 4   0.120   $450.40
41232 1.0000 4.250 7.00 4   0.125   $450.40
41233 1.0000 4.250 7.00 4   0.190   $466.21
41234 1.0000 4.250 7.00 4   0.250   $474.12
41235 0.1250 0.250 1.50 4   0.020   $18.40
41236 0.1250 0.500 2.00 4   0.020   $18.96
41237 0.1250 0.750 2.50 4   0.020   $19.72
41238 0.1875 0.313 2.00 4   0.020   $22.21
41239 0.1875 0.563 2.50 4   0.020   $23.77
41240 0.1875 0.750 2.50 4   0.020   $24.95
41241 0.1875 0.313 2.00 4   0.030   $22.43
41242 0.2500 0.375 2.00 4   0.020   $25.95
41243 0.6250 0.750 3.00 4   0.010   $122.75
41244 0.6250 0.750 3.00 4   0.015   $123.96
41245 0.6250 0.750 3.00 4   0.020   $125.18
41246 0.6250 1.000 3.00 4   0.010   $132.56
41247 0.6250 1.000 3.00 4   0.015   $133.88
41248 0.6250 1.000 3.00 4   0.020   $135.19
41249 0.6250 1.000 3.00 4   0.060   $139.13
41250 0.6250 1.000 3.00 4   0.090   $141.75
41251 0.6250 1.000 3.00 4   0.120   $149.63
41252 0.6250 1.000 3.00 4   0.125   $149.63
41253 0.6250 1.250 3.50 4   0.010   $133.89
41254 0.6250 1.250 3.50 4   0.015   $135.21
41255 0.6250 1.250 3.50 4   0.020   $136.54
41256 0.6250 1.625 3.50 4   0.010   $140.59
41257 0.6250 1.625 3.50 4   0.015   $141.98
41258 0.6250 1.625 3.50 4   0.020   $143.37
41259 0.6250 2.125 4.00 4   0.010   $150.42
41260 0.6250 2.125 4.00 4   0.015   $151.91
41261 0.6250 2.125 4.00 4   0.020   $153.40
41262 0.6250 2.500 5.00 4   0.010   $159.45
41263 0.6250 2.500 5.00 4   0.015   $161.02
41264 0.6250 2.500 5.00 4   0.020   $162.60
41265 1.0000 1.250 4.50 4   0.010   $298.85
41266 1.0000 1.250 4.50 4   0.015   $301.80
41267 1.0000 1.250 4.50 4   0.020   $304.76
41268 1.0000 2.000 4.50 4   0.010   $319.76
41269 1.0000 2.000 4.50 4   0.015   $322.93
41270 1.0000 2.000 4.50 4   0.020   $326.10
41271 1.0000 2.625 5.00 4   0.010   $348.54
41272 1.0000 2.625 5.00 4   0.015   $351.99
41273 1.0000 2.625 5.00 4   0.020   $355.44
41274 1.0000 3.250 6.00 4   0.010   $372.94
41275 1.0000 3.250 6.00 4   0.015   $376.63
41276 1.0000 3.250 6.00 4   0.020   $380.33
41277 1.0000 4.250 7.00 4   0.010   $399.05
41278 1.0000 4.250 7.00 4   0.015   $402.99
41279 1.0000 4.250 7.00 4   0.020   $406.94
41280 0.7500 1.000 3.00 4   0.030   $193.44
41281 0.3750 0.750 2.50 4   0.010   $43.46
41282 0.3750 0.750 2.50 4   0.015   $43.89
41283 0.3750 0.750 2.50 4   0.020   $44.32
41284 0.3750 0.750 2.50 4   0.030   $44.75
41285 0.3750 0.750 2.50 4   0.060   $45.61
41286 0.3750 0.750 2.50 4   0.090   $46.47
41287 0.3750 0.750 2.50 4   0.120   $49.06
41288 0.3750 0.750 2.50 4   0.125   $49.06
41289 0.2500 1.000 3.00 4   0.030   $41.75

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
