NXG-4 | 4 Flute Chipbreaker CR End Mill A-ProMAX Coated

NXG-4 | 4 Flute Chipbreaker CR End Mill A-ProMAX Coated

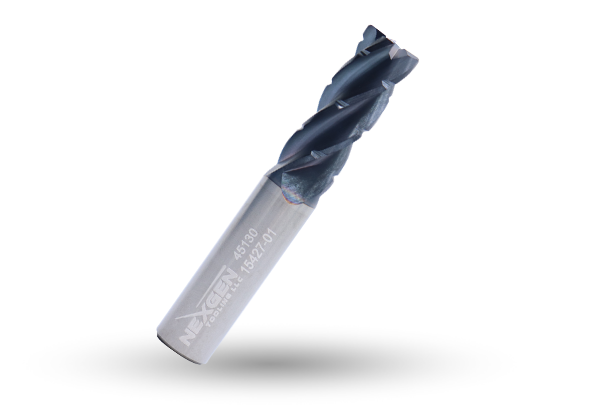

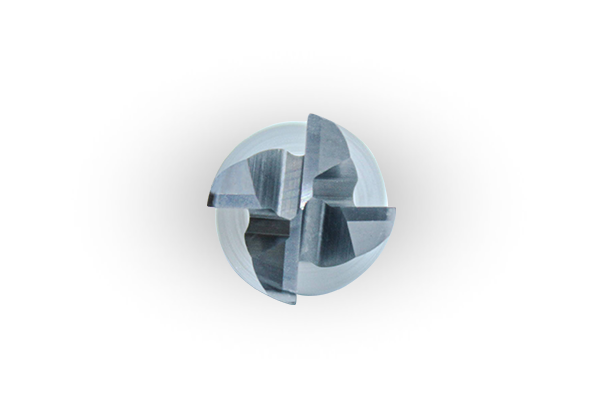

NXG-4 | 4 Flute Chipbreaker CR End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 35 Degree Helix
  • 4-Flut
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
45001 0.1250 0.250 1.50 4   0.010   $20.39
45002 0.1250 0.250 1.50 4   0.015   $20.60
45003 0.1250 0.250 1.50 4   0.020   $20.80
45004 0.1250 0.250 1.50 4   0.030   $21.00
45006 0.1250 0.500 2.00 4   0.010   $21.01
45007 0.1250 0.500 2.00 4   0.015   $21.21
45008 0.1250 0.500 2.00 4   0.020   $21.42
45009 0.1250 0.500 2.00 4   0.030   $21.63
45011 0.1250 0.750 2.50 4   0.010   $21.85
45012 0.1250 0.750 2.50 4   0.015   $22.06
45013 0.1250 0.750 2.50 4   0.020   $22.28
45014 0.1250 0.750 2.50 4   0.030   $22.49
45016 0.1875 0.313 2.00 4   0.010   $24.61
45017 0.1875 0.313 2.00 4   0.015   $24.86
45018 0.1875 0.313 2.00 4   0.020   $25.10
45019 0.1875 0.313 2.00 4   0.030   $25.34
45021 0.1875 0.563 2.50 4   0.010   $26.33
45022 0.1875 0.563 2.50 4   0.015   $26.60
45023 0.1875 0.563 2.50 4   0.020   $26.85
45024 0.1875 0.563 2.50 4   0.030   $27.11
45026 0.1875 0.750 2.50 4   0.010   $27.64
45027 0.1875 0.750 2.50 4   0.015   $27.92
45028 0.1875 0.750 2.50 4   0.020   $28.20
45029 0.1875 0.750 2.50 4   0.030   $28.47
45031 0.2500 0.375 2.00 4   0.010   $28.75
45032 0.2500 0.375 2.00 4   0.015   $29.03
45033 0.2500 0.375 2.00 4   0.020   $29.32
45034 0.2500 0.375 2.00 4   0.030   $29.61
45035 0.2500 0.375 2.00 4   0.060   $30.17
45037 0.2500 0.500 2.50 4   0.010   $31.05
45038 0.2500 0.500 2.50 4   0.015   $31.35
45039 0.2500 0.500 2.50 4   0.020   $31.66
45040 0.2500 0.500 2.50 4   0.030   $31.97
45041 0.2500 0.500 2.50 4   0.060   $32.58
45043 0.2500 0.750 2.50 4   0.010   $31.17
45044 0.2500 0.750 2.50 4   0.015   $31.48
45045 0.2500 0.750 2.50 4   0.020   $31.79
45046 0.2500 0.750 2.50 4   0.030   $32.10
45047 0.2500 0.750 2.50 4   0.060   $32.71
45049 0.2500 1.000 3.00 4   0.010   $45.82
45050 0.2500 1.000 3.00 4   0.015   $46.28
45051 0.2500 1.000 3.00 4   0.020   $46.74
45052 0.2500 1.000 3.00 4   0.030   $47.18
45053 0.2500 1.000 3.00 4   0.060   $48.09
45055 0.2500 1.250 3.00 4   0.010   $46.75
45056 0.2500 1.250 3.00 4   0.015   $47.20
45057 0.2500 1.250 3.00 4   0.020   $47.67
45058 0.2500 1.250 3.00 4   0.030   $48.13
45059 0.2500 1.250 3.00 4   0.060   $49.06
45061 0.3125 0.4375 2.00 4   0.010   $37.33
45062 0.3125 0.4375 2.00 4   0.015   $37.70
45063 0.3125 0.4375 2.00 4   0.020   $38.06
45064 0.3125 0.4375 2.00 4   0.030   $38.44
45065 0.3125 0.4375 2.00 4   0.060   $39.18
45067 0.3125 0.813 2.50 4   0.010   $41.44
45068 0.3125 0.813 2.50 4   0.015   $41.85
45069 0.3125 0.813 2.50 4   0.020   $42.25
45070 0.3125 0.813 2.50 4   0.030   $42.67
45071 0.3125 0.813 2.50 4   0.060   $43.49
45073 0.3750 0.500 2.00 4   0.010   $45.90
45074 0.3750 0.500 2.00 4   0.015   $46.35
45075 0.3750 0.500 2.00 4   0.020   $46.81
45076 0.3750 0.500 2.00 4   0.030   $47.27
45077 0.3750 0.500 2.00 4   0.060   $48.17
45078 0.3750 0.500 2.00 4   0.090   $49.08
45079 0.3750 0.500 2.00 4   0.120   $51.80
45080 0.3750 0.500 2.00 4   0.125   $51.80
45082 0.3750 1.000 3.00 4   0.010   $52.54
45083 0.3750 1.000 3.00 4   0.015   $53.07
45084 0.3750 1.000 3.00 4   0.020   $53.59
45085 0.3750 1.000 3.00 4   0.030   $54.11
45086 0.3750 1.000 3.00 4   0.060   $55.15
45087 0.3750 1.000 3.00 4   0.090   $56.19
45088 0.3750 1.000 3.00 4   0.120   $59.32
45089 0.3750 1.000 3.00 4   0.125   $59.32
45091 0.3750 1.250 3.00 4   0.010   $56.75
45092 0.3750 1.250 3.00 4   0.015   $57.31
45093 0.3750 1.250 3.00 4   0.020   $57.88
45094 0.3750 1.250 3.00 4   0.030   $58.44
45095 0.3750 1.250 3.00 4   0.060   $59.56
45096 0.3750 1.250 3.00 4   0.090   $60.69
45097 0.3750 1.250 3.00 4   0.120   $64.06
45098 0.3750 1.250 3.00 4   0.125   $64.06
45100 0.3750 1.500 3.50 4   0.010   $60.16
45101 0.3750 1.500 3.50 4   0.015   $60.75
45102 0.3750 1.500 3.50 4   0.020   $61.35
45103 0.3750 1.500 3.50 4   0.030   $61.95
45104 0.3750 1.500 3.50 4   0.060   $63.13
45105 0.3750 1.500 3.50 4   0.090   $64.33
45106 0.3750 1.500 3.50 4   0.120   $67.90
45107 0.3750 1.500 3.50 4   0.125   $67.90
45109 0.5000 0.625 2.50 4   0.010   $75.79
45110 0.5000 0.625 2.50 4   0.015   $76.54
45111 0.5000 0.625 2.50 4   0.020   $77.30
45112 0.5000 0.625 2.50 4   0.030   $78.05
45113 0.5000 0.625 2.50 4   0.060   $79.54
45114 0.5000 0.625 2.50 4   0.090   $81.05
45115 0.5000 0.625 2.50 4   0.120   $85.55
45116 0.5000 0.625 2.50 4   0.125   $85.55
45118 0.5000 1.000 3.00 4   0.010   $81.47
45119 0.5000 1.000 3.00 4   0.015   $82.29
45120 0.5000 1.000 3.00 4   0.020   $83.09
45121 0.5000 1.000 3.00 4   0.030   $83.90
45122 0.5000 1.000 3.00 4   0.060   $85.51
45123 0.5000 1.000 3.00 4   0.090   $87.12
45124 0.5000 1.000 3.00 4   0.120   $91.97
45125 0.5000 1.000 3.00 4   0.125   $91.97
45127 0.5000 1.250 3.00 4   0.010   $82.46
45128 0.5000 1.250 3.00 4   0.015   $83.27
45129 0.5000 1.250 3.00 4   0.020   $84.09
45130 0.5000 1.250 3.00 4   0.030   $84.91
45131 0.5000 1.250 3.00 4   0.060   $86.54
45132 0.5000 1.250 3.00 4   0.090   $88.17
45133 0.5000 1.250 3.00 4   0.120   $93.07
45134 0.5000 1.250 3.00 4   0.125   $93.07
45136 0.5000 1.625 4.00 4   0.010   $94.00
45137 0.5000 1.625 4.00 4   0.015   $94.93
45138 0.5000 1.625 4.00 4   0.020   $95.86
45139 0.5000 1.625 4.00 4   0.030   $96.79
45140 0.5000 1.625 4.00 4   0.060   $98.65
45141 0.5000 1.625 4.00 4   0.090   $100.51
45142 0.5000 1.625 4.00 4   0.120   $106.10
45143 0.5000 1.625 4.00 4   0.125   $106.10
45145 0.5000 2.000 4.00 4   0.010   $98.70
45146 0.5000 2.000 4.00 4   0.015   $99.67
45147 0.5000 2.000 4.00 4   0.020   $100.65
45148 0.5000 2.000 4.00 4   0.030   $101.63
45149 0.5000 2.000 4.00 4   0.060   $103.58
45150 0.5000 2.000 4.00 4   0.090   $105.53
45151 0.5000 2.000 4.00 4   0.120   $111.41
45152 0.5000 2.000 4.00 4   0.125   $111.41
45154 0.6250 0.750 3.00 4   0.010   $138.70
45155 0.6250 0.750 3.00 4   0.015   $140.08
45156 0.6250 0.750 3.00 4   0.020   $141.45
45157 0.6250 0.750 3.00 4   0.030   $142.82
45158 0.6250 0.750 3.00 4   0.060   $145.57
45159 0.6250 0.750 3.00 4   0.090   $148.32
45160 0.6250 0.750 3.00 4   0.120   $156.55
45161 0.6250 0.750 3.00 4   0.125   $156.55
45163 0.6250 1.000 3.00 4   0.010   $149.80
45164 0.6250 1.000 3.00 4   0.015   $151.28
45165 0.6250 1.000 3.00 4   0.020   $152.77
45166 0.6250 1.000 3.00 4   0.030   $154.25
45167 0.6250 1.000 3.00 4   0.060   $157.21
45168 0.6250 1.000 3.00 4   0.090   $160.18
45169 0.6250 1.000 3.00 4   0.120   $169.08
45170 0.6250 1.000 3.00 4   0.125   $169.08
45172 0.6250 1.250 3.50 4   0.010   $151.29
45173 0.6250 1.250 3.50 4   0.015   $152.79
45174 0.6250 1.250 3.50 4   0.020   $154.29
45175 0.6250 1.250 3.50 4   0.030   $155.79
45176 0.6250 1.250 3.50 4   0.060   $158.79
45177 0.6250 1.250 3.50 4   0.090   $161.78
45178 0.6250 1.250 3.50 4   0.120   $170.77
45179 0.6250 1.250 3.50 4   0.125   $170.77
45181 0.6250 1.625 3.50 4   0.010   $158.86
45182 0.6250 1.625 3.50 4   0.015   $160.43
45183 0.6250 1.625 3.50 4   0.020   $162.00
45184 0.6250 1.625 3.50 4   0.030   $163.58
45185 0.6250 1.625 3.50 4   0.060   $166.73
45186 0.6250 1.625 3.50 4   0.090   $169.87
45187 0.6250 1.625 3.50 4   0.120   $179.31
45188 0.6250 1.625 3.50 4   0.125   $179.31
45190 0.6250 2.125 4.00 4   0.010   $169.98
45191 0.6250 2.125 4.00 4   0.015   $171.67
45192 0.6250 2.125 4.00 4   0.020   $173.34
45193 0.6250 2.125 4.00 4   0.030   $175.03
45194 0.6250 2.125 4.00 4   0.060   $178.40
45195 0.6250 2.125 4.00 4   0.090   $181.76
45196 0.6250 2.125 4.00 4   0.120   $191.86
45197 0.6250 2.125 4.00 4   0.125   $191.86
45199 0.6250 2.500 5.00 4   0.010   $180.18
45200 0.6250 2.500 5.00 4   0.015   $181.96
45201 0.6250 2.500 5.00 4   0.020   $183.75
45202 0.6250 2.500 5.00 4   0.030   $185.53
45203 0.6250 2.500 5.00 4   0.060   $189.09
45204 0.6250 2.500 5.00 4   0.090   $192.67
45205 0.6250 2.500 5.00 4   0.120   $203.37
45206 0.6250 2.500 5.00 4   0.125   $203.37
45208 0.7500 1.000 3.00 4   0.010   $212.28
45209 0.7500 1.000 3.00 4   0.015   $214.39
45210 0.7500 1.000 3.00 4   0.020   $216.48
45211 0.7500 1.000 3.00 4   0.030   $218.58
45212 0.7500 1.000 3.00 4   0.060   $222.79
45213 0.7500 1.000 3.00 4   0.090   $226.99
45214 0.7500 1.000 3.00 4   0.120   $239.60
45215 0.7500 1.000 3.00 4   0.125   $239.60
45216 0.7500 1.000 3.00 4   0.190   $248.01
45217 0.7500 1.000 3.00 4   0.250   $252.22
45219 0.7500 1.625 4.00 4   0.010   $225.02
45220 0.7500 1.625 4.00 4   0.015   $227.24
45221 0.7500 1.625 4.00 4   0.020   $229.47
45222 0.7500 1.625 4.00 4   0.030   $231.69
45223 0.7500 1.625 4.00 4   0.060   $236.16
45224 0.7500 1.625 4.00 4   0.090   $240.61
45225 0.7500 1.625 4.00 4   0.120   $253.98
45226 0.7500 1.625 4.00 4   0.125   $253.98
45227 0.7500 1.625 4.00 4   0.190   $262.89
45228 0.7500 1.625 4.00 4   0.250   $267.34
45230 0.7500 2.250 5.00 4   0.010   $240.77
45231 0.7500 2.250 5.00 4   0.015   $243.15
45232 0.7500 2.250 5.00 4   0.020   $245.54
45233 0.7500 2.250 5.00 4   0.030   $247.91
45234 0.7500 2.250 5.00 4   0.060   $252.68
45235 0.7500 2.250 5.00 4   0.090   $257.45
45236 0.7500 2.250 5.00 4   0.120   $271.75
45237 0.7500 2.250 5.00 4   0.125   $271.75
45238 0.7500 2.250 5.00 4   0.190   $281.29
45239 0.7500 2.250 5.00 4   0.250   $286.06
45241 0.7500 2.750 5.00 4   0.010   $245.10
45242 0.7500 2.750 5.00 4   0.015   $247.53
45243 0.7500 2.750 5.00 4   0.020   $249.95
45244 0.7500 2.750 5.00 4   0.030   $252.38
45245 0.7500 2.750 5.00 4   0.060   $257.23
45246 0.7500 2.750 5.00 4   0.090   $262.09
45247 0.7500 2.750 5.00 4   0.120   $276.65
45248 0.7500 2.750 5.00 4   0.125   $276.65
45249 0.7500 2.750 5.00 4   0.190   $286.36
45250 0.7500 2.750 5.00 4   0.250   $291.20
45252 0.7500 3.250 6.00 4   0.010   $272.06
45253 0.7500 3.250 6.00 4   0.015   $274.75
45254 0.7500 3.250 6.00 4   0.020   $277.44
45255 0.7500 3.250 6.00 4   0.030   $280.14
45256 0.7500 3.250 6.00 4   0.060   $285.53
45257 0.7500 3.250 6.00 4   0.090   $290.92
45258 0.7500 3.250 6.00 4   0.120   $307.08
45259 0.7500 3.250 6.00 4   0.125   $307.08
45260 0.7500 3.250 6.00 4   0.190   $317.85
45261 0.7500 3.250 6.00 4   0.250   $323.24
45263 1.0000 1.250 4.50 4   0.010   $337.69
45264 1.0000 1.250 4.50 4   0.015   $341.03
45265 1.0000 1.250 4.50 4   0.020   $344.38
45266 1.0000 1.250 4.50 4   0.030   $347.72
45267 1.0000 1.250 4.50 4   0.060   $354.41
45268 1.0000 1.250 4.50 4   0.090   $361.10
45269 1.0000 1.250 4.50 4   0.120   $381.15
45270 1.0000 1.250 4.50 4   0.125   $381.15
45271 1.0000 1.250 4.50 4   0.190   $394.53
45272 1.0000 1.250 4.50 4   0.250   $401.22
45274 1.0000 2.000 4.50 4   0.010   $361.33
45275 1.0000 2.000 4.50 4   0.015   $364.91
45276 1.0000 2.000 4.50 4   0.020   $368.49
45277 1.0000 2.000 4.50 4   0.030   $372.06
45278 1.0000 2.000 4.50 4   0.060   $379.22
45279 1.0000 2.000 4.50 4   0.090   $386.37
45280 1.0000 2.000 4.50 4   0.120   $407.84
45281 1.0000 2.000 4.50 4   0.125   $407.84
45282 1.0000 2.000 4.50 4   0.190   $422.15
45283 1.0000 2.000 4.50 4   0.250   $429.30
45285 1.0000 2.625 5.00 4   0.010   $393.85
45286 1.0000 2.625 5.00 4   0.015   $397.75
45287 1.0000 2.625 5.00 4   0.020   $401.64
45288 1.0000 2.625 5.00 4   0.030   $405.55
45289 1.0000 2.625 5.00 4   0.060   $413.35
45290 1.0000 2.625 5.00 4   0.090   $421.15
45291 1.0000 2.625 5.00 4   0.120   $444.54
45292 1.0000 2.625 5.00 4   0.125   $444.54
45293 1.0000 2.625 5.00 4   0.190   $460.15
45294 1.0000 2.625 5.00 4   0.250   $467.94
45296 1.0000 3.250 6.00 4   0.010   $421.42
45297 1.0000 3.250 6.00 4   0.015   $425.59
45298 1.0000 3.250 6.00 4   0.020   $429.77
45299 1.0000 3.250 6.00 4   0.030   $433.94
45300 1.0000 3.250 6.00 4   0.060   $442.29
45301 1.0000 3.250 6.00 4   0.090   $450.63
45302 1.0000 3.250 6.00 4   0.120   $475.66
45303 1.0000 3.250 6.00 4   0.125   $475.66
45304 1.0000 3.250 6.00 4   0.190   $492.35
45305 1.0000 3.250 6.00 4   0.250   $500.70
45307 1.0000 4.250 7.00 4   0.010   $450.92
45308 1.0000 4.250 7.00 4   0.015   $455.39
45309 1.0000 4.250 7.00 4   0.020   $459.85
45310 1.0000 4.250 7.00 4   0.030   $464.31
45311 1.0000 4.250 7.00 4   0.060   $473.25
45312 1.0000 4.250 7.00 4   0.090   $482.17
45313 1.0000 4.250 7.00 4   0.120   $508.96
45314 1.0000 4.250 7.00 4   0.125   $508.96
45315 1.0000 4.250 7.00 4   0.190   $526.82
45316 1.0000 4.250 7.00 4   0.250   $535.75
45318 0.3750 0.750 2.50 4   0.010   $49.11
45319 0.3750 0.750 2.50 4   0.015   $49.60
45320 0.3750 0.750 2.50 4   0.020   $50.09
45321 0.3750 0.750 2.50 4   0.030   $50.57
45322 0.3750 0.750 2.50 4   0.060   $51.54
45323 0.3750 0.750 2.50 4   0.090   $52.51
45324 0.3750 0.750 2.50 4   0.120   $55.43
45325 0.3750 0.750 2.50 4   0.125   $55.43

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
