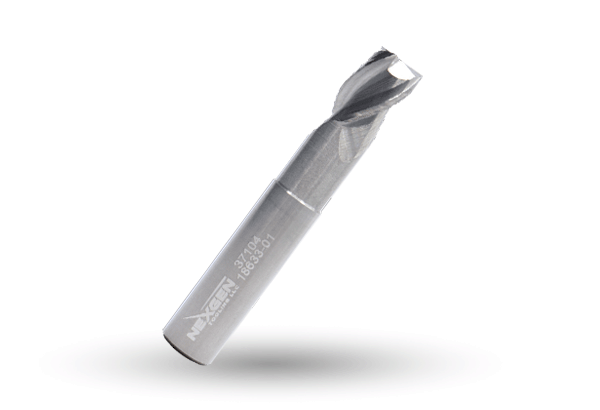

3 Flute Variable index Square End Mill Uncoated

3 Flute Variable index Square End Mill Uncoated

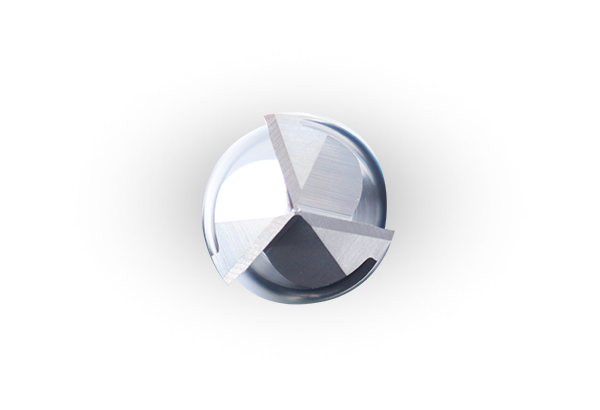

3 Flute Variable index Square End Mill Uncoated - Image 2

Downloads

End Mills Selection Guide End Mills Selection
Speed and Feed Data Speed and Feed Data
Depth of Cut Guidelines Depth of Cut Guidelines
Weldon Flat Specifications Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
39000 0.125 0.250 1.50 3       $21.04
39005 0.125 0.5 2.00 3       $24.19
39010 0.125 0.75 2.5 3       $24.66
39015 0.1875 0.3125 2.00 3       $24.39
39020 0.1875 0.5625 2.5 3       $26.94
39025 0.1875 0.75 2.5 3       $29.10
39030 0.25 0.375 2.00 3       $30.01
39036 0.25 0.5 2.5 3       $31.51
39042 0.25 0.75 2.5 3       $33.10
39048 0.25 1 3 3       $36.07
39054 0.25 1.25 3 3       $37.88
39060 0.3125 0.4375 2.00 3       $34.47
39066 0.3125 0.8125 2.5 3       $39.30
39072 0.3125 1.25 3 3       $46.37
39078 0.375 0.5 2.00 3       $41.06
39087 0.375 0.75 2.5 3       $43.93
39096 0.375 1 3 3       $46.39
39105 0.375 1.25 3 3       $47.51
39114 0.375 1.500 3.50 3       $52.75
39123 0.5 0.625 2.5 3       $61.92
39132 0.5 1 3 3       $65.01
39141 0.5 1.25 3 3       $68.90
39150 0.5 1.625 4 3       $82.70
39159 0.5 2.000 4 3       $91.79
39168 0.5 2.500 5 3       $110.14
39177 0.625 0.75 3 3       $121.50
39186 0.625 1.25 3.50 3       $128.81
39195 0.625 1.625 3.50 3       $136.53
39204 0.625 2.125 4 3       $150.18
39213 0.625 2.500 5 3       $165.20
39222 0.75 1 3 3       $218.70
39233 0.75 1.625 4 3       $234.00
39244 0.75 2.250 5 3       $323.22
39255 0.75 2.750 5 3       $362.00
39266 0.75 3.250 6 3       $365.62
39277 1 1.25 4.50 3       $421.16
39288 1 2.000 4.50 3       $459.07
39299 1 2.625 5 3       $537.12
39310 1 3.250 6 3       $590.84
39321 1 3.250 7 3       $709.00
