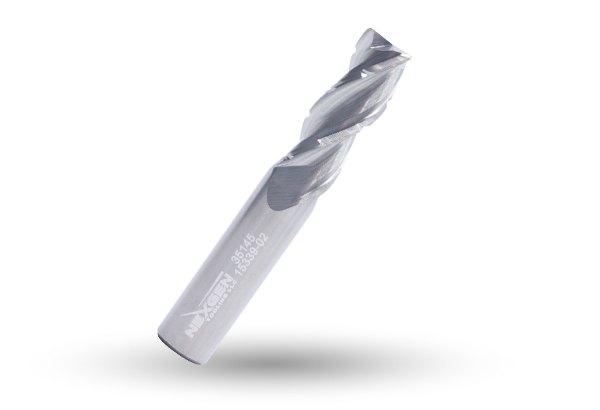

3 Flute Chipbreaker Square End Mill Uncoated

|
Tool Tolerances
  • Cut Diameter: Non-Ferrous: h6
  • Ferrous: +.000/-.002
  • Shank Diameter: h6
  • Length of Cut: +.032/-.000
  • Overall Length: +/- .050
  • Corner Radius: +/- .002
Make a Selection

Properties

• Tool Dimensions

Cut Diameter

Shank Diameter

LOC

OAL

• End Construction

Radius Dimensions

• Pricing and Availability

Price

In Stock

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
35000 0.1250 0.250 1.50 3     $18.21
35005 0.1250 0.500 2.00 3     $20.94
35010 0.1250 0.750 2.50 3     $21.36
35015 0.1875 0.313 2.00 3     $21.12
35020 0.1875 0.563 2.50 3     $23.32
35025 0.1875 0.750 2.50 3     $25.19
35030 0.2500 0.375 2.00 3     $25.98
35036 0.2500 0.500 2.50 3     $27.28
35042 0.2500 0.750 2.50 3     $28.65
35048 0.2500 1.000 3.00 3     $31.23
35054 0.2500 1.250 3.00 3     $32.79
35060 0.3125 0.4375 2.00 3     $28.80
35066 0.3125 0.813 2.50 3     $32.83
35072 0.3125 1.250 3.00 3     $38.74
35078 0.3750 0.500 2.00 3     $34.31
35087 0.3750 0.750 2.50 3     $36.71
35096 0.3750 1.000 3.00 3     $38.75
35105 0.3750 1.250 3.00 3     $39.71
35114 0.3750 1.500 3.50 3     $44.07
35123 0.5000 0.625 2.50 3     $51.28
35132 0.5000 1.000 3.00 3     $53.85
35141 0.5000 1.250 3.00 3     $57.08
35150 0.5000 1.625 4.00 3     $68.50
35159 0.5000 2.000 4.00 3     $76.03
35168 0.5000 2.500 5.00 3     $91.23
35177 0.6250 0.750 3.00 3     $99.80
35186 0.6250 1.250 3.50 3     $105.78
35195 0.6250 1.625 3.50 3     $112.13
35204 0.6250 2.125 4.00 3     $123.34
35213 0.6250 2.500 5.00 3     $135.68
35222 0.7500 1.000 3.00 3     $160.36
35233 0.7500 1.625 4.00 3     $171.58
35244 0.7500 2.250 5.00 3     $204.19
35255 0.7500 2.750 5.00 3     $228.68
35266 0.7500 3.250 6.00 3     $230.97
35277 1.0000 1.250 4.50 3     $259.42
35288 1.0000 2.000 4.50 3     $282.77
35299 1.0000 2.625 5.00 3     $330.84
35310 1.0000 3.250 6.00 3     $363.92
35321 1.0000 4.250 7.00 3     $436.71
*Low stock items are restocked in 3-5 days

Applications

RECOMMENDED APPLICATIONS

FULL SLOTTING

HEAVY ROUGHING

LIGHT ROUGHING

POCKETING

RAMPING
