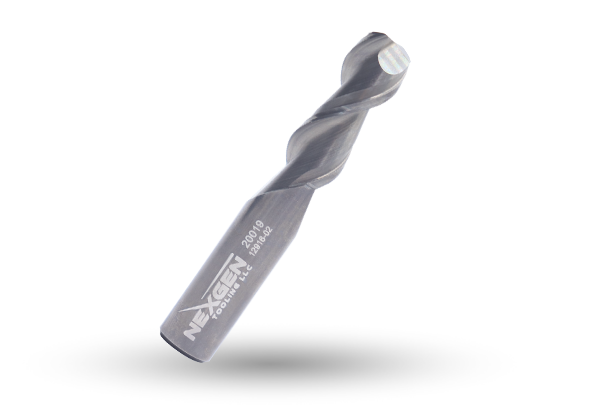

2 Flute Square End Mill Uncoated

2 Flute Square End Mill Uncoated

Overview

Premium high performance carbide end mill for Non-Ferrous materials.

Polished flutes resist Built Up Edge (BUE) in Aluminum and Copper Alloys.

Features & Benefits

  • 45 Degree Helix
  • 2-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Micrograin Carbide
FULL SLOTTING
HEAVY ROUGHING
FINISHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
h6 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
20001 0.125 0.250 1.50 2       $19.03
20003 0.125 0.5 2.00 2       $21.89
20005 0.1875 0.3125 2.5 2       $22.86
20007 0.1875 0.5625 2.5 2       $25.14
20009 0.25 0.5 2.00 2       $28.24
20011 0.25 0.75 2.5 2       $29.10
20013 0.375 0.5 2.00 2       $39.54
20015 0.375 1 2.5 2       $40.82
20017 0.5 0.625 2.5 2       $56.02
20019 0.5 1.25 3 2       $61.46
20021 0.5 1.625 4 2       $74.37
20023 0.75 1 4 2       $176.67
20025 0.75 1.625 4 2       $190.80
20027 1 1.25 4.50 2       $293.12
20029 1 2.000 5 2       $322.43
20031 0.125 0.75 2.5 2       $22.32
20033 0.1875 0.75 2.5 2       $26.33
20035 0.25 0.375 2.00 2       $27.16
20037 0.25 1 3 2       $32.00
20039 0.25 1.25 3 2       $33.29
20041 0.375 1.25 3 2       $43.27
20043 0.375 1.500 3.50 2       $47.59
20045 0.5 1 3 2       $58.82
20047 0.5 2.000 4 2       $83.29
20049 0.625 0.75 3 2       $109.94
20051 0.625 1.25 3.50 2       $117.08
20053 0.625 1.625 3.50 2       $122.94
20055 0.625 2.125 4 2       $135.24
20057 0.625 2.500 5 2       $148.75
20059 0.75 2.250 5 2       $228.95
20061 0.75 2.750 5 2       $254.14
20063 0.75 3.250 6 2       $256.68
20065 1 2.625 5 2       $374.02
20067 1 3.250 6 2       $411.42
20069 1 4.250 7 2       $489.59
