7 Flute End Mill A-ProMAX Coated

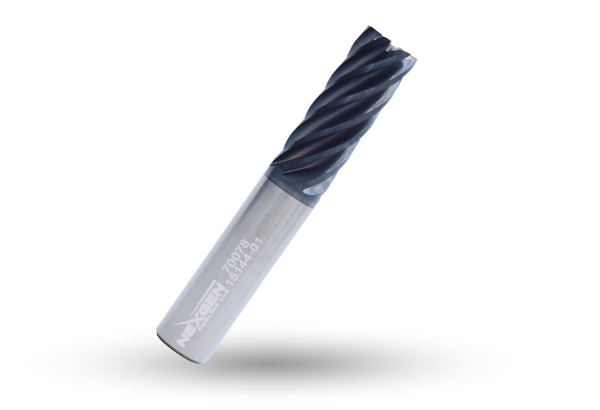

7 Flute End Mill A-ProMAX Coated

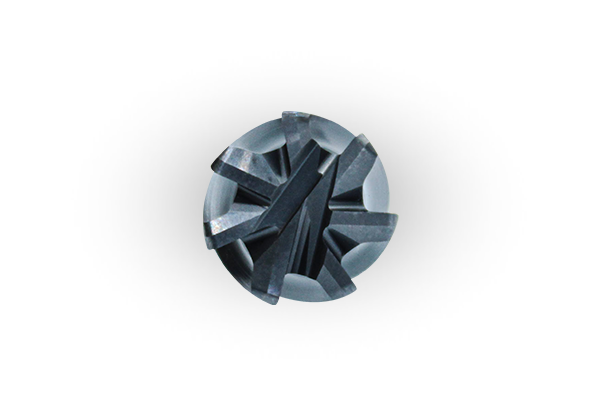

7 Flute End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 7-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 37 Degree Helix
  • 7-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
HEM
COUNTURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
70001 0.5 0.625 2.5 7   0.03   $95.68
70002 0.5 1.25 3 7   0.03   $102.07
70003 0.5 2.000 4 7   0.03   $123.28
70004 0.75 1 4 7   0.03   $286.88
70005 0.75 1.625 4 7   0.03   $276.83
70006 1 1.25 4.50 7   0.03   $443.19
70007 1 2.000 4.50 7   0.03   $469.62
70008 1 4.250 7 7   0.03   $586.05
70009 0.5 1.25 3 7   0.06   $104.04
70011 0.25 0.375 2.00 7   0.01   $34.57
70012 0.25 0.375 2.00 7   0.015   $34.91
70013 0.25 0.375 2.00 7   0.020   $35.25
70014 0.25 0.375 2.00 7   0.03   $35.59
70015 0.25 0.375 2.00 7   0.06   $36.28
70017 0.25 0.5 2.5 7   0.01   $37.33
70018 0.25 0.5 2.5 7   0.015   $37.70
70019 0.25 0.5 2.5 7   0.020   $37.81
70020 0.25 0.5 2.5 7   0.03   $38.44
70021 0.25 0.5 2.5 7   0.06   $39.18
70023 0.25 0.75 2.5 7   0.01   $37.73
70024 0.25 0.75 2.5 7   0.015   $38.11
70025 0.25 0.75 2.5 7   0.020   $38.48
70026 0.25 0.75 2.5 7   0.03   $38.85
70027 0.25 0.75 2.5 7   0.06   $40.86
70029 0.25 1 3 7   0.01   $55.08
70030 0.25 1 3 7   0.015   $55.64
70031 0.25 1 3 7   0.020   $56.18
70032 0.25 1 3 7   0.03   $56.73
70033 0.25 1 3 7   0.06   $57.81
70035 0.25 1.25 3 7   0.01   $56.19
70036 0.25 1.25 3 7   0.015   $56.74
70037 0.25 1.25 3 7   0.020   $57.31
70038 0.25 1.25 3 7   0.03   $57.86
70039 0.25 1.25 3 7   0.06   $58.97
70041 0.375 0.5 2.00 7   0.01   $59.99
70042 0.375 0.5 2.00 7   0.015   $60.58
70043 0.375 0.5 2.00 7   0.020   $61.18
70044 0.375 0.5 2.00 7   0.03   $61.77
70045 0.375 0.5 2.00 7   0.06   $62.95
70047 0.375 1 3 7   0.01   $65.45
70048 0.375 1 3 7   0.015   $66.09
70049 0.375 1 3 7   0.020   $66.75
70050 0.375 1 3 7   0.03   $67.39
70051 0.375 1 3 7   0.06   $68.69
70053 0.375 1.25 3 7   0.01   $70.68
70054 0.375 1.25 3 7   0.015   $71.39
70055 0.375 1.25 3 7   0.020   $72.09
70056 0.375 1.25 3 7   0.03   $72.78
70057 0.375 1.25 3 7   0.06   $74.19
70059 0.375 1.500 3.50 7   0.01   $73.85
70060 0.375 1.500 3.50 7   0.015   $74.57
70061 0.375 1.500 3.50 7   0.020   $75.31
70062 0.375 1.500 3.50 7   0.03   $76.03
70063 0.375 1.500 3.50 7   0.06   $77.49
70065 0.5 0.625 2.5 7   0.01   $92.93
70066 0.5 0.625 2.5 7   0.015   $93.85
70067 0.5 0.625 2.5 7   0.020   $94.76
70068 0.5 0.625 2.5 7   0.06   $97.53
70069 0.5 0.625 2.5 7   0.09   $99.36
70071 0.5 1 3 7   0.01   $99.68
70072 0.5 1 3 7   0.015   $100.39
70073 0.5 1 3 7   0.020   $100.49
70074 0.5 1 3 7   0.03   $100.99
70075 0.5 1 3 7   0.06   $104.33
70076 0.5 1 3 7   0.09   $106.30
70078 0.5 1.25 3 7   0.01   $99.13
70079 0.5 1.25 3 7   0.015   $100.12
70080 0.5 1.25 3 7   0.020   $101.10
70081 0.5 1.25 3 7   0.09   $106.00
70083 0.5 1.625 4 7   0.01   $112.90
70084 0.5 1.625 4 7   0.015   $114.01
70085 0.5 1.625 4 7   0.020   $115.13
70086 0.5 1.625 4 7   0.03   $116.25
70087 0.5 1.625 4 7   0.06   $118.49
70088 0.5 1.625 4 7   0.09   $120.72
70090 0.5 2.000 4 7   0.01   $119.73
70091 0.5 2.000 4 7   0.015   $120.91
70092 0.5 2.000 4 7   0.020   $122.10
70093 0.5 2.000 4 7   0.06   $125.65
70094 0.5 2.000 4 7   0.09   $128.02
70096 0.625 0.75 3 7   0.03   $180.98
70097 0.625 0.75 3 7   0.06   $184.46
70098 0.625 0.75 3 7   0.09   $187.93
70100 0.625 1.25 3.50 7   0.03   $191.71
70101 0.625 1.25 3.50 7   0.06   $195.41
70102 0.625 1.25 3.50 7   0.09   $199.09
70104 0.625 1.625 3.50 7   0.03   $203.28
70105 0.625 1.625 3.50 7   0.06   $207.19
70106 0.625 1.625 3.50 7   0.09   $211.10
70108 0.625 2.125 4 7   0.03   $223.94
70109 0.625 2.125 4 7   0.06   $228.26
70110 0.625 2.125 4 7   0.09   $232.56
70112 0.625 2.500 5 7   0.03   $231.69
70113 0.625 2.500 5 7   0.06   $236.15
70114 0.625 2.500 5 7   0.09   $240.61
70116 0.75 1 3 7   0.01   $256.14
70117 0.75 1 3 7   0.015   $258.68
70118 0.75 1 3 7   0.020   $261.21
70119 0.75 1 3 7   0.06   $268.82
70120 0.75 1 3 7   0.09   $273.89
70121 0.75 1 3 7   0.120   $289.11
70122 0.75 1 3 7   0.125   $289.11
70133 0.75 1.625 4 7   0.01   $268.85
70134 0.75 1.625 4 7   0.015   $271.51
70135 0.75 1.625 4 7   0.020   $274.17
70136 0.75 1.625 4 7   0.06   $282.15
70137 0.75 1.625 4 7   0.09   $287.47
70138 0.75 1.625 4 7   0.120   $303.45
70139 0.75 1.625 4 7   0.125   $303.45
70141 0.75 2.250 5 7   0.01   $304.49
70142 0.75 2.250 5 7   0.015   $307.50
70143 0.75 2.250 5 7   0.020   $310.52
70144 0.75 2.250 5 7   0.03   $313.53
70145 0.75 2.250 5 7   0.06   $319.56
70146 0.75 2.250 5 7   0.09   $325.59
70147 0.75 2.250 5 7   0.120   $343.67
70148 0.75 2.250 5 7   0.125   $343.67
70150 0.75 2.750 5 7   0.01   $301.63
70151 0.75 2.750 5 7   0.015   $304.61
70152 0.75 2.750 5 7   0.020   $307.60
70153 0.75 2.750 5 7   0.03   $310.59
70154 0.75 2.750 5 7   0.06   $316.56
70155 0.75 2.750 5 7   0.09   $322.53
70156 0.75 2.750 5 7   0.120   $340.45
70157 0.75 2.750 5 7   0.125   $340.45
70159 0.75 3.250 6 7   0.01   $334.81
70160 0.75 3.250 6 7   0.015   $338.12
70161 0.75 3.250 6 7   0.020   $341.44
70162 0.75 3.250 6 7   0.03   $344.76
70163 0.75 3.250 6 7   0.06   $351.38
70164 0.75 3.250 6 7   0.09   $358.01
70165 0.75 3.250 6 7   0.120   $377.90
70166 0.75 3.250 6 7   0.125   $377.90
70168 1 1.25 4.50 7   0.06   $451.71
70169 1 1.25 4.50 7   0.09   $460.24
70170 1 1.25 4.50 7   0.120   $485.80
70171 1 1.25 4.50 7   0.125   $485.80
70172 1 1.25 4.50 7   0.19   $502.86
70173 1 1.25 4.50 7   0.25   $511.37
70175 1 2.000 4.50 7   0.06   $478.64
70176 1 2.000 4.50 7   0.09   $487.67
70177 1 2.000 4.50 7   0.120   $514.77
70178 1 2.000 4.50 7   0.125   $514.77
70179 1 2.000 4.50 7   0.19   $532.83
70180 1 2.000 4.50 7   0.25   $541.86
70182 1 2.625 5 7   0.03   $511.87
70183 1 2.625 5 7   0.06   $521.72
70184 1 2.625 5 7   0.09   $531.56
70185 1 2.625 5 7   0.120   $561.09
70186 1 2.625 5 7   0.125   $561.09
70187 1 2.625 5 7   0.19   $580.78
70188 1 2.625 5 7   0.25   $590.63
70190 1 3.250 6 7   0.03   $547.70
70191 1 3.250 6 7   0.06   $558.25
70192 1 3.250 6 7   0.09   $568.77
70193 1 3.250 6 7   0.120   $600.37
70194 1 3.250 6 7   0.125   $600.37
70195 1 3.250 6 7   0.19   $621.44
70196 1 3.250 6 7   0.25   $631.97
70198 1 4.250 7 7   0.06   $597.32
70199 1 4.250 7 7   0.09   $608.59
70200 1 4.250 7 7   0.120   $642.40
70201 1 4.250 7 7   0.125   $642.40
70202 1 4.250 7 7   0.19   $664.94
70203 1 4.250 7 7   0.25   $676.21
70204 0.5 1.25 3 7   0.120   $111.89
70205 0.5 1.25 3 7   0.125   $111.89
70206 0.5 0.625 2.5 7   0.120   $104.88
70207 0.5 0.625 2.5 7   0.125   $104.88
70208 0.5 1 3 7   0.120   $112.21
70209 0.5 1 3 7   0.125   $112.21
70210 0.5 1.625 4 7   0.120   $127.43
70211 0.5 1.625 4 7   0.125   $127.43
70212 0.5 2.000 4 7   0.120   $135.14
70213 0.5 2.000 4 7   0.125   $135.14
70214 0.625 0.75 3 7   0.01   $175.75
70215 0.625 0.75 3 7   0.015   $177.50
70216 0.625 0.75 3 7   0.020   $179.24
70217 0.625 0.75 3 7   0.120   $198.38
70218 0.625 0.75 3 7   0.125   $198.38
70219 0.625 1.25 3.50 7   0.01   $186.18
70220 0.625 1.25 3.50 7   0.015   $188.03
70221 0.625 1.25 3.50 7   0.020   $189.88
70222 0.625 1.25 3.50 7   0.120   $210.15
70223 0.625 1.25 3.50 7   0.125   $210.15
70224 0.625 1.625 3.50 7   0.01   $197.42
70225 0.625 1.625 3.50 7   0.015   $199.37
70226 0.625 1.625 3.50 7   0.020   $201.33
70227 0.625 1.625 3.50 7   0.120   $222.83
70228 0.625 1.625 3.50 7   0.125   $222.83
70229 0.625 2.125 4 7   0.01   $217.48
70230 0.625 2.125 4 7   0.015   $219.63
70231 0.625 2.125 4 7   0.020   $221.79
70232 0.625 2.125 4 7   0.120   $245.48
70233 0.625 2.125 4 7   0.125   $245.48
70234 0.625 2.500 5 7   0.01   $225.01
70235 0.625 2.500 5 7   0.015   $227.23
70236 0.625 2.500 5 7   0.020   $229.47
70237 0.625 2.500 5 7   0.120   $253.97
70238 0.625 2.500 5 7   0.125   $253.97
70239 1 1.25 4.50 7   0.01   $430.41
70240 1 1.25 4.50 7   0.015   $434.67
70241 1 1.25 4.50 7   0.020   $438.93
70242 1 2.000 4.50 7   0.01   $456.07
70243 1 2.000 4.50 7   0.015   $460.59
70244 1 2.000 4.50 7   0.020   $465.10
70245 1 2.625 5 7   0.01   $497.11
70246 1 2.625 5 7   0.015   $502.03
70247 1 2.625 5 7   0.020   $506.96
70248 1 3.250 6 7   0.01   $531.90
70249 1 3.250 6 7   0.015   $537.17
70250 1 3.250 6 7   0.020   $542.45
70251 1 4.250 7 7   0.01   $569.14
70252 1 4.250 7 7   0.015   $574.77
70253 1 4.250 7 7   0.020   $580.41
70254 0.75 1 3 7   0.03   $263.75
70256 0.375 0.75 2.5 7   0.01   $60.88
70257 0.375 0.75 2.5 7   0.015   $61.48
70258 0.375 0.75 2.5 7   0.020   $62.08
70259 0.375 0.75 2.5 7   0.03   $62.68
70260 0.375 0.75 2.5 7   0.06   $63.88
