7 Flute Chipbreaker Square End Mill A-ProMAX Coated

7 Flute Chipbreaker Square End Mill A-ProMAX Coated

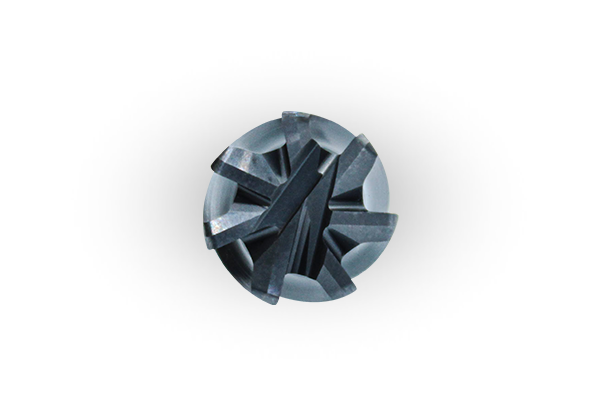

7 Flute Chipbreaker Square End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 37 Degree Helix
  • 7-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
75000 0.25 0.375 2.00 7       $38.66
75006 0.25 0.5 2.5 7       $41.76
75012 0.25 0.75 2.5 7       $42.21
75018 0.25 1 3 7       $61.63
75024 0.25 1.25 3 7       $62.87
75030 0.375 0.5 2.00 7       $67.12
75036 0.375 1 3 7       $73.22
75042 0.375 1.25 3 7       $79.09
75048 0.375 1.500 3.50 7       $82.61
75054 0.5 0.625 2.5 7       $103.97
75063 0.5 1 3 7       $111.22
75072 0.5 1.25 3 7       $110.90
75081 0.5 1.625 4 7       $126.31
75090 0.5 2.000 4 7       $133.96
75099 0.625 0.75 3 7       $196.64
75108 0.625 1.25 3.50 7       $208.31
75117 0.625 1.625 3.50 7       $220.87
75126 0.625 2.125 4 7       $243.33
75135 0.625 2.500 5 7       $251.75
75144 0.75 1 3 7       $286.57
75153 0.75 1.625 4 7       $300.79
75162 0.75 2.250 5 7       $340.66
75171 0.75 2.750 5 7       $337.46
75180 0.75 3.250 6 7       $374.58
75189 1 1.25 4.50 7       $481.54
75200 1 2.000 4.50 7       $510.25
75211 1 2.625 5 7       $556.18
75222 1 3.250 6 7       $595.10
75233 1 4.250 7 7       $636.76
75244 0.375 0.75 2.5 7       $68.10
