7 Flute Chipbreaker End Mill A-ProMAX Coated

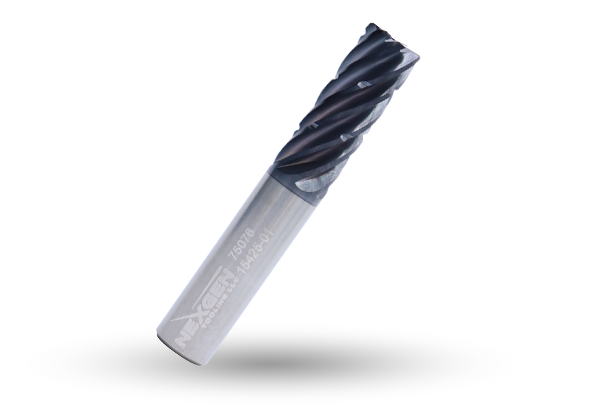

7 Flute Chipbreaker End Mill A-ProMAX Coated
7 Flute Chipbreaker End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 7-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 37 Degree Helix
  • 7-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
75001 0.25 0.375 2.00 7   0.01   $39.06
75002 0.25 0.375 2.00 7   0.015   $39.44
75003 0.25 0.375 2.00 7   0.020   $39.82
75004 0.25 0.375 2.00 7   0.03   $40.22
75005 0.25 0.375 2.00 7   0.06   $40.98
75007 0.25 0.5 2.5 7   0.01   $42.18
75008 0.25 0.5 2.5 7   0.015   $42.59
75009 0.25 0.5 2.5 7   0.020   $42.72
75010 0.25 0.5 2.5 7   0.03   $43.43
75011 0.25 0.5 2.5 7   0.06   $44.26
75013 0.25 0.75 2.5 7   0.01   $42.63
75014 0.25 0.75 2.5 7   0.015   $43.05
75015 0.25 0.75 2.5 7   0.020   $43.49
75016 0.25 0.75 2.5 7   0.03   $43.91
75017 0.25 0.75 2.5 7   0.06   $46.18
75019 0.25 1 3 7   0.01   $62.25
75020 0.25 1 3 7   0.015   $62.87
75021 0.25 1 3 7   0.020   $63.48
75022 0.25 1 3 7   0.03   $64.10
75023 0.25 1 3 7   0.06   $65.34
75025 0.25 1.25 3 7   0.01   $63.49
75026 0.25 1.25 3 7   0.015   $64.12
75027 0.25 1.25 3 7   0.020   $64.76
75028 0.25 1.25 3 7   0.03   $65.39
75029 0.25 1.25 3 7   0.06   $66.64
75031 0.375 0.5 2.00 7   0.01   $67.79
75032 0.375 0.5 2.00 7   0.015   $68.46
75033 0.375 0.5 2.00 7   0.020   $69.12
75034 0.375 0.5 2.00 7   0.03   $69.79
75035 0.375 0.5 2.00 7   0.06   $71.14
75037 0.375 1 3 7   0.01   $73.96
75038 0.375 1 3 7   0.015   $74.69
75039 0.375 1 3 7   0.020   $75.43
75040 0.375 1 3 7   0.03   $76.16
75041 0.375 1 3 7   0.06   $77.62
75043 0.375 1.25 3 7   0.01   $79.87
75044 0.375 1.25 3 7   0.015   $80.66
75045 0.375 1.25 3 7   0.020   $81.45
75046 0.375 1.25 3 7   0.03   $82.24
75047 0.375 1.25 3 7   0.06   $83.83
75049 0.375 1.500 3.50 7   0.01   $83.45
75050 0.375 1.500 3.50 7   0.015   $84.27
75051 0.375 1.500 3.50 7   0.020   $85.10
75052 0.375 1.500 3.50 7   0.03   $85.92
75053 0.375 1.500 3.50 7   0.06   $87.57
75055 0.5 0.625 2.5 7   0.01   $105.01
75056 0.5 0.625 2.5 7   0.015   $106.05
75057 0.5 0.625 2.5 7   0.020   $107.09
75058 0.5 0.625 2.5 7   0.03   $108.13
75059 0.5 0.625 2.5 7   0.06   $110.21
75060 0.5 0.625 2.5 7   0.09   $112.29
75061 0.5 0.625 2.5 7   0.120   $118.52
75062 0.5 0.625 2.5 7   0.125   $118.52
75064 0.5 1 3 7   0.01   $112.64
75065 0.5 1 3 7   0.015   $113.45
75066 0.5 1 3 7   0.020   $113.56
75067 0.5 1 3 7   0.03   $114.11
75068 0.5 1 3 7   0.06   $117.90
75069 0.5 1 3 7   0.09   $120.12
75070 0.5 1 3 7   0.120   $126.79
75071 0.5 1 3 7   0.125   $126.79
75073 0.5 1.25 3 7   0.01   $112.02
75074 0.5 1.25 3 7   0.015   $113.13
75075 0.5 1.25 3 7   0.020   $114.23
75076 0.5 1.25 3 7   0.03   $115.35
75077 0.5 1.25 3 7   0.06   $117.57
75078 0.5 1.25 3 7   0.09   $119.78
75079 0.5 1.25 3 7   0.120   $126.44
75080 0.5 1.25 3 7   0.125   $126.44
75082 0.5 1.625 4 7   0.01   $127.58
75083 0.5 1.625 4 7   0.015   $128.83
75084 0.5 1.625 4 7   0.020   $130.10
75085 0.5 1.625 4 7   0.03   $131.37
75086 0.5 1.625 4 7   0.06   $133.89
75087 0.5 1.625 4 7   0.09   $136.42
75088 0.5 1.625 4 7   0.120   $144.00
75089 0.5 1.625 4 7   0.125   $144.00
75091 0.5 2.000 4 7   0.01   $135.29
75092 0.5 2.000 4 7   0.015   $136.63
75093 0.5 2.000 4 7   0.020   $137.98
75094 0.5 2.000 4 7   0.03   $139.31
75095 0.5 2.000 4 7   0.06   $141.98
75096 0.5 2.000 4 7   0.09   $144.67
75097 0.5 2.000 4 7   0.120   $152.71
75098 0.5 2.000 4 7   0.125   $152.71
75100 0.625 0.75 3 7   0.01   $198.60
75101 0.625 0.75 3 7   0.015   $200.58
75102 0.625 0.75 3 7   0.020   $202.53
75103 0.625 0.75 3 7   0.03   $204.51
75104 0.625 0.75 3 7   0.06   $208.44
75105 0.625 0.75 3 7   0.09   $212.37
75106 0.625 0.75 3 7   0.120   $224.17
75107 0.625 0.75 3 7   0.125   $224.17
75109 0.625 1.25 3.50 7   0.01   $210.40
75110 0.625 1.25 3.50 7   0.015   $212.48
75111 0.625 1.25 3.50 7   0.020   $214.56
75112 0.625 1.25 3.50 7   0.03   $216.63
75113 0.625 1.25 3.50 7   0.06   $220.81
75114 0.625 1.25 3.50 7   0.09   $224.97
75115 0.625 1.25 3.50 7   0.120   $237.47
75116 0.625 1.25 3.50 7   0.125   $237.47
75118 0.625 1.625 3.50 7   0.01   $223.08
75119 0.625 1.625 3.50 7   0.015   $225.29
75120 0.625 1.625 3.50 7   0.020   $227.49
75121 0.625 1.625 3.50 7   0.03   $229.70
75122 0.625 1.625 3.50 7   0.06   $234.12
75123 0.625 1.625 3.50 7   0.09   $238.54
75124 0.625 1.625 3.50 7   0.120   $251.80
75125 0.625 1.625 3.50 7   0.125   $251.80
75127 0.625 2.125 4 7   0.01   $245.76
75128 0.625 2.125 4 7   0.015   $248.19
75129 0.625 2.125 4 7   0.020   $250.62
75130 0.625 2.125 4 7   0.03   $253.05
75131 0.625 2.125 4 7   0.06   $257.93
75132 0.625 2.125 4 7   0.09   $262.79
75133 0.625 2.125 4 7   0.120   $277.39
75134 0.625 2.125 4 7   0.125   $277.39
75136 0.625 2.500 5 7   0.01   $254.26
75137 0.625 2.500 5 7   0.015   $256.77
75138 0.625 2.500 5 7   0.020   $259.29
75139 0.625 2.500 5 7   0.03   $261.82
75140 0.625 2.500 5 7   0.06   $266.85
75141 0.625 2.500 5 7   0.09   $271.89
75142 0.625 2.500 5 7   0.120   $286.99
75143 0.625 2.500 5 7   0.125   $286.99
75145 0.75 1 3 7   0.01   $289.43
75146 0.75 1 3 7   0.015   $292.31
75147 0.75 1 3 7   0.020   $295.17
75148 0.75 1 3 7   0.03   $298.03
75149 0.75 1 3 7   0.06   $303.77
75150 0.75 1 3 7   0.09   $309.50
75151 0.75 1 3 7   0.120   $326.68
75152 0.75 1 3 7   0.125   $326.68
75154 0.75 1.625 4 7   0.01   $303.79
75155 0.75 1.625 4 7   0.015   $306.81
75156 0.75 1.625 4 7   0.020   $309.81
75157 0.75 1.625 4 7   0.03   $312.81
75158 0.75 1.625 4 7   0.06   $318.84
75159 0.75 1.625 4 7   0.09   $324.85
75160 0.75 1.625 4 7   0.120   $342.89
75161 0.75 1.625 4 7   0.125   $342.89
75163 0.75 2.250 5 7   0.01   $344.06
75164 0.75 2.250 5 7   0.015   $347.46
75165 0.75 2.250 5 7   0.020   $350.88
75166 0.75 2.250 5 7   0.03   $354.30
75167 0.75 2.250 5 7   0.06   $361.10
75168 0.75 2.250 5 7   0.09   $367.91
75169 0.75 2.250 5 7   0.120   $388.34
75170 0.75 2.250 5 7   0.125   $388.34
75172 0.75 2.750 5 7   0.01   $340.84
75173 0.75 2.750 5 7   0.015   $344.21
75174 0.75 2.750 5 7   0.020   $347.59
75175 0.75 2.750 5 7   0.03   $350.96
75176 0.75 2.750 5 7   0.06   $357.70
75177 0.75 2.750 5 7   0.09   $364.47
75178 0.75 2.750 5 7   0.120   $384.70
75179 0.75 2.750 5 7   0.125   $384.70
75181 0.75 3.250 6 7   0.01   $378.33
75182 0.75 3.250 6 7   0.015   $382.08
75183 0.75 3.250 6 7   0.020   $385.82
75184 0.75 3.250 6 7   0.03   $389.57
75185 0.75 3.250 6 7   0.06   $397.05
75186 0.75 3.250 6 7   0.09   $404.55
75187 0.75 3.250 6 7   0.120   $427.03
75188 0.75 3.250 6 7   0.125   $427.03
75190 1 1.25 4.50 7   0.01   $486.36
75191 1 1.25 4.50 7   0.015   $491.17
75192 1 1.25 4.50 7   0.020   $495.99
75193 1 1.25 4.50 7   0.03   $500.80
75194 1 1.25 4.50 7   0.06   $510.43
75195 1 1.25 4.50 7   0.09   $520.06
75196 1 1.25 4.50 7   0.120   $548.96
75197 1 1.25 4.50 7   0.125   $548.96
75198 1 1.25 4.50 7   0.19   $568.22
75199 1 1.25 4.50 7   0.25   $577.85
75201 1 2.000 4.50 7   0.01   $515.35
75202 1 2.000 4.50 7   0.015   $520.45
75203 1 2.000 4.50 7   0.020   $525.53
75204 1 2.000 4.50 7   0.03   $530.66
75205 1 2.000 4.50 7   0.06   $540.86
75206 1 2.000 4.50 7   0.09   $551.06
75207 1 2.000 4.50 7   0.120   $581.68
75208 1 2.000 4.50 7   0.125   $581.68
75209 1 2.000 4.50 7   0.19   $602.10
75210 1 2.000 4.50 7   0.25   $612.30
75212 1 2.625 5 7   0.01   $561.74
75213 1 2.625 5 7   0.015   $567.29
75214 1 2.625 5 7   0.020   $572.86
75215 1 2.625 5 7   0.03   $578.20
75216 1 2.625 5 7   0.06   $589.54
75217 1 2.625 5 7   0.09   $600.67
75218 1 2.625 5 7   0.120   $634.04
75219 1 2.625 5 7   0.125   $634.04
75220 1 2.625 5 7   0.19   $656.29
75221 1 2.625 5 7   0.25   $667.40
75223 1 3.250 6 7   0.01   $601.06
75224 1 3.250 6 7   0.015   $607.01
75225 1 3.250 6 7   0.020   $612.97
75226 1 3.250 6 7   0.03   $618.91
75227 1 3.250 6 7   0.06   $630.82
75228 1 3.250 6 7   0.09   $642.71
75229 1 3.250 6 7   0.120   $678.41
75230 1 3.250 6 7   0.125   $678.41
75231 1 3.250 6 7   0.19   $702.22
75232 1 3.250 6 7   0.25   $714.13
75234 1 4.250 7 7   0.01   $643.13
75235 1 4.250 7 7   0.015   $649.49
75236 1 4.250 7 7   0.020   $655.86
75237 1 4.250 7 7   0.03   $662.23
75238 1 4.250 7 7   0.06   $674.97
75239 1 4.250 7 7   0.09   $687.70
75240 1 4.250 7 7   0.120   $725.91
75241 1 4.250 7 7   0.125   $725.91
75242 1 4.250 7 7   0.19   $751.38
75243 1 4.250 7 7   0.25   $764.12
75245 0.375 0.75 2.5 7   0.01   $68.78
75246 0.375 0.75 2.5 7   0.015   $69.47
75247 0.375 0.75 2.5 7   0.020   $70.15
75248 0.375 0.75 2.5 7   0.03   $70.83
75249 0.375 0.75 2.5 7   0.06   $72.20
