NXG-6 | 6 Flute Square End Mill A-ProMAX Coated

NXG-6 | 6 Flute Square End Mill A-ProMAX Coated

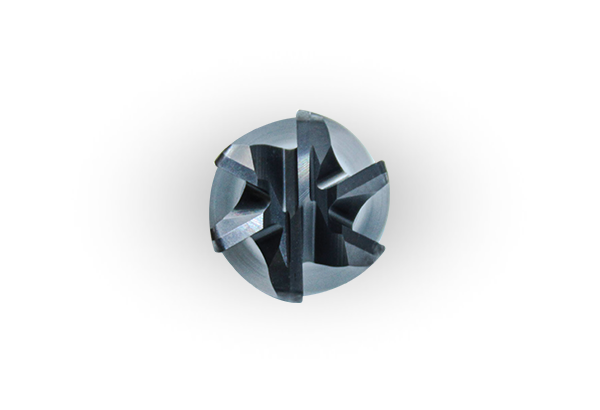

NXG-6 | 6 Flute Square End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
HEAVY ROUGHING
HEM
POCKETING
COUNTURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
60003 0.2500 0.375 2.00 6     $26.72
60009 0.2500 0.500 2.50 6     $28.86
60015 0.2500 0.750 2.50 6     $29.17
60021 0.2500 1.000 3.00 6     $42.60
60027 0.2500 1.250 3.00 6     $43.45
60033 0.3750 0.500 2.00 6     $43.92
60042 0.3750 0.750 2.50 6     $45.43
60050 0.3750 1.000 3.00 6     $48.84
60059 0.3750 1.250 3.00 6     $52.76
60068 0.3750 1.500 3.50 6     $55.37
60077 0.5000 0.625 2.50 6     $69.43
60086 0.5000 1.000 3.00 6     $74.27
60095 0.5000 1.250 3.00 6     $74.43
60103 0.5000 1.625 4.00 6     $84.94
60112 0.5000 2.000 4.00 6     $88.58
60121 0.6250 0.750 3.00 6     $128.93
60130 0.6250 1.250 3.50 6     $137.92
60139 0.6250 1.625 3.50 6     $146.24
60148 0.6250 2.125 4.00 6     $158.00
60157 0.6250 2.500 5.00 6     $165.86
60166 0.7500 1.000 3.00 6     $191.62
60177 0.7500 1.625 4.00 6     $201.12
60187 0.7500 2.250 5.00 6     $222.28
60198 0.7500 2.750 5.00 6     $223.43
60209 0.7500 3.250 6.00 6     $248.01
60220 1.0000 1.250 4.50 6     $307.83
60231 1.0000 2.000 4.50 6     $329.38
60242 1.0000 2.625 5.00 6     $359.03
60253 1.0000 3.250 6.00 6     $384.17
60264 1.0000 4.250 7.00 6     $411.06
