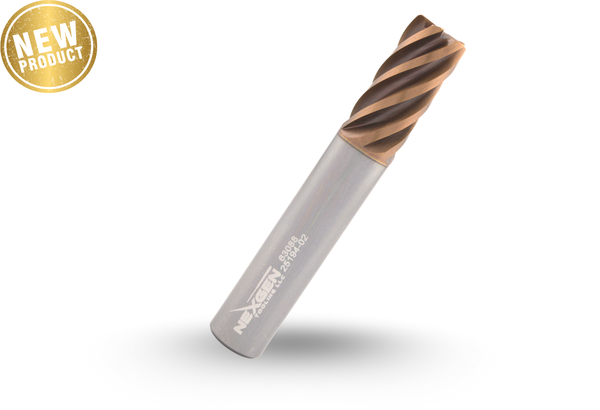

6 Flute End Mill T-ProMAX Coated

6 Flute End Mill T-ProMAX Coated

Overview

Premium high performance 6-flute carbide end mills ideal for Heat Resistant Super Alloys, Stainless Steels and Hardened Steels.

With a hardness of 4,000 Hv and an oxidation temperature >1600 degrees F, T-ProMAX coating is ideal in Stainless Steels, Titanium, and High Temp Alloys.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • T-ProMAX
Pocketing
HEM

Tolerances

Cut Diameter Shank Diameter Length of Cut Overall Length Corner Radius
+.000/-.002 h6 +.032/-.000 +/-.050 +/-.002

Downloads

End Mills Selection Guide End Mills Selection
Speed and Feed Data Speed and Feed Data
Depth of Cut Guidelines Depth of Cut Guidelines
Weldon Flat Specifications Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
63001 0.25 0.375 2.00 6   0.01   $39.59
63002 0.25 0.375 2.00 6   0.015   $39.99
63003 0.25 0.375 2.00 6   0.020   $40.38
63004 0.25 0.375 2.00 6   0.03   $40.77
63005 0.25 0.375 2.00 6   0.06   $41.55
63007 0.25 0.5 2.5 6   0.01   $42.76
63008 0.25 0.5 2.5 6   0.015   $43.18
63009 0.25 0.5 2.5 6   0.020   $43.60
63010 0.25 0.5 2.5 6   0.03   $44.04
63011 0.25 0.5 2.5 6   0.06   $44.88
63013 0.25 0.75 2.5 6   0.01   $43.23
63014 0.25 0.75 2.5 6   0.015   $43.65
63015 0.25 0.75 2.5 6   0.020   $44.08
63016 0.25 0.75 2.5 6   0.03   $44.50
63017 0.25 0.75 2.5 6   0.06   $45.36
63019 0.25 1 3 6   0.01   $63.12
63020 0.25 1 3 6   0.015   $63.74
63021 0.25 1 3 6   0.020   $64.36
63022 0.25 1 3 6   0.03   $64.98
63023 0.25 1 3 6   0.06   $66.24
63025 0.25 1.25 3 6   0.01   $64.38
63026 0.25 1.25 3 6   0.015   $65.01
63027 0.25 1.25 3 6   0.020   $65.65
63028 0.25 1.25 3 6   0.03   $66.29
63029 0.25 1.25 3 6   0.06   $67.56
63031 0.375 0.5 2.00 6   0.01   $67.41
63032 0.375 0.5 2.00 6   0.015   $68.08
63033 0.375 0.5 2.00 6   0.020   $68.74
63034 0.375 0.5 2.00 6   0.03   $69.42
63035 0.375 0.5 2.00 6   0.06   $70.76
63036 0.375 0.5 2.00 6   0.09   $72.08
63037 0.375 0.5 2.00 6   0.120   $76.09
63038 0.375 0.5 2.00 6   0.125   $76.09
63040 0.375 0.75 2.5 6   0.01   $69.74
63041 0.375 0.75 2.5 6   0.015   $70.43
63042 0.375 0.75 2.5 6   0.020   $71.11
63043 0.375 0.75 2.5 6   0.03   $71.80
63044 0.375 0.75 2.5 6   0.06   $73.19
63045 0.375 0.75 2.5 6   0.09   $74.57
63046 0.375 0.75 2.5 6   0.120   $78.71
63047 0.375 0.75 2.5 6   0.125   $78.71
63049 0.375 1 3 6   0.01   $74.98
63050 0.375 1 3 6   0.015   $75.72
63051 0.375 1 3 6   0.020   $76.46
63052 0.375 1 3 6   0.03   $77.22
63053 0.375 1 3 6   0.06   $78.70
63054 0.375 1 3 6   0.09   $80.18
63055 0.375 1 3 6   0.120   $84.63
63056 0.375 1 3 6   0.125   $84.63
63058 0.375 1.25 3 6   0.01   $80.99
63059 0.375 1.25 3 6   0.015   $81.78
63060 0.375 1.25 3 6   0.020   $82.58
63061 0.375 1.25 3 6   0.03   $83.39
63062 0.375 1.25 3 6   0.06   $84.98
63063 0.375 1.25 3 6   0.09   $86.59
63064 0.375 1.25 3 6   0.120   $91.41
63065 0.375 1.25 3 6   0.125   $91.41
63067 0.375 1.500 3.50 6   0.01   $85.01
63068 0.375 1.500 3.50 6   0.015   $85.85
63069 0.375 1.500 3.50 6   0.020   $86.69
63070 0.375 1.500 3.50 6   0.03   $87.53
63071 0.375 1.500 3.50 6   0.06   $89.22
63072 0.375 1.500 3.50 6   0.09   $90.89
63073 0.375 1.500 3.50 6   0.120   $95.95
63074 0.375 1.500 3.50 6   0.125   $95.95
63076 0.5 0.625 2.5 6   0.01   $107.51
63077 0.5 0.625 2.5 6   0.015   $108.57
63078 0.5 0.625 2.5 6   0.020   $109.64
63079 0.5 0.625 2.5 6   0.03   $110.70
63080 0.5 0.625 2.5 6   0.06   $112.83
63081 0.5 0.625 2.5 6   0.09   $114.96
63082 0.5 0.625 2.5 6   0.120   $121.34
63083 0.5 0.625 2.5 6   0.125   $135.61
63085 0.5 1 3 6   0.01   $115.00
63086 0.5 1 3 6   0.015   $116.14
63087 0.5 1 3 6   0.020   $117.28
63088 0.5 1 3 6   0.03   $118.42
63089 0.5 1 3 6   0.06   $120.69
63090 0.5 1 3 6   0.09   $122.97
63091 0.5 1 3 6   0.120   $129.81
63092 0.5 1 3 6   0.125   $145.08
63094 0.5 1.25 3 6   0.01   $115.25
63095 0.5 1.25 3 6   0.015   $116.39
63096 0.5 1.25 3 6   0.020   $117.52
63097 0.5 1.25 3 6   0.03   $118.68
63098 0.5 1.25 3 6   0.06   $120.95
63099 0.5 1.25 3 6   0.09   $123.23
63100 0.5 1.25 3 6   0.120   $130.08
63101 0.5 1.25 3 6   0.125   $130.08
63103 0.5 1.625 4 6   0.01   $131.51
63104 0.5 1.625 4 6   0.015   $132.81
63105 0.5 1.625 4 6   0.020   $134.11
63106 0.5 1.625 4 6   0.03   $135.41
63107 0.5 1.625 4 6   0.06   $138.01
63108 0.5 1.625 4 6   0.09   $140.63
63109 0.5 1.625 4 6   0.120   $148.43
63110 0.5 1.625 4 6   0.125   $148.43
63112 0.5 2.000 4 6   0.01   $137.17
63113 0.5 2.000 4 6   0.015   $138.52
63114 0.5 2.000 4 6   0.020   $139.88
63115 0.5 2.000 4 6   0.03   $141.23
63116 0.5 2.000 4 6   0.06   $143.95
63117 0.5 2.000 4 6   0.09   $146.68
63118 0.5 2.000 4 6   0.120   $154.82
63119 0.5 2.000 4 6   0.125   $154.82
63121 0.625 0.75 3 6   0.01   $201.36
63122 0.625 0.75 3 6   0.015   $203.34
63123 0.625 0.75 3 6   0.020   $205.34
63124 0.625 0.75 3 6   0.03   $207.34
63125 0.625 0.75 3 6   0.06   $211.32
63126 0.625 0.75 3 6   0.09   $215.31
63127 0.625 0.75 3 6   0.120   $227.27
63128 0.625 0.75 3 6   0.125   $227.27
63130 0.625 1.25 3.50 6   0.01   $215.39
63131 0.625 1.25 3.50 6   0.015   $217.52
63132 0.625 1.25 3.50 6   0.020   $219.67
63133 0.625 1.25 3.50 6   0.03   $221.80
63134 0.625 1.25 3.50 6   0.06   $226.06
63135 0.625 1.25 3.50 6   0.09   $230.32
63136 0.625 1.25 3.50 6   0.120   $243.12
63137 0.625 1.25 3.50 6   0.125   $243.12
63139 0.625 1.625 3.50 6   0.01   $228.38
63140 0.625 1.625 3.50 6   0.015   $230.65
63141 0.625 1.625 3.50 6   0.020   $232.91
63142 0.625 1.625 3.50 6   0.03   $235.17
63143 0.625 1.625 3.50 6   0.06   $239.69
63144 0.625 1.625 3.50 6   0.09   $244.22
63145 0.625 1.625 3.50 6   0.120   $257.77
63146 0.625 1.625 3.50 6   0.125   $257.77
63148 0.625 2.125 4 6   0.01   $246.76
63149 0.625 2.125 4 6   0.015   $249.20
63150 0.625 2.125 4 6   0.020   $251.64
63151 0.625 2.125 4 6   0.03   $254.09
63152 0.625 2.125 4 6   0.06   $258.99
63153 0.625 2.125 4 6   0.09   $263.87
63154 0.625 2.125 4 6   0.120   $278.52
63155 0.625 2.125 4 6   0.125   $278.52
63157 0.625 2.500 5 6   0.01   $259.04
63158 0.625 2.500 5 6   0.015   $261.59
63159 0.625 2.500 5 6   0.020   $264.17
63160 0.625 2.500 5 6   0.03   $266.72
63161 0.625 2.500 5 6   0.06   $271.85
63162 0.625 2.500 5 6   0.09   $276.98
63163 0.625 2.500 5 6   0.120   $292.37
63164 0.625 2.500 5 6   0.125   $292.37
63166 0.75 1 3 6   0.01   $299.26
63167 0.75 1 3 6   0.015   $302.21
63168 0.75 1 3 6   0.020   $305.17
63169 0.75 1 3 6   0.03   $308.14
63170 0.75 1 3 6   0.06   $314.06
63171 0.75 1 3 6   0.09   $319.99
63172 0.75 1 3 6   0.120   $337.78
63173 0.75 1 3 6   0.125   $337.78
63174 0.75 1 3 6   0.19   $349.63
63175 0.75 1 3 6   0.25   $355.54
63177 0.75 1.625 4 6   0.01   $314.09
63178 0.75 1.625 4 6   0.015   $317.21
63179 0.75 1.625 4 6   0.020   $320.32
63180 0.75 1.625 4 6   0.03   $323.42
63181 0.75 1.625 4 6   0.06   $329.65
63182 0.75 1.625 4 6   0.09   $335.86
63183 0.75 1.625 4 6   0.120   $354.53
63184 0.75 1.625 4 6   0.125   $354.53
63185 0.75 1.625 4 6   0.19   $366.97
63186 0.75 1.625 4 6   0.25   $373.18
63188 0.75 2.250 5 6   0.01   $347.13
63189 0.75 2.250 5 6   0.015   $350.58
63190 0.75 2.250 5 6   0.020   $354.02
63191 0.75 2.250 5 6   0.03   $357.44
63192 0.75 2.250 5 6   0.06   $364.33
63193 0.75 2.250 5 6   0.09   $371.20
63194 0.75 2.250 5 6   0.120   $391.81
63195 0.75 2.250 5 6   0.125   $391.81
63196 0.75 2.250 5 6   0.19   $405.57
63197 0.75 2.250 5 6   0.25   $412.45
63199 0.75 2.750 5 6   0.01   $348.94
63200 0.75 2.750 5 6   0.015   $352.40
63201 0.75 2.750 5 6   0.020   $355.85
63202 0.75 2.750 5 6   0.03   $359.31
63203 0.75 2.750 5 6   0.06   $366.21
63204 0.75 2.750 5 6   0.09   $373.13
63205 0.75 2.750 5 6   0.120   $393.85
63206 0.75 2.750 5 6   0.125   $393.85
63207 0.75 2.750 5 6   0.19   $407.68
63208 0.75 2.750 5 6   0.25   $414.58
63210 0.75 3.250 6 6   0.01   $387.32
63211 0.75 3.250 6 6   0.015   $391.16
63212 0.75 3.250 6 6   0.020   $394.99
63213 0.75 3.250 6 6   0.03   $398.83
63214 0.75 3.250 6 6   0.06   $406.50
63215 0.75 3.250 6 6   0.09   $414.17
63216 0.75 3.250 6 6   0.120   $437.18
63217 0.75 3.250 6 6   0.125   $437.18
63218 0.75 3.250 6 6   0.19   $452.51
63219 0.75 3.250 6 6   0.25   $460.18
63221 1 1.25 4.50 6   0.01   $493.09
63222 1 1.25 4.50 6   0.015   $497.97
63223 1 1.25 4.50 6   0.020   $502.86
63224 1 1.25 4.50 6   0.03   $507.74
63225 1 1.25 4.50 6   0.06   $517.50
63226 1 1.25 4.50 6   0.09   $527.27
63227 1 1.25 4.50 6   0.120   $556.55
63228 1 1.25 4.50 6   0.125   $556.55
63229 1 1.25 4.50 6   0.19   $576.09
63230 1 1.25 4.50 6   0.25   $585.85
63232 1 2.000 4.50 6   0.01   $527.61
63233 1 2.000 4.50 6   0.015   $532.83
63234 1 2.000 4.50 6   0.020   $538.04
63235 1 2.000 4.50 6   0.03   $543.27
63236 1 2.000 4.50 6   0.06   $553.73
63237 1 2.000 4.50 6   0.09   $564.17
63238 1 2.000 4.50 6   0.120   $595.52
63239 1 2.000 4.50 6   0.125   $595.52
63240 1 2.000 4.50 6   0.19   $616.42
63241 1 2.000 4.50 6   0.25   $626.86
63243 1 2.625 5 6   0.01   $575.10
63244 1 2.625 5 6   0.015   $580.78
63245 1 2.625 5 6   0.020   $586.48
63246 1 2.625 5 6   0.03   $592.18
63247 1 2.625 5 6   0.06   $603.56
63248 1 2.625 5 6   0.09   $614.95
63249 1 2.625 5 6   0.120   $649.11
63250 1 2.625 5 6   0.125   $649.11
63251 1 2.625 5 6   0.19   $671.89
63252 1 2.625 5 6   0.25   $683.27
63254 1 3.250 6 6   0.01   $615.34
63255 1 3.250 6 6   0.015   $621.44
63256 1 3.250 6 6   0.020   $627.53
63257 1 3.250 6 6   0.03   $633.63
63258 1 3.250 6 6   0.06   $645.80
63259 1 3.250 6 6   0.09   $657.99
63260 1 3.250 6 6   0.120   $694.55
63261 1 3.250 6 6   0.125   $694.55
63262 1 3.250 6 6   0.19   $718.91
63263 1 3.250 6 6   0.25   $731.10
63265 1 4.250 7 6   0.01   $658.43
63266 1 4.250 7 6   0.015   $664.93
63267 1 4.250 7 6   0.020   $671.46
63268 1 4.250 7 6   0.03   $677.98
63269 1 4.250 7 6   0.06   $691.01
63270 1 4.250 7 6   0.09   $704.05
63271 1 4.250 7 6   0.120   $743.17
63272 1 4.250 7 6   0.125   $743.17
63273 1 4.250 7 6   0.19   $769.24
63274 1 4.250 7 6   0.25   $782.29
