6 Flute End Mill A-ProMAX Coated

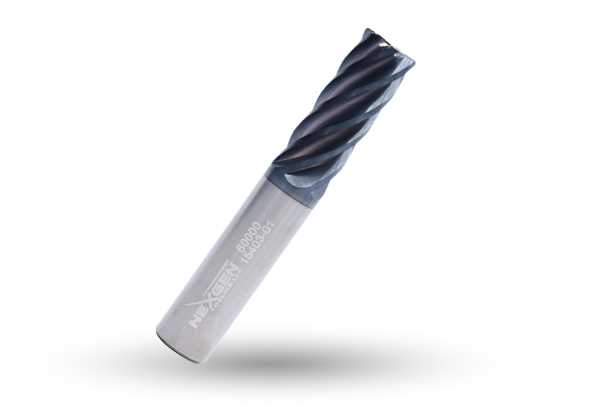

6 Flute End Mill A-ProMAX Coated

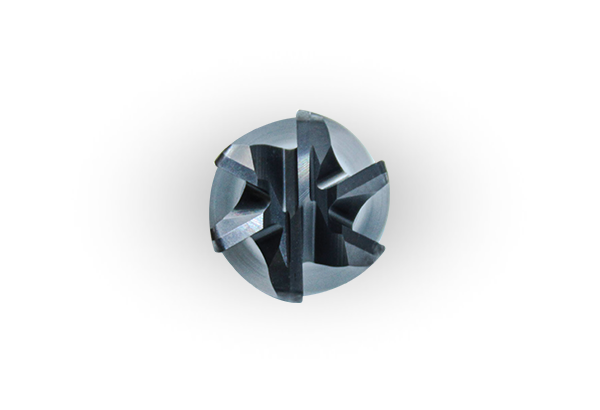

6 Flute End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 6-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degries F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
HEAVY ROUGHING
HEM
POCKETING
COUNTURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
60000 0.5 1.25 3 6   0.03   $86.70
60001 0.75 1.625 4 6   0.03   $234.26
60002 0.375 0.75 2.5 6   0.120   $58.01
60004 0.25 0.375 2.00 6   0.01   $30.23
60005 0.25 0.375 2.00 6   0.015   $30.53
60006 0.25 0.375 2.00 6   0.020   $30.83
60007 0.25 0.375 2.00 6   0.03   $31.13
60008 0.25 0.375 2.00 6   0.06   $31.72
60010 0.25 0.5 2.5 6   0.01   $32.65
60011 0.25 0.5 2.5 6   0.015   $32.97
60012 0.25 0.5 2.5 6   0.020   $33.29
60013 0.25 0.5 2.5 6   0.03   $33.62
60014 0.25 0.5 2.5 6   0.06   $34.26
60016 0.25 0.75 2.5 6   0.01   $33.00
60017 0.25 0.75 2.5 6   0.015   $33.32
60018 0.25 0.75 2.5 6   0.020   $33.66
60019 0.25 0.75 2.5 6   0.03   $33.98
60020 0.25 0.75 2.5 6   0.06   $34.63
60022 0.25 1 3 6   0.01   $48.19
60023 0.25 1 3 6   0.015   $48.66
60024 0.25 1 3 6   0.020   $49.14
60025 0.25 1 3 6   0.03   $49.61
60026 0.25 1 3 6   0.06   $50.57
60028 0.25 1.25 3 6   0.01   $49.15
60029 0.25 1.25 3 6   0.015   $49.64
60030 0.25 1.25 3 6   0.020   $50.12
60031 0.25 1.25 3 6   0.03   $50.61
60032 0.25 1.25 3 6   0.06   $51.58
60034 0.375 0.5 2.00 6   0.01   $49.67
60035 0.375 0.5 2.00 6   0.015   $50.17
60036 0.375 0.5 2.00 6   0.020   $50.66
60037 0.375 0.5 2.00 6   0.03   $51.16
60038 0.375 0.5 2.00 6   0.06   $52.14
60039 0.375 0.5 2.00 6   0.09   $53.12
60040 0.375 0.5 2.00 6   0.120   $56.07
60041 0.375 0.5 2.00 6   0.125   $56.07
60043 0.375 0.75 2.5 6   0.01   $51.39
60044 0.375 0.75 2.5 6   0.015   $51.90
60045 0.375 0.75 2.5 6   0.020   $52.40
60046 0.375 0.75 2.5 6   0.03   $52.91
60047 0.375 0.75 2.5 6   0.06   $53.93
60048 0.375 0.75 2.5 6   0.09   $54.96
60049 0.375 0.75 2.5 6   0.125   $58.01
60051 0.375 1 3 6   0.01   $55.25
60052 0.375 1 3 6   0.015   $55.80
60053 0.375 1 3 6   0.020   $56.34
60054 0.375 1 3 6   0.03   $56.90
60055 0.375 1 3 6   0.06   $57.99
60056 0.375 1 3 6   0.09   $59.09
60057 0.375 1 3 6   0.120   $62.36
60058 0.375 1 3 6   0.125   $62.36
60060 0.375 1.25 3 6   0.01   $59.68
60061 0.375 1.25 3 6   0.015   $60.26
60062 0.375 1.25 3 6   0.020   $60.86
60063 0.375 1.25 3 6   0.03   $61.45
60064 0.375 1.25 3 6   0.06   $62.62
60065 0.375 1.25 3 6   0.09   $63.81
60066 0.375 1.25 3 6   0.120   $67.36
60067 0.375 1.25 3 6   0.125   $67.36
60069 0.375 1.500 3.50 6   0.01   $62.65
60070 0.375 1.500 3.50 6   0.015   $63.27
60071 0.375 1.500 3.50 6   0.020   $63.88
60072 0.375 1.500 3.50 6   0.03   $64.50
60073 0.375 1.500 3.50 6   0.06   $65.75
60074 0.375 1.500 3.50 6   0.09   $66.98
60075 0.375 1.500 3.50 6   0.120   $70.71
60076 0.375 1.500 3.50 6   0.125   $70.71
60078 0.5 0.625 2.5 6   0.01   $78.55
60079 0.5 0.625 2.5 6   0.015   $79.32
60080 0.5 0.625 2.5 6   0.020   $80.10
60081 0.5 0.625 2.5 6   0.03   $80.87
60082 0.5 0.625 2.5 6   0.06   $82.43
60083 0.5 0.625 2.5 6   0.09   $83.98
60084 0.5 0.625 2.5 6   0.120   $88.65
60085 0.5 0.625 2.5 6   0.125   $99.07
60087 0.5 1 3 6   0.01   $84.02
60088 0.5 1 3 6   0.015   $84.85
60089 0.5 1 3 6   0.020   $85.68
60090 0.5 1 3 6   0.03   $86.51
60091 0.5 1 3 6   0.06   $88.17
60092 0.5 1 3 6   0.09   $89.84
60093 0.5 1 3 6   0.120   $94.83
60094 0.5 1 3 6   0.125   $105.99
60096 0.5 1.25 3 6   0.01   $84.20
60097 0.5 1.25 3 6   0.015   $85.03
60098 0.5 1.25 3 6   0.020   $85.86
60099 0.5 1.25 3 6   0.06   $88.36
60100 0.5 1.25 3 6   0.09   $90.03
60101 0.5 1.25 3 6   0.120   $95.04
60102 0.5 1.25 3 6   0.125   $95.04
60104 0.5 1.625 4 6   0.01   $96.08
60105 0.5 1.625 4 6   0.015   $97.03
60106 0.5 1.625 4 6   0.020   $97.98
60107 0.5 1.625 4 6   0.03   $98.93
60108 0.5 1.625 4 6   0.06   $100.83
60109 0.5 1.625 4 6   0.09   $102.74
60110 0.5 1.625 4 6   0.120   $108.44
60111 0.5 1.625 4 6   0.125   $108.44
60113 0.5 2.000 4 6   0.01   $100.21
60114 0.5 2.000 4 6   0.015   $101.20
60115 0.5 2.000 4 6   0.020   $102.19
60116 0.5 2.000 4 6   0.03   $103.18
60117 0.5 2.000 4 6   0.06   $105.16
60118 0.5 2.000 4 6   0.09   $107.16
60119 0.5 2.000 4 6   0.120   $113.10
60120 0.5 2.000 4 6   0.125   $113.10
60122 0.625 0.75 3 6   0.01   $145.85
60123 0.625 0.75 3 6   0.015   $147.28
60124 0.625 0.75 3 6   0.020   $148.73
60125 0.625 0.75 3 6   0.03   $150.18
60126 0.625 0.75 3 6   0.06   $153.07
60127 0.625 0.75 3 6   0.09   $155.95
60128 0.625 0.75 3 6   0.120   $164.62
60129 0.625 0.75 3 6   0.125   $164.62
60131 0.625 1.25 3.50 6   0.01   $156.01
60132 0.625 1.25 3.50 6   0.015   $157.55
60133 0.625 1.25 3.50 6   0.020   $159.11
60134 0.625 1.25 3.50 6   0.03   $160.65
60135 0.625 1.25 3.50 6   0.06   $163.74
60136 0.625 1.25 3.50 6   0.09   $166.83
60137 0.625 1.25 3.50 6   0.120   $176.10
60138 0.625 1.25 3.50 6   0.125   $176.10
60140 0.625 1.625 3.50 6   0.01   $165.42
60141 0.625 1.625 3.50 6   0.015   $167.06
60142 0.625 1.625 3.50 6   0.020   $168.70
60143 0.625 1.625 3.50 6   0.03   $170.34
60144 0.625 1.625 3.50 6   0.06   $173.62
60145 0.625 1.625 3.50 6   0.09   $176.89
60146 0.625 1.625 3.50 6   0.120   $186.71
60147 0.625 1.625 3.50 6   0.125   $186.71
60149 0.625 2.125 4 6   0.01   $178.73
60150 0.625 2.125 4 6   0.015   $180.50
60151 0.625 2.125 4 6   0.020   $182.27
60152 0.625 2.125 4 6   0.03   $184.04
60153 0.625 2.125 4 6   0.06   $187.59
60154 0.625 2.125 4 6   0.09   $191.13
60155 0.625 2.125 4 6   0.120   $201.74
60156 0.625 2.125 4 6   0.125   $201.74
60158 0.625 2.500 5 6   0.01   $187.63
60159 0.625 2.500 5 6   0.015   $189.48
60160 0.625 2.500 5 6   0.020   $191.34
60161 0.625 2.500 5 6   0.03   $193.19
60162 0.625 2.500 5 6   0.06   $196.91
60163 0.625 2.500 5 6   0.09   $200.62
60164 0.625 2.500 5 6   0.120   $211.77
60165 0.625 2.500 5 6   0.125   $211.77
60167 0.75 1 3 6   0.01   $216.76
60168 0.75 1 3 6   0.015   $218.90
60169 0.75 1 3 6   0.020   $221.04
60170 0.75 1 3 6   0.03   $223.19
60171 0.75 1 3 6   0.06   $227.48
60172 0.75 1 3 6   0.09   $231.78
60173 0.75 1 3 6   0.120   $244.66
60174 0.75 1 3 6   0.125   $244.66
60175 0.75 1 3 6   0.19   $253.24
60176 0.75 1 3 6   0.25   $257.53
60178 0.75 1.625 4 6   0.01   $227.50
60179 0.75 1.625 4 6   0.015   $229.76
60180 0.75 1.625 4 6   0.020   $232.01
60181 0.75 1.625 4 6   0.06   $238.77
60182 0.75 1.625 4 6   0.09   $243.27
60183 0.75 1.625 4 6   0.120   $256.79
60184 0.75 1.625 4 6   0.125   $256.79
60185 0.75 1.625 4 6   0.19   $265.80
60186 0.75 1.625 4 6   0.25   $270.30
60188 0.75 2.250 5 6   0.01   $251.44
60189 0.75 2.250 5 6   0.015   $253.93
60190 0.75 2.250 5 6   0.020   $256.42
60191 0.75 2.250 5 6   0.03   $258.90
60192 0.75 2.250 5 6   0.06   $263.89
60193 0.75 2.250 5 6   0.09   $268.87
60194 0.75 2.250 5 6   0.120   $283.80
60195 0.75 2.250 5 6   0.125   $283.80
60196 0.75 2.250 5 6   0.19   $293.76
60197 0.75 2.250 5 6   0.25   $298.75
60199 0.75 2.750 5 6   0.01   $252.74
60200 0.75 2.750 5 6   0.015   $255.25
60201 0.75 2.750 5 6   0.020   $257.75
60202 0.75 2.750 5 6   0.03   $260.26
60203 0.75 2.750 5 6   0.06   $265.26
60204 0.75 2.750 5 6   0.09   $270.27
60205 0.75 2.750 5 6   0.120   $285.27
60206 0.75 2.750 5 6   0.125   $285.27
60207 0.75 2.750 5 6   0.19   $295.29
60208 0.75 2.750 5 6   0.25   $300.29
60210 0.75 3.250 6 6   0.01   $280.55
60211 0.75 3.250 6 6   0.015   $283.33
60212 0.75 3.250 6 6   0.020   $286.10
60213 0.75 3.250 6 6   0.03   $288.88
60214 0.75 3.250 6 6   0.06   $294.44
60215 0.75 3.250 6 6   0.09   $299.99
60216 0.75 3.250 6 6   0.120   $316.66
60217 0.75 3.250 6 6   0.125   $316.66
60218 0.75 3.250 6 6   0.19   $327.76
60219 0.75 3.250 6 6   0.25   $333.32
60221 1 1.25 4.50 6   0.01   $348.23
60222 1 1.25 4.50 6   0.015   $351.67
60223 1 1.25 4.50 6   0.020   $355.13
60224 1 1.25 4.50 6   0.03   $358.57
60225 1 1.25 4.50 6   0.06   $365.47
60226 1 1.25 4.50 6   0.09   $372.37
60227 1 1.25 4.50 6   0.120   $393.05
60228 1 1.25 4.50 6   0.125   $393.05
60229 1 1.25 4.50 6   0.19   $406.84
60230 1 1.25 4.50 6   0.25   $413.74
60232 1 2.000 4.50 6   0.01   $372.60
60233 1 2.000 4.50 6   0.015   $376.29
60234 1 2.000 4.50 6   0.020   $379.98
60235 1 2.000 4.50 6   0.03   $383.67
60236 1 2.000 4.50 6   0.06   $391.05
60237 1 2.000 4.50 6   0.09   $398.42
60238 1 2.000 4.50 6   0.120   $420.57
60239 1 2.000 4.50 6   0.125   $420.57
60240 1 2.000 4.50 6   0.19   $435.32
60241 1 2.000 4.50 6   0.25   $442.70
60243 1 2.625 5 6   0.01   $406.14
60244 1 2.625 5 6   0.015   $410.15
60245 1 2.625 5 6   0.020   $414.18
60246 1 2.625 5 6   0.03   $418.20
60247 1 2.625 5 6   0.06   $426.24
60248 1 2.625 5 6   0.09   $434.29
60249 1 2.625 5 6   0.120   $458.41
60250 1 2.625 5 6   0.125   $458.41
60251 1 2.625 5 6   0.19   $474.50
60252 1 2.625 5 6   0.25   $482.54
60254 1 3.250 6 6   0.01   $434.56
60255 1 3.250 6 6   0.015   $438.87
60256 1 3.250 6 6   0.020   $443.17
60257 1 3.250 6 6   0.03   $447.48
60258 1 3.250 6 6   0.06   $456.07
60259 1 3.250 6 6   0.09   $464.68
60260 1 3.250 6 6   0.120   $490.50
60261 1 3.250 6 6   0.125   $490.50
60262 1 3.250 6 6   0.19   $507.71
60263 1 3.250 6 6   0.25   $516.31
60265 1 4.250 7 6   0.01   $464.99
60266 1 4.250 7 6   0.015   $469.59
60267 1 4.250 7 6   0.020   $474.19
60268 1 4.250 7 6   0.03   $478.80
60269 1 4.250 7 6   0.06   $488.00
60270 1 4.250 7 6   0.09   $497.21
60271 1 4.250 7 6   0.120   $524.84
60272 1 4.250 7 6   0.125   $524.84
60273 1 4.250 7 6   0.19   $543.25
60274 1 4.250 7 6   0.25   $552.46
