6 Flute Chipbreaker Square End Mill A-ProMAX Coated

6 Flute Chipbreaker Square End Mill A-ProMAX Coated

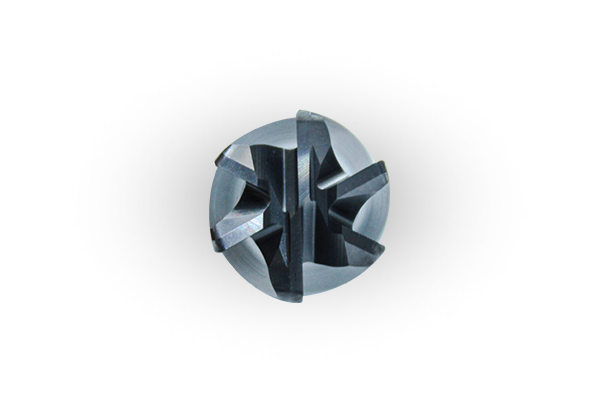

6 Flute Chipbreaker Square End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
65000 0.25 0.375 2.00 6       $37.54
65006 0.25 0.5 2.5 6       $40.55
65012 0.25 0.75 2.5 6       $40.98
65018 0.25 1 3 6       $59.84
65024 0.25 1.25 3 6       $61.04
65030 0.375 0.5 2.00 6       $63.92
65039 0.375 0.75 2.5 6       $66.12
65048 0.375 1 3 6       $71.09
65057 0.375 1.25 3 6       $76.78
65066 0.375 1.500 3.50 6       $80.61
65075 0.5 0.625 2.5 6       $101.94
65084 0.5 1 3 6       $109.04
65093 0.5 1.25 3 6       $109.26
65102 0.5 1.625 4 6       $124.69
65111 0.5 2.000 4 6       $130.04
65120 0.625 0.75 3 6       $190.91
65129 0.625 1.25 3.50 6       $204.23
65138 0.625 1.625 3.50 6       $216.55
65147 0.625 2.125 4 6       $233.97
65156 0.625 2.500 5 6       $245.61
65165 0.75 1 3 6       $283.74
65176 0.75 1.625 4 6       $297.81
65187 0.75 2.250 5 6       $329.14
65198 0.75 2.750 5 6       $330.85
65209 0.75 3.250 6 6       $367.24
65220 1 1.25 4.50 6       $467.52
65231 1 2.000 4.50 6       $500.25
65242 1 2.625 5 6       $545.27
65253 1 3.250 6 6       $583.43
65264 1 4.250 7 6       $624.28
