6 Flute Chipbreaker End Mill A-ProMAX Coated

6 Flute Chipbreaker End Mill A-ProMAX Coated

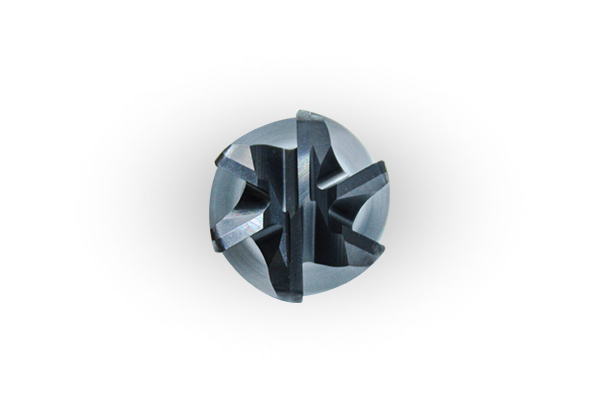

6 Flute Chipbreaker End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for roughing of Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Offset chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
65001 0.25 0.375 2.00 6   0.01   $34.16
65002 0.25 0.375 2.00 6   0.015   $34.50
65003 0.25 0.375 2.00 6   0.020   $34.83
65004 0.25 0.375 2.00 6   0.03   $35.18
65005 0.25 0.375 2.00 6   0.06   $35.85
65007 0.25 0.5 2.5 6   0.01   $36.90
65008 0.25 0.5 2.5 6   0.015   $37.25
65009 0.25 0.5 2.5 6   0.020   $37.63
65010 0.25 0.5 2.5 6   0.03   $37.99
65011 0.25 0.5 2.5 6   0.06   $38.71
65013 0.25 0.75 2.5 6   0.01   $37.29
65014 0.25 0.75 2.5 6   0.015   $37.66
65015 0.25 0.75 2.5 6   0.020   $38.73
65016 0.25 0.75 2.5 6   0.03   $38.39
65017 0.25 0.75 2.5 6   0.06   $39.14
65019 0.25 1 3 6   0.01   $54.44
65020 0.25 1 3 6   0.015   $54.99
65021 0.25 1 3 6   0.020   $55.53
65022 0.25 1 3 6   0.03   $56.07
65023 0.25 1 3 6   0.06   $57.14
65025 0.25 1.25 3 6   0.01   $55.54
65026 0.25 1.25 3 6   0.015   $56.08
65027 0.25 1.25 3 6   0.020   $56.64
65028 0.25 1.25 3 6   0.03   $57.19
65029 0.25 1.25 3 6   0.06   $58.29
65031 0.375 0.5 2.00 6   0.01   $56.13
65032 0.375 0.5 2.00 6   0.015   $56.69
65033 0.375 0.5 2.00 6   0.020   $57.25
65034 0.375 0.5 2.00 6   0.03   $57.80
65035 0.375 0.5 2.00 6   0.06   $58.91
65036 0.375 0.5 2.00 6   0.09   $60.02
65037 0.375 0.5 2.00 6   0.120   $63.36
65038 0.375 0.5 2.00 6   0.125   $63.36
65040 0.375 0.75 2.5 6   0.01   $58.07
65041 0.375 0.75 2.5 6   0.015   $58.65
65042 0.375 0.75 2.5 6   0.020   $59.23
65043 0.375 0.75 2.5 6   0.03   $59.80
65044 0.375 0.75 2.5 6   0.06   $60.95
65045 0.375 0.75 2.5 6   0.09   $62.09
65046 0.375 0.75 2.5 6   0.120   $65.55
65047 0.375 0.75 2.5 6   0.125   $65.55
65049 0.375 1 3 6   0.01   $62.43
65050 0.375 1 3 6   0.015   $63.05
65051 0.375 1 3 6   0.020   $63.68
65052 0.375 1 3 6   0.03   $64.30
65053 0.375 1 3 6   0.06   $65.53
65054 0.375 1 3 6   0.09   $66.77
65055 0.375 1 3 6   0.120   $70.47
65056 0.375 1 3 6   0.125   $70.47
65058 0.375 1.25 3 6   0.01   $67.43
65059 0.375 1.25 3 6   0.015   $68.10
65060 0.375 1.25 3 6   0.020   $68.77
65061 0.375 1.25 3 6   0.03   $69.44
65062 0.375 1.25 3 6   0.06   $70.77
65063 0.375 1.25 3 6   0.09   $72.11
65064 0.375 1.25 3 6   0.120   $76.11
65065 0.375 1.25 3 6   0.125   $76.11
65067 0.375 1.500 3.50 6   0.01   $70.79
65068 0.375 1.500 3.50 6   0.015   $71.49
65069 0.375 1.500 3.50 6   0.020   $72.19
65070 0.375 1.500 3.50 6   0.03   $72.89
65071 0.375 1.500 3.50 6   0.06   $74.29
65072 0.375 1.500 3.50 6   0.09   $75.70
65073 0.375 1.500 3.50 6   0.120   $79.90
65074 0.375 1.500 3.50 6   0.125   $79.90
65076 0.5 0.625 2.5 6   0.01   $88.76
65077 0.5 0.625 2.5 6   0.015   $89.63
65078 0.5 0.625 2.5 6   0.020   $90.51
65079 0.5 0.625 2.5 6   0.03   $91.39
65080 0.5 0.625 2.5 6   0.06   $93.15
65081 0.5 0.625 2.5 6   0.09   $94.90
65082 0.5 0.625 2.5 6   0.120   $100.18
65083 0.5 0.625 2.5 6   0.125   $111.95
65085 0.5 1 3 6   0.01   $94.94
65086 0.5 1 3 6   0.015   $95.88
65087 0.5 1 3 6   0.020   $96.82
65088 0.5 1 3 6   0.03   $97.77
65089 0.5 1 3 6   0.06   $99.64
65090 0.5 1 3 6   0.09   $101.52
65091 0.5 1 3 6   0.120   $107.16
65092 0.5 1 3 6   0.125   $119.76
65094 0.5 1.25 3 6   0.01   $95.14
65095 0.5 1.25 3 6   0.015   $96.08
65096 0.5 1.25 3 6   0.020   $97.03
65097 0.5 1.25 3 6   0.03   $97.97
65098 0.5 1.25 3 6   0.06   $99.86
65099 0.5 1.25 3 6   0.09   $101.73
65100 0.5 1.25 3 6   0.120   $107.38
65101 0.5 1.25 3 6   0.125   $107.38
65103 0.5 1.625 4 6   0.01   $108.57
65104 0.5 1.625 4 6   0.015   $109.64
65105 0.5 1.625 4 6   0.020   $110.72
65106 0.5 1.625 4 6   0.03   $111.79
65107 0.5 1.625 4 6   0.06   $113.94
65108 0.5 1.625 4 6   0.09   $116.08
65109 0.5 1.625 4 6   0.120   $122.54
65110 0.5 1.625 4 6   0.125   $122.54
65112 0.5 2.000 4 6   0.01   $113.24
65113 0.5 2.000 4 6   0.015   $114.35
65114 0.5 2.000 4 6   0.020   $115.48
65115 0.5 2.000 4 6   0.03   $116.59
65116 0.5 2.000 4 6   0.06   $118.84
65117 0.5 2.000 4 6   0.09   $121.08
65118 0.5 2.000 4 6   0.120   $127.81
65119 0.5 2.000 4 6   0.125   $127.81
65121 0.625 0.75 3 6   0.01   $164.81
65122 0.625 0.75 3 6   0.015   $166.43
65123 0.625 0.75 3 6   0.020   $168.07
65124 0.625 0.75 3 6   0.03   $169.70
65125 0.625 0.75 3 6   0.06   $172.96
65126 0.625 0.75 3 6   0.09   $176.23
65127 0.625 0.75 3 6   0.120   $186.02
65128 0.625 0.75 3 6   0.125   $186.02
65130 0.625 1.25 3.50 6   0.01   $176.30
65131 0.625 1.25 3.50 6   0.015   $178.04
65132 0.625 1.25 3.50 6   0.020   $179.79
65133 0.625 1.25 3.50 6   0.03   $181.53
65134 0.625 1.25 3.50 6   0.06   $185.03
65135 0.625 1.25 3.50 6   0.09   $188.52
65136 0.625 1.25 3.50 6   0.120   $198.99
65137 0.625 1.25 3.50 6   0.125   $198.99
65139 0.625 1.625 3.50 6   0.01   $186.92
65140 0.625 1.625 3.50 6   0.015   $188.78
65141 0.625 1.625 3.50 6   0.020   $190.63
65142 0.625 1.625 3.50 6   0.03   $192.48
65143 0.625 1.625 3.50 6   0.06   $196.18
65144 0.625 1.625 3.50 6   0.09   $199.89
65145 0.625 1.625 3.50 6   0.120   $210.99
65146 0.625 1.625 3.50 6   0.125   $210.99
65148 0.625 2.125 4 6   0.01   $201.97
65149 0.625 2.125 4 6   0.015   $203.97
65150 0.625 2.125 4 6   0.020   $205.97
65151 0.625 2.125 4 6   0.03   $207.97
65152 0.625 2.125 4 6   0.06   $211.97
65153 0.625 2.125 4 6   0.09   $215.96
65154 0.625 2.125 4 6   0.120   $227.97
65155 0.625 2.125 4 6   0.125   $227.97
65157 0.625 2.500 5 6   0.01   $212.01
65158 0.625 2.500 5 6   0.015   $214.11
65159 0.625 2.500 5 6   0.020   $216.21
65160 0.625 2.500 5 6   0.03   $218.31
65161 0.625 2.500 5 6   0.06   $222.52
65162 0.625 2.500 5 6   0.09   $226.71
65163 0.625 2.500 5 6   0.120   $239.30
65164 0.625 2.500 5 6   0.125   $239.30
65166 0.75 1 3 6   0.01   $244.93
65167 0.75 1 3 6   0.015   $247.35
65168 0.75 1 3 6   0.020   $249.79
65169 0.75 1 3 6   0.03   $252.21
65170 0.75 1 3 6   0.06   $257.05
65171 0.75 1 3 6   0.09   $261.91
65172 0.75 1 3 6   0.120   $276.46
65173 0.75 1 3 6   0.125   $276.46
65174 0.75 1 3 6   0.19   $286.16
65175 0.75 1 3 6   0.25   $291.01
65177 0.75 1.625 4 6   0.01   $257.09
65178 0.75 1.625 4 6   0.015   $259.63
65179 0.75 1.625 4 6   0.020   $262.17
65180 0.75 1.625 4 6   0.03   $264.72
65181 0.75 1.625 4 6   0.06   $269.81
65182 0.75 1.625 4 6   0.09   $274.90
65183 0.75 1.625 4 6   0.120   $290.18
65184 0.75 1.625 4 6   0.125   $290.18
65185 0.75 1.625 4 6   0.19   $300.35
65186 0.75 1.625 4 6   0.25   $305.44
65188 0.75 2.250 5 6   0.01   $284.13
65189 0.75 2.250 5 6   0.015   $286.95
65190 0.75 2.250 5 6   0.020   $289.76
65191 0.75 2.250 5 6   0.03   $292.56
65192 0.75 2.250 5 6   0.06   $298.19
65193 0.75 2.250 5 6   0.09   $303.82
65194 0.75 2.250 5 6   0.120   $320.70
65195 0.75 2.250 5 6   0.125   $320.70
65196 0.75 2.250 5 6   0.19   $331.95
65197 0.75 2.250 5 6   0.25   $337.58
65199 0.75 2.750 5 6   0.01   $285.60
65200 0.75 2.750 5 6   0.015   $288.43
65201 0.75 2.750 5 6   0.020   $291.26
65202 0.75 2.750 5 6   0.03   $294.08
65203 0.75 2.750 5 6   0.06   $299.74
65204 0.75 2.750 5 6   0.09   $305.40
65205 0.75 2.750 5 6   0.120   $322.36
65206 0.75 2.750 5 6   0.125   $322.36
65207 0.75 2.750 5 6   0.19   $333.67
65208 0.75 2.750 5 6   0.25   $339.33
65210 0.75 3.250 6 6   0.01   $317.02
65211 0.75 3.250 6 6   0.015   $320.15
65212 0.75 3.250 6 6   0.020   $323.30
65213 0.75 3.250 6 6   0.03   $326.43
65214 0.75 3.250 6 6   0.06   $332.71
65215 0.75 3.250 6 6   0.09   $338.99
65216 0.75 3.250 6 6   0.120   $357.82
65217 0.75 3.250 6 6   0.125   $357.82
65218 0.75 3.250 6 6   0.19   $370.38
65219 0.75 3.250 6 6   0.25   $376.65
65221 1 1.25 4.50 6   0.01   $393.50
65222 1 1.25 4.50 6   0.015   $397.39
65223 1 1.25 4.50 6   0.020   $401.29
65224 1 1.25 4.50 6   0.03   $405.18
65225 1 1.25 4.50 6   0.06   $412.98
65226 1 1.25 4.50 6   0.09   $420.77
65227 1 1.25 4.50 6   0.120   $444.14
65228 1 1.25 4.50 6   0.125   $444.14
65229 1 1.25 4.50 6   0.19   $459.73
65230 1 1.25 4.50 6   0.25   $467.52
65232 1 2.000 4.50 6   0.01   $421.04
65233 1 2.000 4.50 6   0.015   $425.21
65234 1 2.000 4.50 6   0.020   $429.37
65235 1 2.000 4.50 6   0.03   $433.54
65236 1 2.000 4.50 6   0.06   $441.89
65237 1 2.000 4.50 6   0.09   $450.22
65238 1 2.000 4.50 6   0.120   $475.24
65239 1 2.000 4.50 6   0.125   $475.24
65240 1 2.000 4.50 6   0.19   $491.90
65241 1 2.000 4.50 6   0.25   $500.25
65243 1 2.625 5 6   0.01   $458.94
65244 1 2.625 5 6   0.015   $463.48
65245 1 2.625 5 6   0.020   $468.02
65246 1 2.625 5 6   0.03   $472.56
65247 1 2.625 5 6   0.06   $481.66
65248 1 2.625 5 6   0.09   $490.74
65249 1 2.625 5 6   0.120   $518.00
65250 1 2.625 5 6   0.125   $518.00
65251 1 2.625 5 6   0.19   $536.18
65252 1 2.625 5 6   0.25   $545.27
65254 1 3.250 6 6   0.01   $491.06
65255 1 3.250 6 6   0.015   $495.92
65256 1 3.250 6 6   0.020   $500.78
65257 1 3.250 6 6   0.03   $505.64
65258 1 3.250 6 6   0.06   $515.36
65259 1 3.250 6 6   0.09   $525.10
65260 1 3.250 6 6   0.120   $554.27
65261 1 3.250 6 6   0.125   $554.27
65262 1 3.250 6 6   0.19   $573.71
65263 1 3.250 6 6   0.25   $583.44
65265 1 4.250 7 6   0.01   $525.43
65266 1 4.250 7 6   0.015   $530.63
65267 1 4.250 7 6   0.020   $535.84
65268 1 4.250 7 6   0.03   $541.04
65269 1 4.250 7 6   0.06   $551.44
65270 1 4.250 7 6   0.09   $561.85
65271 1 4.250 7 6   0.120   $593.07
65272 1 4.250 7 6   0.125   $593.07
65273 1 4.250 7 6   0.19   $613.88
65274 1 4.250 7 6   0.25   $624.28
