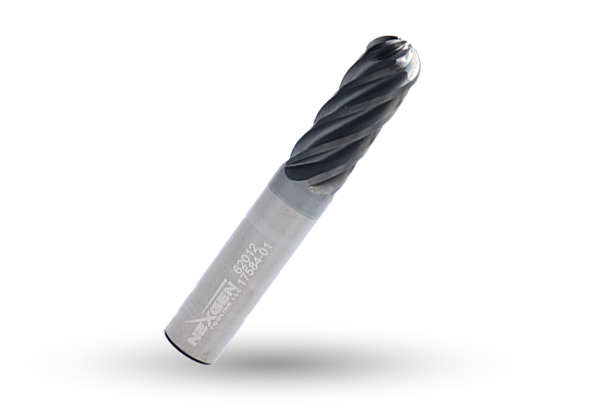

6 Flute Ballnose End Mill A-ProMAX Coated

6 Flute Ballnose End Mill A-ProMAX Coated

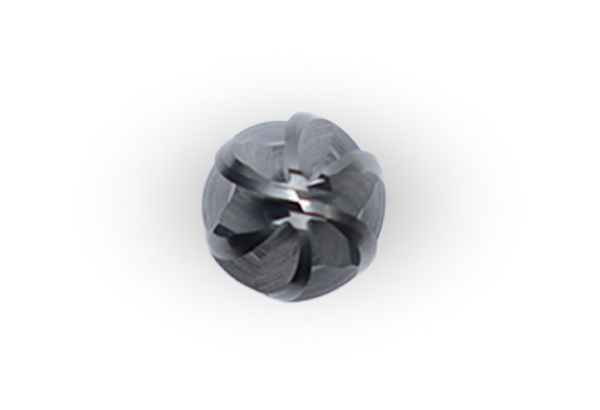

6 Flute Ballnose End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 6-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degries F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 37 Degree Helix
  • 6-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
POCKETING
CONTOURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
62000 0.25 0.375 2.00 6     $37.41
62001 0.25 0.5 2.5 6     $40.41
62002 0.25 0.75 2.5 6     $40.84
62003 0.25 1 3 6     $59.63
62004 0.25 1.25 3 6     $60.83
62005 0.375 0.5 2.00 6     $61.49
62006 0.375 0.75 2.5 6     $63.60
62007 0.375 1 3 6     $68.38
62008 0.375 1.25 3 6     $73.86
62009 0.375 1.500 3.50 6     $77.52
62010 0.5 0.625 2.5 6     $97.21
62011 0.5 1 3 6     $103.99
62012 0.5 1.25 3 6     $104.20
62013 0.5 1.625 4 6     $118.91
62014 0.5 2.000 4 6     $124.01
62015 0.625 0.75 3 6     $180.50
62016 0.625 1.25 3.50 6     $193.09
62017 0.625 1.625 3.50 6     $204.73
62018 0.625 2.125 4 6     $221.21
62019 0.625 2.500 5 6     $232.20
62020 0.75 1 3 6     $268.26
62021 0.75 1.625 4 6     $281.57
62022 0.75 2.250 5 6     $311.19
62023 0.75 2.750 5 6     $312.80
62024 0.75 3.250 6 6     $347.21
62025 1 1.25 4.50 6     $430.98
62026 1 2.000 4.50 6     $461.14
62027 1 2.625 5 6     $502.65
62028 1 3.250 6 6     $537.83
62029 1 4.250 7 6     $575.47
