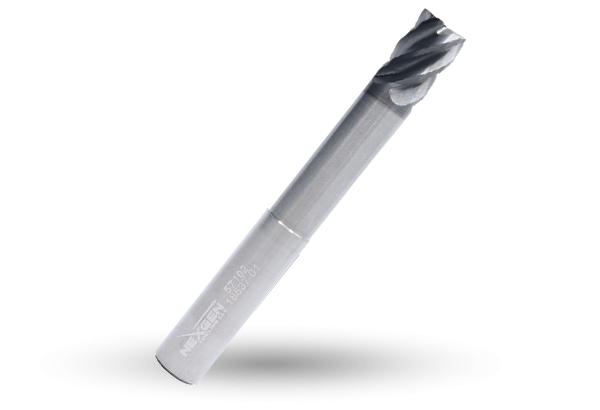

NXG-5 | 5 Flute Reduced Neck Square End Mill A-ProMAX Coated

NXG-5 | 5 Flute Reduced Neck Square End Mill A-ProMAX Coated

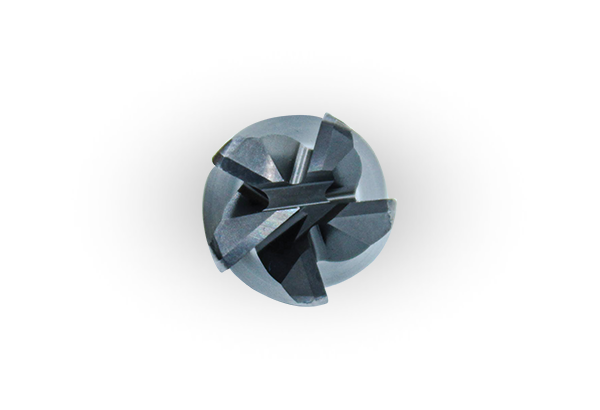

NXG-5 | 5 Flute Reduced Neck Square End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 5-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 40 Degree Helix
  • 5-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length:
+.000/-.002 h6 +.032/-.000 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
57000 0.1250 0.156 0.5 2.50 5     $26.56
57004 0.1250 0.156 0.75 3.00 5     $28.22
57008 0.1250 0.156 1 3.00 5     $31.97
57012 0.1875 0.219 0.5 2.50 5     $30.97
57016 0.1875 0.219 0.75 3.00 5     $32.19
57020 0.1875 0.219 1 3.00 5     $33.29
57024 0.2500 0.375 0.75 3.00 5     $45.64
57029 0.2500 0.375 1.125 3.00 5     $48.51
57034 0.2500 0.375 1.625 3.00 5     $50.60
57039 0.2500 0.375 2.125 4.00 5     $53.14
57044 0.2500 0.375 2.5 4.00 5     $56.33
57049 0.3125 0.4375 1.125 4.00 5     $58.65
57054 0.3125 0.4375 1.75 4.00 5     $61.29
57059 0.3125 0.4375 2.125 4.00 5     $64.71
57064 0.3750 0.500 1.125 3.00 5     $68.79
57070 0.3750 0.500 1.625 3.00 5     $71.98
57076 0.3750 0.500 2.125 4.00 5     $76.39
57082 0.3750 0.500 2.5 5.00 5     $86.98
57088 0.3750 0.500 3.125 6.00 5     $100.10
57094 0.5000 0.625 1.375 3.00 5     $103.85
57101 0.5000 0.625 2.25 4.00 5     $111.45
57108 0.5000 0.625 3.375 5.00 5     $162.50
57115 0.5000 0.625 3.75 6.00 5     $167.79
57122 0.6250 0.750 2.375 4.00 5     $236.69
57129 0.6250 0.750 3.375 6.00 5     $264.13
57136 0.7500 1.000 2 4.00 5     $227.20
57145 0.7500 1.000 2.5 5.00 5     $285.30
57154 0.7500 1.000 3.375 6.00 5     $290.93
57163 0.7500 1.000 4.125 7.00 5     $295.77
57172 1.0000 1.250 2.625 5.00 5     $438.65
57181 1.0000 1.250 3.375 6.00 5     $458.15
57190 1.0000 1.250 4.375 7.00 5     $477.23
57199 1.0000 1.250 6 9.00 5     $548.44
