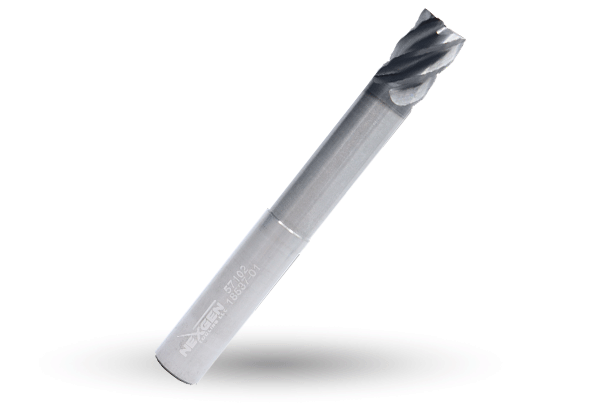

5 Flute Reduced Neck End Mill A-ProMAX Coated

5 Flute Reduced Neck End Mill A-ProMAX Coated

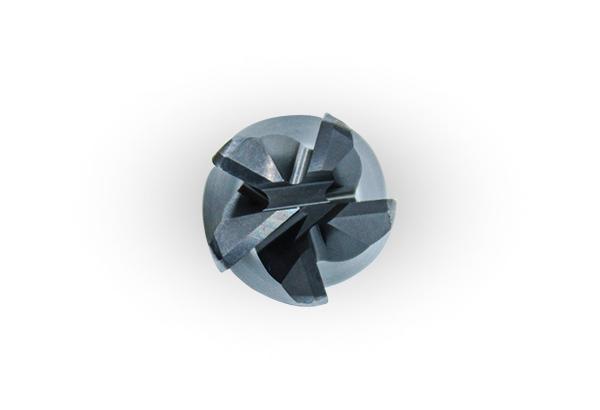

5 Flute Reduced Neck End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 5-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 40 Degree Helix
  • 5-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
HEM
POCKETING
CONTOURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
55816 1 4.250 7 5   0.25   $722.20
57001 0.125 0.156 3.75 2.5 5   0.01   $30.50
57002 0.125 0.156 2.375 2.5 5   0.015   $30.50
57003 0.125 0.156 3.375 2.5 5   0.03   $38.77
57005 0.125 0.156 2.5 3 5   0.01   $32.84
57006 0.125 0.156 3.375 3 5   0.015   $32.84
57007 0.125 0.156 4.125 3 5   0.03   $40.25
57009 0.125 0.156 3.375 3 5   0.01   $41.98
57010 0.125 0.156 4.375 3 5   0.015   $41.98
57011 0.125 0.156 6 3 5   0.03   $41.09
57013 0.1875 0.2185 0.5 2.5 5   0.01   $36.42
57014 0.1875 0.2185 0.5 2.5 5   0.015   $36.42
57015 0.1875 0.2185 0.5 2.5 5   0.03   $42.60
57017 0.1875 0.2185 0.75 3 5   0.01   $38.03
57018 0.1875 0.2185 0.75 3 5   0.015   $38.03
57019 0.1875 0.2185 0.75 3 5   0.03   $43.44
57021 0.1875 0.2185 1 3 5   0.01   $39.39
57022 0.1875 0.2185 1 3 5   0.015   $39.39
57023 0.1875 0.2185 1 3 5   0.03   $45.18
57025 0.25 0.375 0.75 3 5   0.01   $61.12
57026 0.25 0.375 0.75 3 5   0.015   $62.10
57027 0.25 0.375 0.75 3 5   0.03   $6.79
57028 0.25 0.375 0.75 3 5   0.06   $6.79
57030 0.25 0.375 1.125 3 5   0.01   $64.45
57031 0.25 0.375 1.125 3 5   0.015   $67.17
57032 0.25 0.375 1.125 3 5   0.03   $64.45
57033 0.25 0.375 1.125 3 5   0.06   $64.45
57035 0.25 0.375 1.625 3 5   0.01   $66.79
57036 0.25 0.375 1.625 3 5   0.015   $67.79
57037 0.25 0.375 1.625 3 5   0.03   $67.41
57038 0.25 0.375 1.625 3 5   0.06   $67.41
57040 0.25 0.375 2.125 4 5   0.01   $69.51
57041 0.25 0.375 2.125 4 5   0.015   $68.53
57042 0.25 0.375 2.125 4 5   0.03   $69.64
57043 0.25 0.375 2.125 4 5   0.06   $69.64
57045 0.25 0.375 2.5 4 5   0.01   $73.10
57046 0.25 0.375 2.5 4 5   0.015   $69.64
57047 0.25 0.375 2.5 4 5   0.03   $73.10
57048 0.25 0.375 2.5 4 5   0.06   $73.10
57050 0.3125 0.4375 1.125 4 5   0.01   $78.03
57051 0.3125 0.4375 1.125 4 5   0.015   $76.05
57052 0.3125 0.4375 1.125 4 5   0.03   $78.03
57053 0.3125 0.4375 1.125 4 5   0.06   $79.02
57055 0.3125 0.4375 1.75 4 5   0.01   $80.99
57056 0.3125 0.4375 1.75 4 5   0.015   $78.40
57057 0.3125 0.4375 1.75 4 5   0.03   $80.99
57058 0.3125 0.4375 1.75 4 5   0.06   $83.09
57060 0.3125 0.4375 2.125 4 5   0.01   $84.83
57061 0.3125 0.4375 2.125 4 5   0.015   $81.24
57062 0.3125 0.4375 2.125 4 5   0.03   $84.83
57063 0.3125 0.4375 2.125 4 5   0.06   $86.43
57065 0.375 0.5 1.125 3 5   0.01   $88.90
57066 0.375 0.5 1.125 3 5   0.015   $90.87
57067 0.375 0.5 1.125 3 5   0.03   $88.90
57068 0.375 0.5 1.125 3 5   0.06   $91.37
57069 0.375 0.5 1.125 3 5   0.09   $91.87
57071 0.375 0.5 1.625 3 5   0.01   $94.95
57072 0.375 0.5 1.625 3 5   0.015   $93.22
57073 0.375 0.5 1.625 3 5   0.03   $94.95
57074 0.375 0.5 1.625 3 5   0.06   $94.95
57075 0.375 0.5 1.625 3 5   0.09   $96.42
57077 0.375 0.5 2.125 4 5   0.01   $95.69
57078 0.375 0.5 2.125 4 5   0.015   $94.82
57079 0.375 0.5 2.125 4 5   0.03   $95.57
57080 0.375 0.5 2.125 4 5   0.06   $96.19
57081 0.375 0.5 2.125 4 5   0.09   $100.38
57083 0.375 0.5 2.5 5 5   0.01   $106.87
57084 0.375 0.5 2.5 5 5   0.015   $107.10
57085 0.375 0.5 2.5 5 5   0.03   $108.72
57086 0.375 0.5 2.5 5 5   0.06   $109.08
57087 0.375 0.5 2.5 5 5   0.09   $109.42
57089 0.375 0.5 3.125 6 5   0.01   $126.31
57090 0.375 0.5 3.125 6 5   0.015   $120.88
57091 0.375 0.5 3.125 6 5   0.03   $126.31
57092 0.375 0.5 3.125 6 5   0.06   $126.31
57093 0.375 0.5 3.125 6 5   0.09   $126.80
57095 0.5 0.625 1.375 3 5   0.01   $129.02
57096 0.5 0.625 1.375 3 5   0.015   $127.42
57097 0.5 0.625 1.375 3 5   0.03   $129.02
57098 0.5 0.625 1.375 3 5   0.06   $131.00
57099 0.5 0.625 1.375 3 5   0.09   $131.74
57100 0.5 0.625 1.375 3 5   0.125   $131.74
57102 0.5 0.625 2.25 4 5   0.01   $139.02
57103 0.5 0.625 2.25 4 5   0.015   $136.06
57104 0.5 0.625 2.25 4 5   0.03   $139.15
57105 0.5 0.625 2.25 4 5   0.06   $139.64
57106 0.5 0.625 2.25 4 5   0.09   $139.89
57107 0.5 0.625 2.25 4 5   0.125   $139.77
57109 0.5 0.625 3.375 5 5   0.01   $196.32
57110 0.5 0.625 3.375 5 5   0.015   $190.88
57111 0.5 0.625 3.375 5 5   0.03   $196.20
57112 0.5 0.625 3.375 5 5   0.06   $196.68
57113 0.5 0.625 3.375 5 5   0.09   $197.43
57114 0.5 0.625 3.375 5 5   0.125   $197.43
57116 0.5 0.625 3.75 6 5   0.01   $202.24
57117 0.5 0.625 3.75 6 5   0.015   $191.01
57118 0.5 0.625 3.75 6 5   0.03   $202.22
57119 0.5 0.625 3.75 6 5   0.06   $202.74
57120 0.5 0.625 3.75 6 5   0.09   $198.67
57121 0.5 0.625 3.75 6 5   0.125   $203.47
57123 0.625 0.75 2.375 4 5   0.01   $280.64
57124 0.625 0.75 2.375 4 5   0.015   $278.54
57125 0.625 0.75 2.375 4 5   0.03   $280.64
57126 0.625 0.75 2.375 4 5   0.06   $284.84
57127 0.625 0.75 2.375 4 5   0.09   $282.01
57128 0.625 0.75 2.375 4 5   0.125   $282.01
57130 0.625 0.75 3.375 6 5   0.01   $297.56
57131 0.625 0.75 3.375 6 5   0.015   $300.15
57132 0.625 0.75 3.375 6 5   0.03   $297.44
57133 0.625 0.75 3.375 6 5   0.06   $302.38
57134 0.625 0.75 3.375 6 5   0.09   $312.74
57135 0.625 0.75 3.375 6 5   0.125   $312.99
57137 0.75 1 2 4 5   0.01   $271.88
57138 0.75 1 2 4 5   0.015   $272.50
57139 0.75 1 2 4 5   0.03   $271.75
57140 0.75 1 2 4 5   0.06   $273.60
57141 0.75 1 2 4 5   0.09   $276.20
57142 0.75 1 2 4 5   0.125   $276.20
57143 0.75 1 2 4 5   0.19   $278.92
57144 0.75 1 2 4 5   0.25   $276.69
57146 0.75 1 2.5 5 5   0.01   $341.27
57147 0.75 1 2.5 5 5   0.015   $326.94
57148 0.75 1 2.5 5 5   0.03   $341.27
57149 0.75 1 2.5 5 5   0.06   $341.27
57150 0.75 1 2.5 5 5   0.09   $341.27
57151 0.75 1 2.5 5 5   0.125   $341.27
57152 0.75 1 2.5 5 5   0.19   $344.60
57153 0.75 1 2.5 5 5   0.25   $347.45
57155 0.75 1 3.375 6 5   0.01   $347.56
57156 0.75 1 3.375 6 5   0.015   $342.74
57157 0.75 1 3.375 6 5   0.03   $347.56
57158 0.75 1 3.375 6 5   0.06   $347.56
57159 0.75 1 3.375 6 5   0.09   $347.56
57160 0.75 1 3.375 6 5   0.125   $347.56
57161 0.75 1 3.375 6 5   0.19   $353.24
57162 0.75 1 3.375 6 5   0.25   $350.03
57164 0.75 1 4.125 7 5   0.01   $353.00
57165 0.75 1 4.125 7 5   0.015   $351.39
57166 0.75 1 4.125 7 5   0.03   $353.00
57167 0.75 1 4.125 7 5   0.06   $353.00
57168 0.75 1 4.125 7 5   0.09   $353.00
57169 0.75 1 4.125 7 5   0.125   $353.00
57170 0.75 1 4.125 7 5   0.19   $355.71
57171 0.75 1 4.125 7 5   0.25   $355.71
57173 1 1.25 2.625 5 5   0.01   $517.22
57174 1 1.25 2.625 5 5   0.015   $497.70
57175 1 1.25 2.625 5 5   0.03   $517.22
57176 1 1.25 2.625 5 5   0.06   $461.89
57177 1 1.25 2.625 5 5   0.09   $520.67
57178 1 1.25 2.625 5 5   0.125   $519.55
57179 1 1.25 2.625 5 5   0.19   $518.82
57180 1 1.25 2.625 5 5   0.25   $472.52
57182 1 1.25 3.375 6 5   0.01   $538.94
57183 1 1.25 3.375 6 5   0.015   $518.57
57184 1 1.25 3.375 6 5   0.03   $539.19
57185 1 1.25 3.375 6 5   0.06   $581.29
57186 1 1.25 3.375 6 5   0.09   $543.38
57187 1 1.25 3.375 6 5   0.125   $542.53
57188 1 1.25 3.375 6 5   0.19   $546.97
57189 1 1.25 3.375 6 5   0.25   $584.38
57191 1 1.25 4.375 7 5   0.01   $560.55
57192 1 1.25 4.375 7 5   0.015   $560.55
57193 1 1.25 4.375 7 5   0.03   $561.74
57194 1 1.25 4.375 7 5   0.06   $562.33
57195 1 1.25 4.375 7 5   0.09   $563.88
57196 1 1.25 4.375 7 5   0.125   $564.53
57197 1 1.25 4.375 7 5   0.19   $570.70
57198 1 1.25 4.375 7 5   0.25   $589.31
57200 1 1.25 6 9 5   0.01   $614.26
57201 1 1.25 6 9 5   0.015   $614.26
57202 1 1.25 6 9 5   0.03   $614.38
57203 1 1.25 6 9 5   0.06   $664.88
57204 1 1.25 6 9 5   0.09   $636.73
57205 1 1.25 6 9 5   0.125   $626.24
57206 1 1.25 6 9 5   0.19   $566.84
57207 1 1.25 6 9 5   0.25   $678.21
