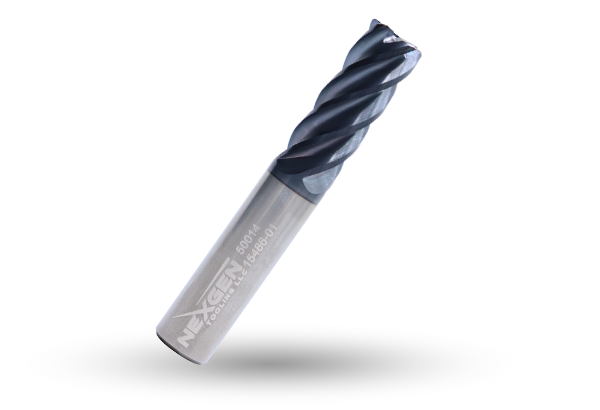

5 Flute End Mill A-ProMAX Coated

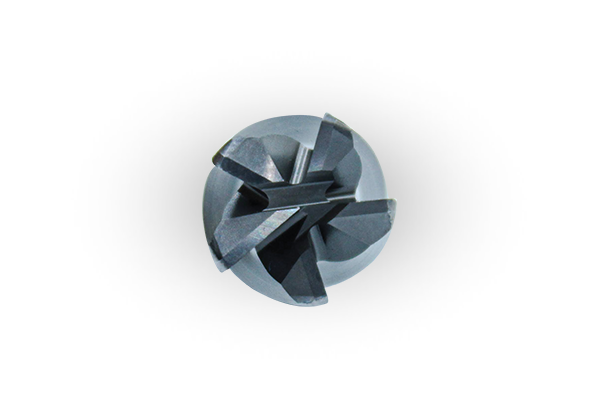

5 Flute End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 5-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 40 Degree Helix
  • 5-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
HEM
POCKETING
COUNTURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
50001 0.125 0.250 1.50 5   0.01   $22.67
50002 0.125 0.5 2.00 5   0.01   $23.80
50003 0.1875 0.3125 2.5 5   0.01   $32.36
50004 0.1875 0.5625 2.5 5   0.01   $29.83
50005 0.25 0.375 2.5 5   0.020   $37.54
50006 0.25 0.75 2.5 5   0.020   $36.27
50007 0.25 1 3 5   0.020   $52.96
50008 0.3125 0.4375 2.00 5   0.020   $45.12
50009 0.3125 0.8125 2.5 5   0.020   $49.61
50010 0.375 0.5 2.00 5   0.020   $55.48
50011 0.375 1 3 5   0.020   $62.91
50012 0.5 0.625 2.5 5   0.03   $91.97
50013 0.5 1 3 5   0.03   $98.01
50014 0.5 1.25 3 5   0.03   $99.09
50015 0.5 1.625 4 5   0.03   $113.28
50016 0.625 0.75 3 5   0.03   $170.59
50017 0.625 1.25 3.50 5   0.03   $184.27
50018 0.625 1.625 3.50 5   0.03   $194.44
50019 0.75 1 3 5   0.03   $258.55
50020 0.75 1.500 4 5   0.03   $271.37
50021 0.75 1.625 4 5   0.03   $271.37
50022 1 1.25 4.50 5   0.03   $421.85
50023 1 2.000 4.50 5   0.03   $451.37
50024 0.5 0.625 2.5 5   0.06   $93.74
50026 0.125 0.250 1.50 5   0.015   $22.89
50027 0.125 0.250 1.50 5   0.03   $23.34
50029 0.125 0.5 2.00 5   0.015   $24.04
50030 0.125 0.5 2.00 5   0.03   $24.51
50032 0.125 0.75 2.5 5   0.01   $24.76
50033 0.125 0.75 2.5 5   0.015   $25.00
50034 0.125 0.75 2.5 5   0.03   $25.49
50036 0.1875 0.3125 2.00 5   0.015   $31.13
50037 0.1875 0.3125 2.00 5   0.03   $31.75
50039 0.1875 0.5625 2.5 5   0.015   $30.14
50040 0.1875 0.5625 2.5 5   0.03   $30.73
50042 0.1875 0.75 2.5 5   0.01   $31.34
50043 0.1875 0.75 2.5 5   0.015   $31.64
50044 0.1875 0.75 2.5 5   0.03   $32.26
50046 0.25 0.375 2.00 5   0.01   $32.58
50047 0.25 0.375 2.00 5   0.015   $32.91
50048 0.25 0.375 2.00 5   0.03   $33.55
50049 0.25 0.375 2.00 5   0.06   $34.20
50051 0.25 0.5 2.5 5   0.01   $35.19
50052 0.25 0.5 2.5 5   0.015   $35.53
50053 0.25 0.5 2.5 5   0.020   $35.88
50054 0.25 0.5 2.5 5   0.03   $36.23
50055 0.25 0.5 2.5 5   0.06   $36.92
50057 0.25 0.75 2.5 5   0.01   $35.57
50058 0.25 0.75 2.5 5   0.015   $35.92
50059 0.25 0.75 2.5 5   0.03   $36.62
50060 0.25 0.75 2.5 5   0.06   $37.32
50062 0.25 1 3 5   0.01   $51.93
50063 0.25 1 3 5   0.015   $52.45
50064 0.25 1 3 5   0.03   $53.48
50065 0.25 1 3 5   0.06   $54.50
50067 0.25 1.25 3 5   0.01   $52.96
50068 0.25 1.25 3 5   0.015   $53.49
50069 0.25 1.25 3 5   0.020   $54.02
50070 0.25 1.25 3 5   0.03   $54.54
50071 0.25 1.25 3 5   0.06   $55.58
50073 0.3125 0.4375 2.00 5   0.01   $44.25
50074 0.3125 0.4375 2.00 5   0.015   $44.69
50075 0.3125 0.4375 2.00 5   0.03   $45.56
50076 0.3125 0.4375 2.00 5   0.06   $46.45
50078 0.3125 0.8125 2.5 5   0.01   $48.64
50079 0.3125 0.8125 2.5 5   0.015   $49.12
50080 0.3125 0.8125 2.5 5   0.03   $50.09
50081 0.3125 0.8125 2.5 5   0.06   $51.06
50083 0.375 0.5 2.00 5   0.01   $54.41
50084 0.375 0.5 2.00 5   0.015   $54.95
50085 0.375 0.5 2.00 5   0.03   $56.03
50086 0.375 0.5 2.00 5   0.06   $57.10
50087 0.375 0.5 2.00 5   0.09   $58.17
50088 0.375 0.5 2.00 5   0.120   $61.41
50089 0.375 0.5 2.00 5   0.125   $61.41
50091 0.375 1 3 5   0.01   $61.70
50092 0.375 1 3 5   0.015   $62.30
50093 0.375 1 3 5   0.03   $63.53
50094 0.375 1 3 5   0.06   $64.74
50095 0.375 1 3 5   0.09   $65.97
50096 0.375 1 3 5   0.120   $69.63
50097 0.375 1 3 5   0.125   $69.63
50099 0.375 1.25 3 5   0.01   $66.63
50100 0.375 1.25 3 5   0.015   $67.29
50101 0.375 1.25 3 5   0.020   $67.95
50102 0.375 1.25 3 5   0.03   $68.61
50103 0.375 1.25 3 5   0.06   $69.93
50104 0.375 1.25 3 5   0.09   $71.24
50105 0.375 1.25 3 5   0.120   $75.20
50106 0.375 1.25 3 5   0.125   $75.20
50108 0.375 1.500 3.50 5   0.01   $70.28
50109 0.375 1.500 3.50 5   0.015   $70.98
50110 0.375 1.500 3.50 5   0.020   $71.68
50111 0.375 1.500 3.50 5   0.03   $72.37
50112 0.375 1.500 3.50 5   0.06   $73.77
50113 0.375 1.500 3.50 5   0.09   $75.16
50114 0.375 1.500 3.50 5   0.120   $79.34
50115 0.375 1.500 3.50 5   0.125   $79.34
50117 0.5 0.625 2.5 5   0.01   $89.32
50118 0.5 0.625 2.5 5   0.015   $90.20
50119 0.5 0.625 2.5 5   0.020   $91.08
50120 0.5 0.625 2.5 5   0.09   $95.51
50121 0.5 0.625 2.5 5   0.120   $100.82
50122 0.5 0.625 2.5 5   0.125   $100.82
50124 0.5 1 3 5   0.01   $95.55
50125 0.5 1 3 5   0.015   $96.50
50126 0.5 1 3 5   0.020   $97.45
50127 0.5 1 3 5   0.06   $100.28
50128 0.5 1 3 5   0.09   $102.17
50129 0.5 1 3 5   0.120   $107.84
50130 0.5 1 3 5   0.125   $107.84
50132 0.5 1.25 3 5   0.01   $96.22
50133 0.5 1.25 3 5   0.015   $97.17
50134 0.5 1.25 3 5   0.020   $98.12
50135 0.5 1.25 3 5   0.06   $100.99
50136 0.5 1.25 3 5   0.09   $102.89
50137 0.5 1.25 3 5   0.120   $108.60
50138 0.5 1.25 3 5   0.125   $108.60
50140 0.5 1.625 4 5   0.01   $110.02
50141 0.5 1.625 4 5   0.015   $111.11
50142 0.5 1.625 4 5   0.020   $112.20
50143 0.5 1.625 4 5   0.06   $115.46
50144 0.5 1.625 4 5   0.09   $117.64
50145 0.5 1.625 4 5   0.120   $124.18
50146 0.5 1.625 4 5   0.125   $124.18
50148 0.5 2.000 4 5   0.01   $115.52
50149 0.5 2.000 4 5   0.015   $116.66
50150 0.5 2.000 4 5   0.020   $117.80
50151 0.5 2.000 4 5   0.03   $118.94
50152 0.5 2.000 4 5   0.06   $121.23
50153 0.5 2.000 4 5   0.09   $123.53
50154 0.5 2.000 4 5   0.120   $130.39
50155 0.5 2.000 4 5   0.125   $130.39
50157 0.625 0.75 3 5   0.06   $173.86
50158 0.625 0.75 3 5   0.09   $177.16
50159 0.625 0.75 3 5   0.120   $186.99
50160 0.625 0.75 3 5   0.125   $186.99
50162 0.625 1.25 3.50 5   0.06   $187.81
50163 0.625 1.25 3.50 5   0.09   $191.37
50164 0.625 1.25 3.50 5   0.120   $201.99
50165 0.625 1.25 3.50 5   0.125   $201.99
50167 0.625 1.625 3.50 5   0.06   $198.17
50168 0.625 1.625 3.50 5   0.09   $201.91
50169 0.625 1.625 3.50 5   0.120   $213.13
50170 0.625 1.625 3.50 5   0.125   $213.13
50172 0.625 2.125 4 5   0.03   $209.06
50173 0.625 2.125 4 5   0.06   $213.08
50174 0.625 2.125 4 5   0.09   $217.10
50175 0.625 2.125 4 5   0.120   $229.16
50176 0.625 2.125 4 5   0.125   $229.16
50178 0.625 2.500 5 5   0.03   $220.52
50179 0.625 2.500 5 5   0.06   $224.77
50180 0.625 2.500 5 5   0.09   $229.01
50181 0.625 2.500 5 5   0.120   $241.73
50182 0.625 2.500 5 5   0.125   $241.73
50184 0.75 1 3 5   0.01   $251.09
50185 0.75 1 3 5   0.015   $253.58
50186 0.75 1 3 5   0.020   $256.07
50187 0.75 1 3 5   0.06   $263.53
50188 0.75 1 3 5   0.09   $268.50
50189 0.75 1 3 5   0.120   $283.42
50190 0.75 1 3 5   0.125   $283.42
50191 0.75 1 3 5   0.19   $293.35
50192 0.75 1 3 5   0.25   $298.32
50194 0.75 1.625 4 5   0.01   $263.55
50195 0.75 1.625 4 5   0.015   $266.15
50196 0.75 1.625 4 5   0.020   $268.76
50197 0.75 1.625 4 5   0.06   $276.60
50198 0.75 1.625 4 5   0.09   $281.82
50199 0.75 1.625 4 5   0.120   $297.47
50200 0.75 1.625 4 5   0.125   $297.47
50201 0.75 1.625 4 5   0.19   $307.90
50202 0.75 1.625 4 5   0.25   $313.13
50204 0.75 2.250 5 5   0.01   $284.79
50205 0.75 2.250 5 5   0.015   $287.61
50206 0.75 2.250 5 5   0.020   $290.43
50207 0.75 2.250 5 5   0.03   $293.25
50208 0.75 2.250 5 5   0.06   $298.89
50209 0.75 2.250 5 5   0.09   $304.53
50210 0.75 2.250 5 5   0.120   $321.45
50211 0.75 2.250 5 5   0.125   $321.45
50212 0.75 2.250 5 5   0.19   $332.73
50213 0.75 2.250 5 5   0.25   $338.37
50215 0.75 2.750 5 5   0.01   $289.92
50216 0.75 2.750 5 5   0.015   $292.78
50217 0.75 2.750 5 5   0.020   $295.65
50218 0.75 2.750 5 5   0.03   $298.53
50219 0.75 2.750 5 5   0.06   $304.27
50220 0.75 2.750 5 5   0.09   $310.00
50221 0.75 2.750 5 5   0.120   $327.23
50222 0.75 2.750 5 5   0.125   $327.23
50223 0.75 2.750 5 5   0.19   $338.71
50224 0.75 2.750 5 5   0.25   $344.45
50226 0.75 3.250 6 5   0.01   $321.81
50227 0.75 3.250 6 5   0.015   $324.99
50228 0.75 3.250 6 5   0.020   $328.17
50229 0.75 3.250 6 5   0.03   $331.37
50230 0.75 3.250 6 5   0.06   $337.74
50231 0.75 3.250 6 5   0.09   $344.10
50232 0.75 3.250 6 5   0.120   $363.23
50233 0.75 3.250 6 5   0.125   $363.23
50234 0.75 3.250 6 5   0.19   $375.97
50235 0.75 3.250 6 5   0.25   $382.34
50237 1 1.25 4.50 5   0.06   $429.96
50238 1 1.25 4.50 5   0.09   $438.08
50239 1 1.25 4.50 5   0.120   $462.41
50240 1 1.25 4.50 5   0.125   $462.41
50241 1 1.25 4.50 5   0.19   $478.64
50242 1 1.25 4.50 5   0.25   $486.74
50244 1 2.000 4.50 5   0.06   $460.06
50245 1 2.000 4.50 5   0.09   $468.74
50246 1 2.000 4.50 5   0.120   $494.78
50247 1 2.000 4.50 5   0.125   $494.78
50248 1 2.000 4.50 5   0.19   $512.14
50249 1 2.000 4.50 5   0.25   $520.82
50251 1 2.625 5 5   0.03   $492.00
50252 1 2.625 5 5   0.06   $501.46
50253 1 2.625 5 5   0.09   $510.92
50254 1 2.625 5 5   0.120   $539.31
50255 1 2.625 5 5   0.125   $539.31
50256 1 2.625 5 5   0.19   $558.23
50257 1 2.625 5 5   0.25   $567.69
50259 1 3.250 6 5   0.03   $526.43
50260 1 3.250 6 5   0.06   $536.56
50261 1 3.250 6 5   0.09   $546.69
50262 1 3.250 6 5   0.120   $577.06
50263 1 3.250 6 5   0.125   $577.06
50264 1 3.250 6 5   0.19   $597.31
50265 1 3.250 6 5   0.25   $607.42
50267 1 4.250 7 5   0.03   $563.29
50268 1 4.250 7 5   0.06   $574.13
50269 1 4.250 7 5   0.09   $584.96
50270 1 4.250 7 5   0.120   $617.45
50271 1 4.250 7 5   0.125   $617.45
50272 1 4.250 7 5   0.19   $639.12
50273 1 4.250 7 5   0.25   $649.95
50278 0.25 0.375 2.00 5   0.020   $33.22
50279 0.1875 0.3125 2.00 5   0.01   $30.82
50280 0.125 0.250 1.50 5   0.020   $23.11
50281 0.125 0.5 2.00 5   0.020   $24.27
50282 0.125 0.75 2.5 5   0.020   $25.25
50283 0.1875 0.3125 2.00 5   0.020   $31.44
50284 0.1875 0.5625 2.5 5   0.020   $30.43
50285 0.1875 0.75 2.5 5   0.020   $31.96
50286 0.625 0.75 3 5   0.01   $165.67
50287 0.625 0.75 3 5   0.015   $167.31
50288 0.625 0.75 3 5   0.020   $168.95
50289 0.625 1.25 3.50 5   0.01   $178.96
50290 0.625 1.25 3.50 5   0.015   $180.73
50291 0.625 1.25 3.50 5   0.020   $182.50
50292 0.625 1.625 3.50 5   0.01   $188.82
50293 0.625 1.625 3.50 5   0.015   $190.70
50294 0.625 1.625 3.50 5   0.020   $192.56
50295 0.625 2.125 4 5   0.01   $203.03
50296 0.625 2.125 4 5   0.015   $205.03
50297 0.625 2.125 4 5   0.020   $207.05
50298 0.625 2.500 5 5   0.01   $214.16
50299 0.625 2.500 5 5   0.015   $216.28
50300 0.625 2.500 5 5   0.020   $218.41
50301 1 1.25 4.50 5   0.01   $409.68
50302 1 1.25 4.50 5   0.015   $413.73
50303 1 1.25 4.50 5   0.020   $417.79
50304 1 2.000 4.50 5   0.01   $438.36
50305 1 2.000 4.50 5   0.015   $442.69
50306 1 2.000 4.50 5   0.020   $447.04
50307 1 2.625 5 5   0.01   $477.81
50308 1 2.625 5 5   0.015   $482.54
50309 1 2.625 5 5   0.020   $487.27
50310 1 3.250 6 5   0.01   $511.26
50311 1 3.250 6 5   0.015   $516.32
50312 1 3.250 6 5   0.020   $521.38
50313 1 4.250 7 5   0.01   $547.05
50314 1 4.250 7 5   0.015   $552.46
50315 1 4.250 7 5   0.020   $557.87
50317 0.375 0.75 2.5 5   0.01   $57.38
50318 0.375 0.75 2.5 5   0.015   $57.94
50319 0.375 0.75 2.5 5   0.020   $58.52
50320 0.375 0.75 2.5 5   0.03   $59.08
50321 0.375 0.75 2.5 5   0.06   $60.22
50322 0.375 0.75 2.5 5   0.09   $61.36
50323 0.375 0.75 2.5 5   0.120   $64.77
50324 0.375 0.75 2.5 5   0.125   $64.77

Need help deciding?
Talk to NEXI, our AI assistant!

Prefer to speak with a team member?
Reach out to our customer service team
