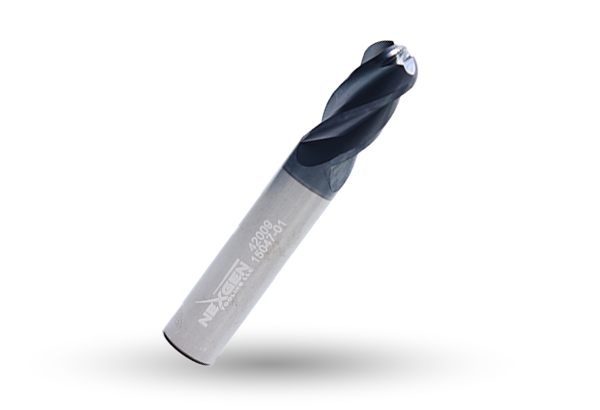

4 Flute Reduced Neck Ballnose End Mill A-ProMAX Coated

4 Flute Reduced Neck Ballnose End Mill A-ProMAX Coated

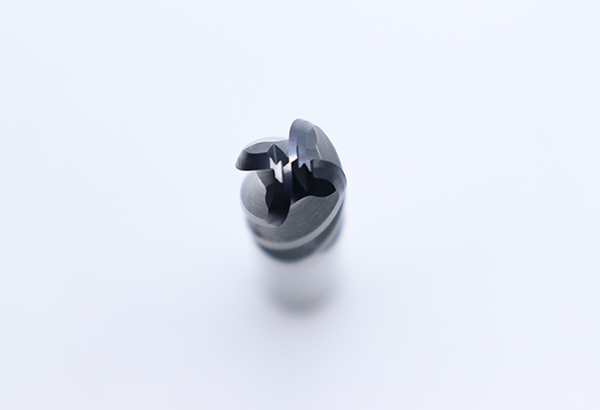

4 Flute Reduced Neck Ballnose End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600
degrees F, A-ProMAX coating the ideal tool coating for ferrous steel
applications.

Variable index design reduced harmonic vibrations, enabling higher
metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 35 Degree Helix
  • 4-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • Reduced Neck
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
HEM
POCKETING
CONTOURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
h6 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
47500 0.125 0.156 0.5 2.5 4     $45.78
47501 0.125 0.156 0.75 3 4     $46.60
47502 0.125 0.156 1 3 4     $47.41
47503 0.1875 0.2185 0.5 2.5 4     $47.97
47504 0.1875 0.2185 0.75 3 4     $50.99
47505 0.1875 0.2185 1 3 4     $53.45
47506 0.25 0.375 0.75 3 4     $70.03
47507 0.25 0.375 1.125 3 4     $74.14
47508 0.25 0.375 1.625 3 4     $75.10
47509 0.25 0.375 2.125 4 4     $75.93
47510 0.25 0.375 2.5 4 4     $77.16
47511 0.3125 0.4375 1.125 4 4     $86.90
47512 0.3125 0.4375 1.75 4 4     $90.16
47513 0.3125 0.4375 2.125 4 4     $93.43
47514 0.375 0.5 1.125 3 4     $105.92
47515 0.375 0.5 1.625 3 4     $108.62
47516 0.375 0.5 2.125 4 4     $111.32
47517 0.375 0.5 2.5 5 4     $125.95
47518 0.375 0.5 3.125 6 4     $150.64
47519 0.5 0.625 1.375 3 4     $150.67
47520 0.5 0.625 2.25 4 4     $171.44
47521 0.5 0.625 3.375 5 4     $223.14
47522 0.5 0.625 3.75 6 4     $238.76
47523 0.625 0.75 2.375 4 4     $329.50
47524 0.625 0.75 3.375 6 4     $354.78
47525 0.75 1 2 4 4     $362.74
47526 0.75 1 2.5 5 4     $527.89
47527 0.75 1 3.375 6 4     $541.03
47528 0.75 1 4.125 7 4     $548.18
47529 1 1.25 2.625 5 4     $783.35
47530 1 1.25 3.375 6 4     $817.82
47531 1 1.25 4.375 7 4     $839.60
47532 1 1.25 6 9 4     $958.24
