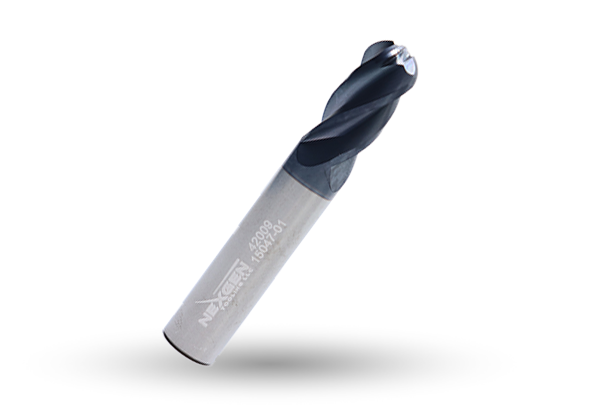

4 Flute Ballnose End Mill A-ProMAX Coated

4 Flute Ballnose End Mill A-ProMAX Coated

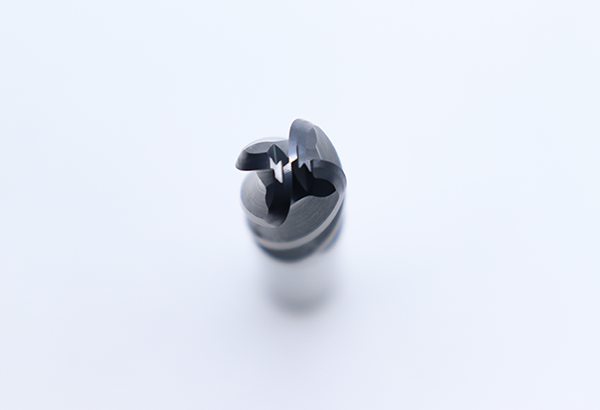

4 Flute Ballnose End Mill A-ProMAX Coated - Image 2

Overview

Premium high performance 4-flute carbide end mills for Ferrous materials.

With a hardness of 3,500 Hv and an oxidation temperature >1600 degrees F, A-ProMAX coating the ideal tool coating for ferrous steel applications.

Variable index design reduced harmonic vibrations, enabling higher metal removal rates via faster speeds and increased depth of cut.

Features & Benefits

  • 35 Degree Helix
  • 4-Flute
  • Center Cutting
  • Variable Pitch
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
FULL SLOTTING
HEAVY ROUGHING
POCKETING
CONTOURING FINISHING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
+.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
42000 0.125 0.250 1.50 4     $24.62
42001 0.125 0.5 2.00 4     $25.36
42002 0.1875 0.3125 2.00 4     $29.70
42003 0.1875 0.5625 2.5 4     $31.78
42004 0.25 0.375 2.00 4     $35.27
42005 0.25 0.75 2.5 4     $38.24
42006 0.375 0.5 2.00 4     $55.41
42007 0.375 1 3 4     $63.43
42008 0.5 0.625 2.5 4     $91.49
42009 0.5 1 3 4     $98.35
42010 0.5 1.25 3 4     $99.52
42011 0.625 1 3 4     $179.34
42012 0.75 1 4 4     $269.04
42013 1 1.25 4.50 4     $407.61
42014 0.125 0.75 2.5 4     $26.37
42015 0.1875 0.75 2.5 4     $33.37
42016 0.25 0.5 2.5 4     $37.48
42017 0.25 1 3 4     $55.31
42018 0.25 1.25 3 4     $57.34
42019 0.3125 0.4375 2.00 4     $45.79
42020 0.3125 0.8125 2.5 4     $50.02
42021 0.375 1.25 3 4     $68.50
42022 0.375 1.500 3.50 4     $72.61
42023 0.5 1.625 4 4     $113.46
42024 0.5 2.000 4 4     $119.14
42025 0.625 0.75 3 4     $167.42
42026 0.625 1.25 3.50 4     $182.62
42027 0.625 1.625 3.50 4     $191.74
42028 0.625 2.125 4 4     $205.17
42029 0.625 2.500 5 4     $217.48
42030 0.75 1.625 4 4     $271.61
42031 0.75 2.250 5 4     $290.61
42032 0.75 2.750 5 4     $295.85
42033 0.75 3.250 6 4     $328.39
42034 1 2.000 4.50 4     $443.23
42035 1 2.625 5 4     $483.13
42036 1 3.250 6 4     $516.94
42037 1 4.250 7 4     $553.13
42038 0.75 1 3 4     $256.23
42039 0.375 0.75 2.5 4     $59.28
