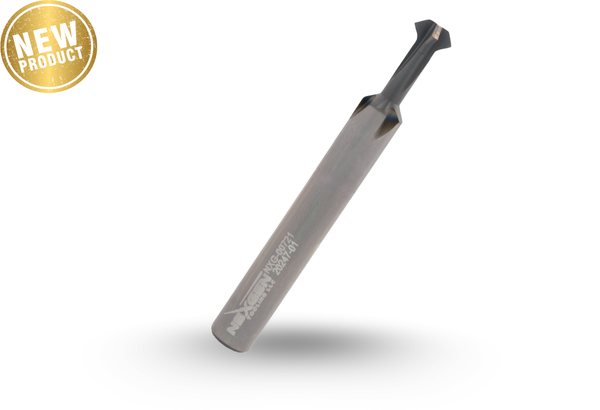

4-6 Flute Double Angle Chamfer Mill A-ProMAX Coated

4-6 Flute Double Angle Chamfer Mill A-ProMAX Coated

Overview

Premium high performance carbide double-angle chamfer mills for use in ferrous and non-ferrous alloys.

Ideal for chamferring, deburring, pocket chamfering and hole chamfering

Features & Benefits

  • Straight Flute
  • 4-6 Flute
  • Non-Center Cutting
  • h6 Shank
  • Micrograin Carbide
  • A-ProMAX
Bevel Edge
Chamfered Hole
HEM
Pocketing

Tolerances

Cut Diameter Shank Diameter Length of Cut Overall Length
+.000/-.002 h6 +.032/-.000 +/-.050

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * * * * * * * * * * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ STOCK
10000 0.125 0.0630 0.2500 1.50 4, 6       $63.32
10001 0.1875 0.0950 0.3125 2.00 4, 6       $64.52
10002 0.25 0.1250 0.4375 2.00 4, 6       $78.78
10003 0.3125 0.1250 0.5 2.5 4, 6       $107.43
10004 0.375 0.1250 0.6250 2.5 4, 6       $111.08
10005 0.5 0.1875 0.75 3 4, 6       $152.24
10006 0.625 0.250 1.2500 3.50 4, 6       $259.71
10007 0.75 0.250 1.5000 4 4, 6       $308.87
