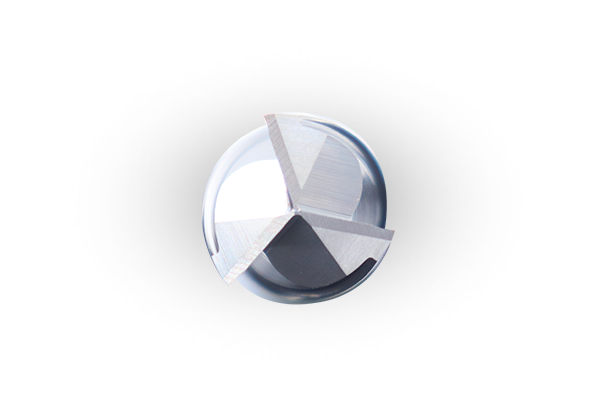

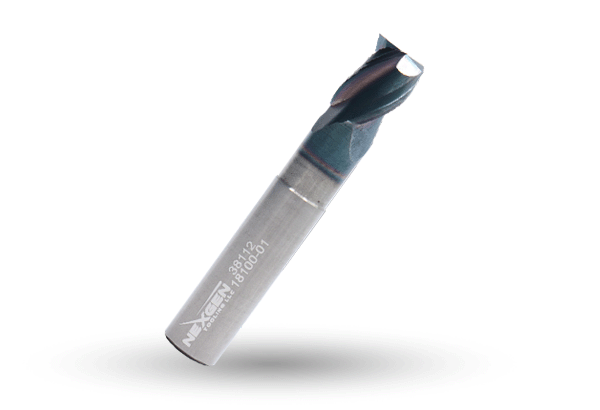

3 Flute Reduced Neck Square End Mill X-ProMAX Coated

|
Tool Tolerances
  • Cut Diameter: h6
  • Shank Diameter: h6
  • Length of Cut: +.032/-.000
  • Overall Length: +/- .050
  • Corner Radius: +/- .002
Make a Selection

Properties

• Tool Dimensions

Cut Diameter

Shank Diameter

LOC

OAL

• End Construction

Radius Dimensions

• Pricing and Availability

Price

In Stock

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
38000 0.1250 0.156 0.5 2.50 3     $38.69
38004 0.1250 0.156 0.75 3.00 3     $43.58
38008 0.1250 0.156 1 3.00 3     $45.45
38012 0.1875 0.219 0.5 2.50 3     $43.58
38016 0.1875 0.219 0.75 3.00 3     $45.97
38020 0.1875 0.219 1 3.00 3     $48.26
38024 0.2500 0.375 0.75 2.50 3     $39.62
38029 0.2500 0.375 1.125 3.00 3     $41.39
38034 0.2500 0.375 1.375 3.00 3     $42.54
38039 0.2500 0.375 1.625 3.00 3     $43.78
38044 0.2500 0.375 1.875 4.00 3     $48.05
38049 0.2500 0.375 2.125 4.00 3     $48.98
38054 0.2500 0.375 2.5 4.00 3     $49.92
38059 0.3125 0.4375 1.125 4.00 3     $50.13
38064 0.3125 0.4375 1.75 4.00 3     $52.94
38069 0.3125 0.4375 2.125 4.00 3     $55.74
38074 0.3750 0.500 1.125 3.00 3     $51.06
38080 0.3750 0.500 1.625 3.00 3     $53.87
38086 0.3750 0.500 2.125 4.00 3     $62.40
38092 0.3750 0.500 2.5 5.00 3     $69.26
38098 0.3750 0.500 3.125 6.00 3     $72.90
38104 0.5000 0.625 1.375 3.00 3     $76.02
38111 0.5000 0.625 2.25 4.00 3     $85.28
38118 0.5000 0.625 3.375 5.00 3     $106.50
38125 0.5000 0.625 3.75 6.00 3     $110.24
38132 0.6250 0.750 2.375 4.00 3     $146.02
38139 0.6250 0.750 3.375 6.00 3     $166.30
38146 0.7500 1.000 2 4.00 3     $206.54
38155 0.7500 1.000 2.5 5.00 3     $234.83
38164 0.7500 1.000 3.375 6.00 3     $273.73
38173 0.7500 1.000 4.125 7.00 3     $299.21
38182 1.0000 1.250 2.625 5.00 3     $355.37
38191 1.0000 1.250 3.375 6.00 3     $384.38
38200 1.0000 1.250 4.375 7.00 3     $451.05
38209 1.0000 1.250 6 9.00 3     $483.50
*Low stock items are restocked in 3-5 days

Applications

RECOMMENDED APPLICATIONS

FULL SLOTTING

HEAVY ROUGHING

HEM

POCKETING

CONTOURING FINISHING

RAMPING
