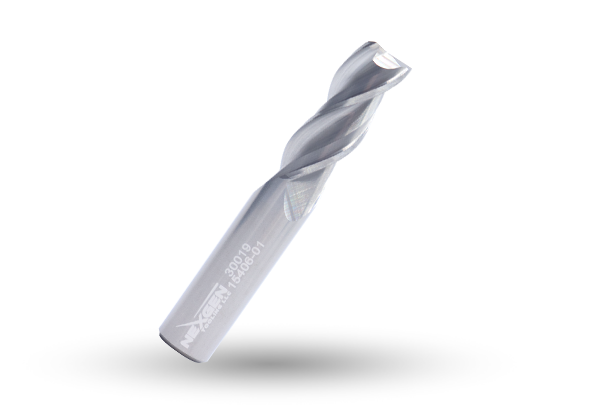

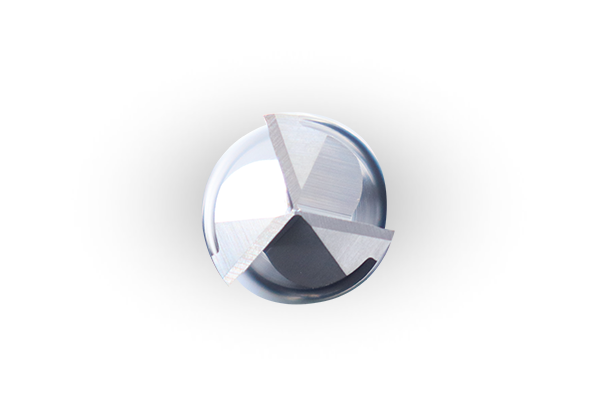

3 Flute End Mill Uncoated

|
Tool Tolerances
  • Cut Diameter: h6
  • Shank Diameter: h6
  • Length of Cut: +.032/-.000
  • Overall Length: +/- .050
  • Corner Radius: +/- .002
Make a Selection

Properties

• Tool Dimensions

Cut Diameter

Shank Diameter

LOC

OAL

• End Construction

Radius Dimensions

• Pricing and Availability

Price

In Stock

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
31000 0.1250 0.250 1.375 1.50 3   0.010   $16.27
31001 0.1250 0.250 3.375 1.50 3   0.015   $16.43
31002 0.1250 0.250 3.75 1.50 3   0.020   $16.60
31003 0.1250 0.250 2 1.50 3   0.030   $16.76
31004 0.1250 0.500 3.375 2.00 3   0.010   $18.72
31005 0.1250 0.500 0.5 2.00 3   0.015   $18.90
31006 0.1250 0.500 0.75 2.00 3   0.020   $19.09
31007 0.1250 0.500 1 2.00 3   0.030   $19.27
31008 0.1250 0.750 1.375 2.50 3   0.010   $19.09
31009 0.1250 0.750 1.875 2.50 3   0.015   $19.28
31010 0.1250 0.750 2.125 2.50 3   0.020   $19.47
31011 0.1250 0.750 1.75 2.50 3   0.030   $19.65
31012 0.1875 0.313 2.5 2.00 3   0.010   $19.06
31013 0.1875 0.313 2.25 2.00 3   0.015   $19.25
31014 0.1875 0.313 3.375 2.00 3   0.020   $19.43
31015 0.1875 0.313 3.75 2.00 3   0.030   $19.81
31016 0.1875 0.563 3.375 2.50 3   0.010   $20.85
31017 0.1875 0.563 4.375 2.50 3   0.015   $21.05
31018 0.1875 0.563 1.125 2.50 3   0.020   $21.26
31019 0.1875 0.563 1.375 2.50 3   0.030   $21.47
31020 0.1875 0.750 2.125 2.50 3   0.010   $22.51
31021 0.1875 0.750 1.125 2.50 3   0.015   $22.74
31022 0.1875 0.750 1.625 2.50 3   0.020   $22.96
31023 0.1875 0.750 2.125 2.50 3   0.030   $23.18
31024 0.2500 0.375 3.375 2.00 3   0.010   $23.22
31025 0.2500 0.375 4.125 2.00 3   0.015   $23.46
31026 0.2500 0.375 4.375 2.00 3   0.020   $23.69
31027 0.2500 0.375 6 2.00 3   0.030   $23.91
31028 0.2500 0.375 2.125 2.00 3   0.060   $24.38
31029 0.2500 0.500 3.375 2.50 3   0.010   $24.39
31030 0.2500 0.500 3.75 2.50 3   0.015   $24.62
31031 0.2500 0.500 2.375 2.50 3   0.020   $24.87
31032 0.2500 0.500 3.375 2.50 3   0.030   $25.11
31033 0.2500 0.500 3.375 2.50 3   0.060   $25.60
31034 0.2500 0.750 6 2.50 3   0.010   $25.61
31035 0.2500 0.750 1.375 2.50 3   0.015   $25.86
31036 0.2500 0.750 3.75 2.50 3   0.020   $26.12
31037 0.2500 0.750 2.375 2.50 3   0.030   $26.36
31038 0.2500 0.750 2.5 2.50 3   0.060   $26.87
31039 0.2500 1.000 4.375 3.00 3   0.010   $27.91
31040 0.2500 1.000 6 3.00 3   0.015   $28.19
31041 0.2500 1.000 2 3.00 3   0.020   $28.46
31042 0.2500 1.000 4.125 3.00 3   0.030   $28.74
31043 0.2500 1.000 3.375 3.00 3   0.060   $29.29
31044 0.2500 1.250 4.125 3.00 3   0.010   $29.31
31045 0.2500 1.250 2.625 3.00 3   0.015   $29.60
31046 0.2500 1.250 6 3.00 3   0.020   $29.89
31047 0.2500 1.250 0.5 3.00 3   0.030   $30.18
31048 0.2500 1.250 0.5 3.00 3   0.060   $30.76
31049 0.3125 0.4375 0.75 2.00 3   0.010   $25.75
31050 0.3125 0.4375 1.625 2.00 3   0.015   $26.00
31051 0.3125 0.4375 1.75 2.00 3   0.020   $26.26
31052 0.3125 0.4375 1.625 2.00 3   0.030   $26.51
31053 0.3125 0.4375 2.125 2.00 3   0.060   $27.02
31054 0.3125 0.813 2.375 2.50 3   0.010   $29.35
31055 0.3125 0.813 3.375 2.50 3   0.015   $29.64
31056 0.3125 0.813 3.375 2.50 3   0.020   $29.92
31057 0.3125 0.813 4.125 2.50 3   0.030   $30.22
31058 0.3125 0.813 4.375 2.50 3   0.060   $30.80
31059 0.3125 1.250 0.75 3.00 3   0.010   $34.63
31060 0.3125 1.250 0.75 3.00 3   0.015   $34.97
31061 0.3125 1.250 1 3.00 3   0.020   $35.32
31062 0.3125 1.250 1.625 3.00 3   0.030   $35.66
31063 0.3125 1.250 2.125 3.00 3   0.060   $36.35
31064 0.3750 0.500 2.125 2.00 3   0.010   $30.67
31065 0.3750 0.500 2.5 2.00 3   0.015   $30.96
31066 0.3750 0.500 2.25 2.00 3   0.020   $31.27
31067 0.3750 0.500 3.375 2.00 3   0.030   $31.58
31068 0.3750 0.500 3.375 2.00 3   0.060   $32.18
31069 0.3750 0.500 2 2.00 3   0.090   $32.79
31070 0.3750 0.500 2.5 2.00 3   0.120   $33.40
31071 0.3750 0.500 3.375 2.00 3   0.125   $33.40
31072 0.3750 0.750 0.75 2.50 3   0.010   $32.81
31073 0.3750 0.750 1 2.50 3   0.015   $33.14
31074 0.3750 0.750 1 2.50 3   0.020   $33.46
31075 0.3750 0.750 1.125 2.50 3   0.030   $33.78
31076 0.3750 0.750 2.125 2.50 3   0.060   $34.44
31077 0.3750 0.750 2.5 2.50 3   0.090   $35.09
31078 0.3750 0.750 2.125 2.50 3   0.120   $35.73
31079 0.3750 0.750 1.125 2.50 3   0.125   $35.73
31080 0.3750 1.000 1.375 3.00 3   0.010   $34.64
31081 0.3750 1.000 2.25 3.00 3   0.015   $34.98
31082 0.3750 1.000 2.375 3.00 3   0.020   $35.32
31083 0.3750 1.000 3.375 3.00 3   0.030   $35.66
31084 0.3750 1.000 3.375 3.00 3   0.060   $36.36
31085 0.3750 1.000 4.125 3.00 3   0.090   $37.04
31086 0.3750 1.000 4.375 3.00 3   0.120   $37.73
31087 0.3750 1.000 0.5 3.00 3   0.125   $37.73
31088 0.3750 1.250 1.125 3.00 3   0.010   $35.49
31089 0.3750 1.250 2.5 3.00 3   0.015   $35.84
31090 0.3750 1.250 1.125 3.00 3   0.020   $36.19
31091 0.3750 1.250 1.75 3.00 3   0.030   $36.54
31092 0.3750 1.250 2.125 3.00 3   0.060   $37.25
31093 0.3750 1.250 2.125 3.00 3   0.090   $37.95
31094 0.3750 1.250 2.5 3.00 3   0.120   $38.65
31095 0.3750 1.250 2.25 3.00 3   0.125   $38.65
31096 0.3750 1.500 2 3.50 3   0.010   $39.39
31097 0.3750 1.500 4.125 3.50 3   0.015   $39.78
31098 0.3750 1.500 2.625 3.50 3   0.020   $40.17
31099 0.3750 1.500 6 3.50 3   0.030   $40.56
31100 0.3750 1.500 0.5 3.50 3   0.060   $41.34
31101 0.3750 1.500 0.5 3.50 3   0.090   $42.12
31102 0.3750 1.500 0.75 3.50 3   0.120   $42.90
31103 0.3750 1.500 1 3.50 3   0.125   $42.90
31104 0.5000 0.625 1.125 2.50 3   0.010   $45.83
31105 0.5000 0.625 2.5 2.50 3   0.015   $46.29
31106 0.5000 0.625 3.125 2.50 3   0.020   $46.75
31107 0.5000 0.625 3.375 2.50 3   0.030   $47.20
31108 0.5000 0.625 3.75 2.50 3   0.060   $48.11
31109 0.5000 0.625 2 2.50 3   0.090   $49.01
31110 0.5000 0.625 2.5 2.50 3   0.120   $49.93
31111 0.5000 0.625 2.625 2.50 3   0.125   $49.93
31112 0.5000 1.000 1.125 3.00 3   0.010   $48.13
31113 0.5000 1.000 1.625 3.00 3   0.015   $48.61
31114 0.5000 1.000 2.125 3.00 3   0.020   $49.09
31115 0.5000 1.000 1.75 3.00 3   0.030   $49.57
31116 0.5000 1.000 2.125 3.00 3   0.060   $50.52
31117 0.5000 1.000 2.125 3.00 3   0.090   $51.46
31118 0.5000 1.000 2.5 3.00 3   0.120   $52.42
31119 0.5000 1.000 2.25 3.00 3   0.125   $52.42
31120 0.5000 1.250 2 3.00 3   0.010   $51.02
31121 0.5000 1.250 4.125 3.00 3   0.015   $51.53
31122 0.5000 1.250 2.625 3.00 3   0.020   $52.02
31123 0.5000 1.250 6 3.00 3   0.030   $52.53
31124 0.5000 1.250 1.125 3.00 3   0.060   $53.54
31125 0.5000 1.250 1.625 3.00 3   0.090   $54.56
31126 0.5000 1.250 2.125 3.00 3   0.120   $55.57
31127 0.5000 1.250 1.375 3.00 3   0.125   $55.57
31128 0.5000 1.625 3.375 4.00 3   0.010   $61.23
31129 0.5000 1.625 3.375 4.00 3   0.015   $61.83
31130 0.5000 1.625 4.125 4.00 3   0.020   $62.43
31131 0.5000 1.625 4.375 4.00 3   0.030   $63.04
31132 0.5000 1.625 6 4.00 3   0.060   $64.26
31133 0.5000 1.625 3.375 4.00 3   0.090   $65.47
31134 0.5000 1.625 3.75 4.00 3   0.120   $66.67
31135 0.5000 1.625 2 4.00 3   0.125   $66.67
31136 0.5000 2.000 4.125 4.00 3   0.010   $67.96
31137 0.5000 2.000 4.375 4.00 3   0.015   $68.64
31138 0.5000 2.000 6 4.00 3   0.020   $69.30
31139 0.5000 2.000 3.375 4.00 3   0.030   $69.98
31140 0.5000 2.000 4.125 4.00 3   0.060   $71.33
31141 0.5000 2.000 4.375 4.00 3   0.090   $72.66
31142 0.5000 2.000 6 4.00 3   0.120   $74.01
31143 0.5000 2.000 3.375 4.00 3   0.125   $74.01
31144 0.5000 2.500 6 5.00 3   0.010   $81.55
31145 0.5000 2.500 1 5.00 3   0.015   $82.36
31146 0.5000 2.500 0.5 5.00 3   0.020   $83.17
31147 0.5000 2.500 0.75 5.00 3   0.030   $83.97
31148 0.5000 2.500 1.125 5.00 3   0.060   $85.58
31149 0.5000 2.500 2.5 5.00 3   0.090   $87.21
31150 0.5000 2.500 1.125 5.00 3   0.120   $88.82
31151 0.5000 2.500 1.125 5.00 3   0.125   $88.82
31152 0.6250 0.750 2.5 3.00 3   0.010   $89.20
31153 0.6250 0.750 2.25 3.00 3   0.015   $90.08
31154 0.6250 0.750 3.375 3.00 3   0.020   $90.96
31155 0.6250 0.750 3.375 3.00 3   0.030   $91.85
31156 0.6250 0.750 2 3.00 3   0.060   $93.61
31157 0.6250 0.750 4.125 3.00 3   0.090   $95.38
31158 0.6250 0.750 3.375 3.00 3   0.120   $97.15
31159 0.6250 0.750 6 3.00 3   0.125   $97.15
31160 0.6250 1.250 0.75 3.50 3   0.010   $94.55
31161 0.6250 1.250 1.125 3.50 3   0.015   $95.48
31162 0.6250 1.250 1.625 3.50 3   0.020   $96.42
31163 0.6250 1.250 1.125 3.50 3   0.030   $97.36
31164 0.6250 1.250 1.75 3.50 3   0.060   $99.23
31165 0.6250 1.250 1.625 3.50 3   0.090   $101.10
31166 0.6250 1.250 2.125 3.50 3   0.120   $102.97
31167 0.6250 1.250 1.375 3.50 3   0.125   $102.97
31168 0.6250 1.625 3.75 3.50 3   0.010   $100.22
31169 0.6250 1.625 2 3.50 3   0.015   $101.21
31170 0.6250 1.625 2.5 3.50 3   0.020   $102.21
31171 0.6250 1.625 2.625 3.50 3   0.030   $103.20
31172 0.6250 1.625 3.375 3.50 3   0.060   $105.18
31173 0.6250 1.625 0.5 3.50 3   0.090   $107.17
31174 0.6250 1.625 1 3.50 3   0.120   $109.15
31175 0.6250 1.625 0.75 3.50 3   0.125   $109.15
31176 0.6250 2.125 2.125 4.00 3   0.010   $110.24
31177 0.6250 2.125 1.75 4.00 3   0.015   $111.33
31178 0.6250 2.125 2.125 4.00 3   0.020   $112.42
31179 0.6250 2.125 2.125 4.00 3   0.030   $113.52
31180 0.6250 2.125 2.5 4.00 3   0.060   $115.70
31181 0.6250 2.125 2.25 4.00 3   0.090   $117.88
31182 0.6250 2.125 3.375 4.00 3   0.120   $120.07
31183 0.6250 2.125 3.375 4.00 3   0.125   $120.07
31184 0.6250 2.500 3.375 5.00 3   0.010   $121.26
31185 0.6250 2.500 4.125 5.00 3   0.015   $122.47
31186 0.6250 2.500 4.375 5.00 3   0.020   $123.67
31187 0.6250 2.500 6 5.00 3   0.030   $124.87
31188 0.6250 2.500 0.5 5.00 3   0.060   $127.27
31189 0.6250 2.500 0.5 5.00 3   0.090   $129.67
31190 0.6250 2.500 0.75 5.00 3   0.120   $132.08
31191 0.6250 2.500 1.125 5.00 3   0.125   $132.08
31192 0.7500 1.000 1.75 3.00 3   0.010   $143.33
31193 0.7500 1.000 1.625 3.00 3   0.015   $144.75
31194 0.7500 1.000 2.125 3.00 3   0.020   $146.17
31195 0.7500 1.000 1.375 3.00 3   0.030   $147.58
31196 0.7500 1.000 2.25 3.00 3   0.060   $150.42
31197 0.7500 1.000 2.375 3.00 3   0.090   $153.27
31198 0.7500 1.000 3.375 3.00 3   0.120   $156.11
31199 0.7500 1.000 3.375 3.00 3   0.125   $156.11
31200 0.7500 1.000 4.125 3.00 3   0.190   $157.53
31201 0.7500 1.000 4.375 3.00 3   0.250   $160.36
31202 0.7500 1.625 0.75 4.00 3   0.010   $153.36
31203 0.7500 1.625 1 4.00 3   0.015   $154.89
31204 0.7500 1.625 1.625 4.00 3   0.020   $156.40
31205 0.7500 1.625 2.125 4.00 3   0.030   $157.92
31206 0.7500 1.625 1.75 4.00 3   0.060   $160.96
31207 0.7500 1.625 2.125 4.00 3   0.090   $163.99
31208 0.7500 1.625 2.125 4.00 3   0.120   $167.03
31209 0.7500 1.625 2.5 4.00 3   0.125   $167.03
31210 0.7500 1.625 2.25 4.00 3   0.190   $168.55
31211 0.7500 1.625 3.375 4.00 3   0.250   $171.58
31212 0.7500 2.250 4.125 5.00 3   0.010   $182.50
31213 0.7500 2.250 2.625 5.00 3   0.015   $184.31
31214 0.7500 2.250 6 5.00 3   0.020   $186.11
31215 0.7500 2.250 0.75 5.00 3   0.030   $187.93
31216 0.7500 2.250 2.125 5.00 3   0.060   $191.54
31217 0.7500 2.250 2.5 5.00 3   0.090   $195.16
31218 0.7500 2.250 1.125 5.00 3   0.120   $198.77
31219 0.7500 2.250 1.75 5.00 3   0.125   $198.77
31220 0.7500 2.250 1.625 5.00 3   0.190   $200.57
31221 0.7500 2.250 2.25 5.00 3   0.250   $204.19
31222 0.7500 2.750 3.375 5.00 3   0.010   $204.40
31223 0.7500 2.750 4.125 5.00 3   0.015   $206.42
31224 0.7500 2.750 4.375 5.00 3   0.020   $208.45
31225 0.7500 2.750 6 5.00 3   0.030   $210.47
31226 0.7500 2.750 2.125 5.00 3   0.060   $214.52
31227 0.7500 2.750 2.5 5.00 3   0.090   $218.57
31228 0.7500 2.750 2.25 5.00 3   0.120   $222.62
31229 0.7500 2.750 3.375 5.00 3   0.125   $222.62
31230 0.7500 2.750 3.375 5.00 3   0.190   $224.65
31231 0.7500 2.750 2 5.00 3   0.250   $228.68
31232 0.7500 3.250 6 6.00 3   0.010   $206.45
31233 0.7500 3.250 1.375 6.00 3   0.015   $208.49
31234 0.7500 3.250 2.25 6.00 3   0.020   $210.54
31235 0.7500 3.250 3.375 6.00 3   0.030   $212.58
31236 0.7500 3.250 3.375 6.00 3   0.060   $216.66
31237 0.7500 3.250 2 6.00 3   0.090   $220.76
31238 0.7500 3.250 4.125 6.00 3   0.120   $224.85
31239 0.7500 3.250 2.625 6.00 3   0.125   $224.85
31240 0.7500 3.250 6 6.00 3   0.190   $226.89
31241 0.7500 3.250 2 6.00 3   0.250   $230.97
31242 1.0000 1.250 6 4.50 3   0.010   $231.88
31243 1.0000 1.250 2.5 4.50 3   0.015   $234.16
31244 1.0000 1.250 4.125 4.50 3   0.020   $236.46
31245 1.0000 1.250 2.625 4.50 3   0.030   $238.75
31246 1.0000 1.250 6 4.50 3   0.060   $243.34
31247 1.0000 1.250 0.5 4.50 3   0.090   $247.94
31248 1.0000 1.250 0.5 4.50 3   0.120   $252.53
31249 1.0000 1.250 0.75 4.50 3   0.125   $252.53
31250 1.0000 1.250 1.125 4.50 3   0.190   $254.82
31251 1.0000 1.250 1.375 4.50 3   0.250   $259.42
31252 1.0000 2.000 1.125 4.50 3   0.010   $252.74
31253 1.0000 2.000 1.75 4.50 3   0.015   $255.24
31254 1.0000 2.000 1.625 4.50 3   0.020   $257.74
31255 1.0000 2.000 2.125 4.50 3   0.030   $260.25
31256 1.0000 2.000 1.375 4.50 3   0.060   $265.25
31257 1.0000 2.000 2.25 4.50 3   0.090   $270.26
31258 1.0000 2.000 2.375 4.50 3   0.120   $275.26
31259 1.0000 2.000 2 4.50 3   0.125   $275.26
31260 1.0000 2.000 3.375 4.50 3   0.190   $277.76
31261 1.0000 2.000 2.625 4.50 3   0.250   $282.77
31262 1.0000 2.625 1 5.00 3   0.010   $295.71
31263 1.0000 2.625 0.5 5.00 3   0.015   $298.63
31264 1.0000 2.625 0.75 5.00 3   0.020   $301.56
31265 1.0000 2.625 1.125 5.00 3   0.030   $304.49
31266 1.0000 2.625 1.875 5.00 3   0.060   $310.35
31267 1.0000 2.625 2.125 5.00 3   0.090   $316.20
31268 1.0000 2.625 2.5 5.00 3   0.120   $322.05
31269 1.0000 2.625 1.125 5.00 3   0.125   $322.05
31270 1.0000 2.625 1.125 5.00 3   0.190   $324.99
31271 1.0000 2.625 1.625 5.00 3   0.250   $330.84
31272 1.0000 3.250 3.75 6.00 3   0.010   $325.27
31273 1.0000 3.250 2.375 6.00 3   0.015   $328.49
31274 1.0000 3.250 2.5 6.00 3   0.020   $331.72
31275 1.0000 3.250 4.125 6.00 3   0.030   $334.94
31276 1.0000 3.250 3.375 6.00 3   0.060   $341.37
31277 1.0000 3.250 6 6.00 3   0.090   $347.82
31278 1.0000 3.250 0.75 6.00 3   0.120   $354.26
31279 1.0000 3.250 1 6.00 3   0.125   $354.26
31280 1.0000 3.250 1 6.00 3   0.190   $357.49
31281 1.0000 3.250 0.75 6.00 3   0.250   $363.92
31282 1.0000 4.250 1.125 7.00 3   0.010   $390.33
31283 1.0000 4.250 1.75 7.00 3   0.015   $394.19
31284 1.0000 4.250 2.125 7.00 3   0.020   $398.06
31285 1.0000 4.250 1.125 7.00 3   0.030   $401.92
31286 1.0000 4.250 2.5 7.00 3   0.060   $409.66
31287 1.0000 4.250 3.125 7.00 3   0.090   $417.39
31288 1.0000 4.250 3.375 7.00 3   0.120   $425.11
31289 1.0000 4.250 3.75 7.00 3   0.125   $425.11
31290 1.0000 4.250 2 7.00 3   0.190   $428.97
31291 1.0000 4.250 2.5 7.00 3   0.250   $436.71
*Low stock items are restocked in 3-5 days

Applications

RECOMMENDED APPLICATIONS

FULL SLOTTING

HEAVY ROUGHING

HEM

POCKETING

COUNTURING FINISHING

RAMPING

Resources

DOWNLOADABLE RESOURCES
End Mills SelectionSpeed and Feet DataDepth of Cut GuidelinesWeldon Flat Specifications

Reviews

There are no reviews for this product.

Add a review

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
