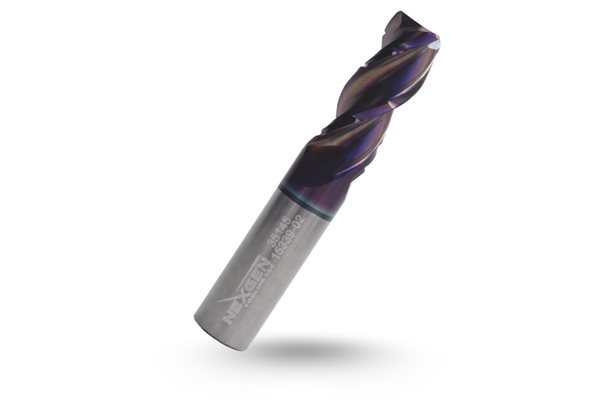

NXG-3 | 3 Flute Chipbreaker CR End Mill X-ProMAX Coated

NXG-3 | 3 Flute Chipbreaker CR End Mill X-ProMAX Coated
NXG-3 | 3 Flute Chipbreaker CR End Mill X-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for Non-Ferrous materials.

X-PRO coating for extended tool life in ultra-high production settings.

Offset Chipbreaker design for improved chip evacuation and reduced tool pressure.

Features & Benefits

  • 37 Degree Helix
  • 3-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Chip Breaker
  • Micrograin Carbide
  • X-ProMAX
FULL SLOTTING
HEAVY ROUGHING
LIGHT ROUGHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Ferrous: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
Non-Ferrous: h6 +.000/-.002 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feet Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
36002 0.1250 0.250 2.25 1.50 3   0.010   $21.15
36003 0.1250 0.250 3.375 1.50 3   0.015   $21.36
36004 0.1250 0.250 4.125 1.50 3   0.020   $21.57
36005 0.1250 0.250 6 1.50 3   0.030   $21.77
36007 0.1250 0.500 1.625 2.00 3   0.010   $24.32
36008 0.1250 0.500 1.125 2.00 3   0.015   $24.56
36009 0.1250 0.500 1.625 2.00 3   0.020   $24.80
36010 0.1250 0.500 1.375 2.00 3   0.030   $25.04
36012 0.1250 0.750 2.625 2.50 3   0.010   $24.80
36013 0.1250 0.750 0.75 2.50 3   0.015   $25.05
36014 0.1250 0.750 1.875 2.50 3   0.020   $25.30
36015 0.1250 0.750 1.75 2.50 3   0.030   $25.55
36017 0.1875 0.313 2.5 2.00 3   0.010   $24.77
36018 0.1875 0.313 3.375 2.00 3   0.015   $25.01
36019 0.1875 0.313 1.625 2.00 3   0.020   $25.25
36020 0.1875 0.313 1.375 2.00 3   0.030   $25.74
36022 0.1875 0.563 4.375 2.50 3   0.010   $27.09
36023 0.1875 0.563 3.375 2.50 3   0.015   $27.36
36024 0.1875 0.563 2 2.50 3   0.020   $27.62
36025 0.1875 0.563 2.625 2.50 3   0.030   $27.89
36027 0.1875 0.750 4.375 2.50 3   0.010   $29.26
36028 0.1875 0.750 3.375 2.50 3   0.015   $29.54
36029 0.1875 0.750 4.375 2.50 3   0.020   $29.84
36030 0.1875 0.750 1 2.50 3   0.030   $30.13
36032 0.2500 0.375 1.125 2.00 3   0.010   $30.18
36033 0.2500 0.375 3.125 2.00 3   0.015   $30.49
36034 0.2500 0.375 3.75 2.00 3   0.020   $30.78
36035 0.2500 0.375 2.5 2.00 3   0.030   $31.08
36036 0.2500 0.375 3.375 2.00 3   0.060   $31.67
36038 0.2500 0.500 1.125 2.50 3   0.010   $31.69
36039 0.2500 0.500 1.125 2.50 3   0.015   $32.00
36040 0.2500 0.500 1.625 2.50 3   0.020   $32.32
36041 0.2500 0.500 1.375 2.50 3   0.030   $32.64
36042 0.2500 0.500 2.375 2.50 3   0.060   $33.26
36044 0.2500 0.750 0.5 2.50 3   0.010   $33.27
36045 0.2500 0.750 0.75 2.50 3   0.015   $33.60
36046 0.2500 0.750 1.625 2.50 3   0.020   $33.93
36047 0.2500 0.750 1.75 2.50 3   0.030   $34.26
36048 0.2500 0.750 2.125 2.50 3   0.060   $34.93
36050 0.2500 1.000 2.5 3.00 3   0.010   $36.27
36051 0.2500 1.000 3.375 3.00 3   0.015   $36.63
36052 0.2500 1.000 0.75 3.00 3   0.020   $36.99
36053 0.2500 1.000 1 3.00 3   0.030   $37.34
36054 0.2500 1.000 2.125 3.00 3   0.060   $38.06
36056 0.2500 1.250 1.375 3.00 3   0.010   $38.09
36057 0.2500 1.250 2.375 3.00 3   0.015   $38.46
36058 0.2500 1.250 3.375 3.00 3   0.020   $38.84
36059 0.2500 1.250 4.375 3.00 3   0.030   $39.22
36060 0.2500 1.250 1 3.00 3   0.060   $39.97
36062 0.3125 0.4375 2.125 2.00 3   0.010   $33.45
36063 0.3125 0.4375 2.25 2.00 3   0.015   $33.78
36064 0.3125 0.4375 3.375 2.00 3   0.020   $34.11
36065 0.3125 0.4375 4.125 2.00 3   0.030   $34.45
36066 0.3125 0.4375 6 2.00 3   0.060   $35.11
36068 0.3125 0.813 1.625 2.50 3   0.010   $38.14
36069 0.3125 0.813 1.375 2.50 3   0.015   $38.51
36070 0.3125 0.813 2.375 2.50 3   0.020   $38.89
36071 0.3125 0.813 3.375 2.50 3   0.030   $39.27
36072 0.3125 0.813 4.375 2.50 3   0.060   $40.03
36074 0.3125 1.250 3.75 3.00 3   0.010   $45.00
36075 0.3125 1.250 2.5 3.00 3   0.015   $45.44
36076 0.3125 1.250 3.375 3.00 3   0.020   $45.89
36077 0.3125 1.250 2.25 3.00 3   0.030   $46.33
36078 0.3125 1.250 3.375 3.00 3   0.060   $47.22
36080 0.3750 0.500 2.5 2.00 3   0.010   $39.85
36081 0.3750 0.500 3.375 2.00 3   0.015   $40.24
36082 0.3750 0.500 2.5 2.00 3   0.020   $40.64
36083 0.3750 0.500 3.375 2.00 3   0.030   $41.03
36084 0.3750 0.500 0.75 2.00 3   0.060   $41.82
36085 0.3750 0.500 1 2.00 3   0.090   $42.61
36086 0.3750 0.500 2.125 2.00 3   0.120   $43.40
36087 0.3750 0.500 2.125 2.00 3   0.125   $43.40
36089 0.3750 0.750 2.375 2.50 3   0.010   $42.63
36090 0.3750 0.750 3.375 2.50 3   0.015   $43.06
36091 0.3750 0.750 4.375 2.50 3   0.020   $43.48
36092 0.3750 0.750 1 2.50 3   0.030   $43.91
36093 0.3750 0.750 0.75 2.50 3   0.060   $44.74
36094 0.3750 0.750 2.5 2.50 3   0.090   $45.59
36095 0.3750 0.750 1.125 2.50 3   0.120   $46.44
36096 0.3750 0.750 3.125 2.50 3   0.125   $46.44
36098 0.3750 1.000 4.125 3.00 3   0.010   $45.01
36099 0.3750 1.000 6 3.00 3   0.015   $45.45
36100 0.3750 1.000 0.5 3.00 3   0.020   $45.90
36101 0.3750 1.000 1.125 3.00 3   0.030   $46.34
36102 0.3750 1.000 1.125 3.00 3   0.060   $47.24
36103 0.3750 1.000 1.625 3.00 3   0.090   $48.13
36104 0.3750 1.000 1.375 3.00 3   0.120   $49.03
36105 0.3750 1.000 2.375 3.00 3   0.125   $49.03
36107 0.3750 1.250 1 3.00 3   0.010   $46.11
36108 0.3750 1.250 0.75 3.00 3   0.015   $46.58
36109 0.3750 1.250 2.5 3.00 3   0.020   $47.03
36110 0.3750 1.250 1.125 3.00 3   0.030   $47.49
36111 0.3750 1.250 3.125 3.00 3   0.060   $48.40
36112 0.3750 1.250 3.75 3.00 3   0.090   $49.31
36113 0.3750 1.250 2.5 3.00 3   0.120   $50.22
36114 0.3750 1.250 3.375 3.00 3   0.125   $50.22
36116 0.3750 1.500 1.125 3.50 3   0.010   $51.19
36117 0.3750 1.500 1.125 3.50 3   0.015   $51.70
36118 0.3750 1.500 1.625 3.50 3   0.020   $52.21
36119 0.3750 1.500 1.375 3.50 3   0.030   $52.70
36120 0.3750 1.500 2.375 3.50 3   0.060   $53.72
36121 0.3750 1.500 3.375 3.50 3   0.090   $54.74
36122 0.3750 1.500 4.375 3.50 3   0.120   $55.75
36123 0.3750 1.500 1.625 3.50 3   0.125   $55.75
36125 0.5000 0.625 3.75 2.50 3   0.010   $59.57
36126 0.5000 0.625 2.5 2.50 3   0.015   $60.16
36127 0.5000 0.625 3.375 2.50 3   0.020   $60.75
36128 0.5000 0.625 1.625 2.50 3   0.030   $61.34
36129 0.5000 0.625 1.375 2.50 3   0.060   $62.52
36130 0.5000 0.625 2.375 2.50 3   0.090   $63.70
36131 0.5000 0.625 3.375 2.50 3   0.120   $64.87
36132 0.5000 0.625 4.375 2.50 3   0.125   $64.87
36134 0.5000 1.000 3.375 3.00 3   0.010   $62.55
36135 0.5000 1.000 4.375 3.00 3   0.015   $63.17
36136 0.5000 1.000 3.375 3.00 3   0.020   $63.79
36137 0.5000 1.000 4.375 3.00 3   0.030   $64.41
36138 0.5000 1.000 3.375 3.00 3   0.060   $65.65
36139 0.5000 1.000 4.375 3.00 3   0.090   $66.89
36140 0.5000 1.000 1 3.00 3   0.120   $68.12
36141 0.5000 1.000 0.75 3.00 3   0.125   $68.12
36143 0.5000 1.250 1.125 3.00 3   0.010   $66.30
36144 0.5000 1.250 3.125 3.00 3   0.015   $66.96
36145 0.5000 1.250 3.75 3.00 3   0.020   $67.62
36146 0.5000 1.250 2.5 3.00 3   0.030   $68.26
36147 0.5000 1.250 3.375 3.00 3   0.060   $69.58
36148 0.5000 1.250 0.75 3.00 3   0.090   $70.89
36149 0.5000 1.250 1 3.00 3   0.120   $72.21
36150 0.5000 1.250 1.625 3.00 3   0.125   $72.21
36152 0.5000 1.625 2.5 4.00 3   0.010   $79.56
36153 0.5000 1.625 3.375 4.00 3   0.015   $80.35
36154 0.5000 1.625 2 4.00 3   0.020   $81.13
36155 0.5000 1.625 2.625 4.00 3   0.030   $81.93
36156 0.5000 1.625 0.5 4.00 3   0.060   $83.50
36157 0.5000 1.625 0.75 4.00 3   0.090   $85.08
36158 0.5000 1.625 1.375 4.00 3   0.120   $86.64
36159 0.5000 1.625 2.5 4.00 3   0.125   $86.64
36161 0.5000 2.000 2.25 4.00 3   0.010   $88.31
36162 0.5000 2.000 3.375 4.00 3   0.015   $89.19
36163 0.5000 2.000 4.125 4.00 3   0.020   $90.06
36164 0.5000 2.000 6 4.00 3   0.030   $90.94
36165 0.5000 2.000 0.5 4.00 3   0.060   $92.69
36166 0.5000 2.000 1.125 4.00 3   0.090   $94.44
36167 0.5000 2.000 2.125 4.00 3   0.120   $96.18
36168 0.5000 2.000 2.125 4.00 3   0.125   $96.18
36170 0.5000 2.500 2.375 5.00 3   0.010   $105.98
36171 0.5000 2.500 3.375 5.00 3   0.015   $107.03
36172 0.5000 2.500 4.375 5.00 3   0.020   $108.07
36173 0.5000 2.500 1.375 5.00 3   0.030   $109.12
36174 0.5000 2.500 2.5 5.00 3   0.060   $111.22
36175 0.5000 2.500 1.125 5.00 3   0.090   $113.31
36176 0.5000 2.500 3.125 5.00 3   0.120   $115.41
36177 0.5000 2.500 3.75 5.00 3   0.125   $115.41
36179 0.6250 0.750 2.5 3.00 3   0.010   $110.88
36180 0.6250 0.750 3.375 3.00 3   0.015   $111.97
36181 0.6250 0.750 2 3.00 3   0.020   $113.07
36182 0.6250 0.750 2.625 3.00 3   0.030   $114.16
36183 0.6250 0.750 1.375 3.00 3   0.060   $116.36
36184 0.6250 0.750 2.375 3.00 3   0.090   $118.55
36185 0.6250 0.750 3.375 3.00 3   0.120   $120.76
36186 0.6250 0.750 4.375 3.00 3   0.125   $120.76
36188 0.6250 1.250 2 3.50 3   0.010   $117.52
36189 0.6250 1.250 2.625 3.50 3   0.015   $118.69
36190 0.6250 1.250 0.5 3.50 3   0.020   $119.85
36191 0.6250 1.250 0.75 3.50 3   0.030   $121.01
36192 0.6250 1.250 1.375 3.50 3   0.060   $123.34
36193 0.6250 1.250 2.5 3.50 3   0.090   $125.67
36194 0.6250 1.250 1.125 3.50 3   0.120   $128.00
36195 0.6250 1.250 3.125 3.50 3   0.125   $128.00
36197 0.6250 1.625 4.125 3.50 3   0.010   $124.57
36198 0.6250 1.625 6 3.50 3   0.015   $125.81
36199 0.6250 1.625 3.50 3   0.020   $127.04
36200 0.6250 1.625 3.50 3   0.030   $128.27
36201 0.6250 1.625 3.50 3   0.060   $130.74
36202 0.6250 1.625 3.50 3   0.090   $133.21
36203 0.6250 1.625 3.50 3   0.120   $135.68
36204 0.6250 1.625 3.50 3   0.125   $135.68
36206 0.6250 2.125 4.00 3   0.010   $137.04
36207 0.6250 2.125 4.00 3   0.015   $138.39
36208 0.6250 2.125 4.00 3   0.020   $139.75
36209 0.6250 2.125 4.00 3   0.030   $141.11
36210 0.6250 2.125 4.00 3   0.060   $143.82
36211 0.6250 2.125 4.00 3   0.090   $146.53
36212 0.6250 2.125 4.00 3   0.120   $149.25
36213 0.6250 2.125 4.00 3   0.125   $149.25
36215 0.6250 2.500 5.00 3   0.010   $150.73
36216 0.6250 2.500 5.00 3   0.015   $152.23
36217 0.6250 2.500 5.00 3   0.020   $153.72
36218 0.6250 2.500 5.00 3   0.030   $155.22
36219 0.6250 2.500 5.00 3   0.060   $158.19
36220 0.6250 2.500 5.00 3   0.090   $161.18
36221 0.6250 2.500 5.00 3   0.120   $164.16
36222 0.6250 2.500 5.00 3   0.125   $164.16
36224 0.7500 1.000 3.00 3   0.010   $178.16
36225 0.7500 1.000 3.00 3   0.015   $179.92
36226 0.7500 1.000 3.00 3   0.020   $181.68
36227 0.7500 1.000 3.00 3   0.030   $183.45
36228 0.7500 1.000 3.00 3   0.060   $186.98
36229 0.7500 1.000 3.00 3   0.090   $190.50
36230 0.7500 1.000 3.00 3   0.120   $194.03
36231 0.7500 1.000 3.00 3   0.125   $194.03
36232 0.7500 1.000 3.00 3   0.190   $195.80
36233 0.7500 1.000 3.00 3   0.250   $199.33
36235 0.7500 1.625 4.00 3   0.010   $190.63
36236 0.7500 1.625 4.00 3   0.015   $192.52
36237 0.7500 1.625 4.00 3   0.020   $194.40
36238 0.7500 1.625 4.00 3   0.030   $196.29
36239 0.7500 1.625 4.00 3   0.060   $200.06
36240 0.7500 1.625 4.00 3   0.090   $203.85
36241 0.7500 1.625 4.00 3   0.120   $207.62
36242 0.7500 1.625 4.00 3   0.125   $207.62
36243 0.7500 1.625 4.00 3   0.190   $209.51
36244 0.7500 1.625 4.00 3   0.250   $213.28
36246 0.7500 2.250 5.00 3   0.010   $226.85
36247 0.7500 2.250 5.00 3   0.015   $229.10
36248 0.7500 2.250 5.00 3   0.020   $231.35
36249 0.7500 2.250 5.00 3   0.030   $233.59
36250 0.7500 2.250 5.00 3   0.060   $238.09
36251 0.7500 2.250 5.00 3   0.090   $242.57
36252 0.7500 2.250 5.00 3   0.120   $247.06
36253 0.7500 2.250 5.00 3   0.125   $247.06
36254 0.7500 2.250 5.00 3   0.190   $249.31
36255 0.7500 2.250 5.00 3   0.250   $253.81
36257 0.7500 2.750 5.00 3   0.010   $254.07
36258 0.7500 2.750 5.00 3   0.015   $256.59
36259 0.7500 2.750 5.00 3   0.020   $259.11
36260 0.7500 2.750 5.00 3   0.030   $261.62
36261 0.7500 2.750 5.00 3   0.060   $266.65
36262 0.7500 2.750 5.00 3   0.090   $271.68
36263 0.7500 2.750 5.00 3   0.120   $276.71
36264 0.7500 2.750 5.00 3   0.125   $276.71
36265 0.7500 2.750 5.00 3   0.190   $279.23
36266 0.7500 2.750 5.00 3   0.250   $284.26
36268 0.7500 3.250 6.00 3   0.010   $256.62
36269 0.7500 3.250 6.00 3   0.015   $259.16
36270 0.7500 3.250 6.00 3   0.020   $261.69
36271 0.7500 3.250 6.00 3   0.030   $264.24
36272 0.7500 3.250 6.00 3   0.060   $269.31
36273 0.7500 3.250 6.00 3   0.090   $274.40
36274 0.7500 3.250 6.00 3   0.120   $279.48
36275 0.7500 3.250 6.00 3   0.125   $279.48
36276 0.7500 3.250 6.00 3   0.190   $282.02
36277 0.7500 3.250 6.00 3   0.250   $287.10
36279 1.0000 1.250 4.50 3   0.010   $288.21
36280 1.0000 1.250 4.50 3   0.015   $291.07
36281 1.0000 1.250 4.50 3   0.020   $293.93
36282 1.0000 1.250 4.50 3   0.030   $296.78
36283 1.0000 1.250 4.50 3   0.060   $302.48
36284 1.0000 1.250 4.50 3   0.090   $308.20
36285 1.0000 1.250 4.50 3   0.120   $313.90
36286 1.0000 1.250 4.50 3   0.125   $313.90
36287 1.0000 1.250 4.50 3   0.190   $316.75
36288 1.0000 1.250 4.50 3   0.250   $322.46
36290 1.0000 2.000 4.50 3   0.010   $314.15
36291 1.0000 2.000 4.50 3   0.015   $317.27
36292 1.0000 2.000 4.50 3   0.020   $320.37
36293 1.0000 2.000 4.50 3   0.030   $323.49
36294 1.0000 2.000 4.50 3   0.060   $329.70
36295 1.0000 2.000 4.50 3   0.090   $335.92
36296 1.0000 2.000 4.50 3   0.120   $342.15
36297 1.0000 2.000 4.50 3   0.125   $342.15
36298 1.0000 2.000 4.50 3   0.190   $345.26
36299 1.0000 2.000 4.50 3   0.250   $351.47
36301 1.0000 2.625 5.00 3   0.010   $367.57
36302 1.0000 2.625 5.00 3   0.015   $371.20
36303 1.0000 2.625 5.00 3   0.020   $374.84
36304 1.0000 2.625 5.00 3   0.030   $378.48
36305 1.0000 2.625 5.00 3   0.060   $385.76
36306 1.0000 2.625 5.00 3   0.090   $393.04
36307 1.0000 2.625 5.00 3   0.120   $400.31
36308 1.0000 2.625 5.00 3   0.125   $400.31
36309 1.0000 2.625 5.00 3   0.190   $403.96
36310 1.0000 2.625 5.00 3   0.250   $411.23
36312 1.0000 3.250 6.00 3   0.010   $404.32
36313 1.0000 3.250 6.00 3   0.015   $408.32
36314 1.0000 3.250 6.00 3   0.020   $412.32
36315 1.0000 3.250 6.00 3   0.030   $416.33
36316 1.0000 3.250 6.00 3   0.060   $424.33
36317 1.0000 3.250 6.00 3   0.090   $432.34
36318 1.0000 3.250 6.00 3   0.120   $440.35
36319 1.0000 3.250 6.00 3   0.125   $440.35
36320 1.0000 3.250 6.00 3   0.190   $444.35
36321 1.0000 3.250 6.00 3   0.250   $452.36
36323 1.0000 4.250 7.00 3   0.010   $485.18
36324 1.0000 4.250 7.00 3   0.015   $489.99
36325 1.0000 4.250 7.00 3   0.020   $494.79
36326 1.0000 4.250 7.00 3   0.030   $499.59
36327 1.0000 4.250 7.00 3   0.060   $509.20
36328 1.0000 4.250 7.00 3   0.090   $518.81
36329 1.0000 4.250 7.00 3   0.120   $528.41
36330 1.0000 4.250 7.00 3   0.125   $528.41
36331 1.0000 4.250 7.00 3   0.190   $533.22
36332 1.0000 4.250 7.00 3   0.250   $542.83

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
