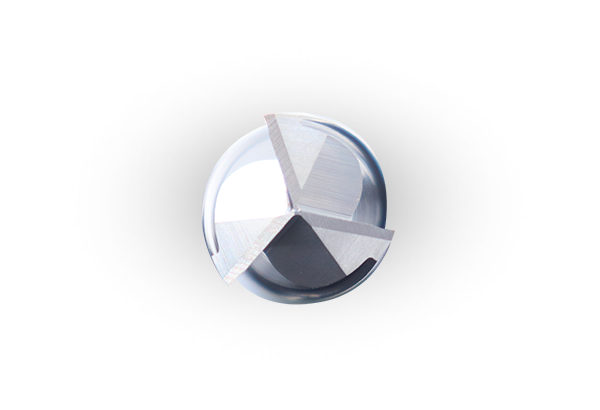

3 Flute Chipbreaker End Mill Uncoated

|
Tool Tolerances
  • Cut Diameter: Non-Ferrous: h6
  • Ferrous: +.000/-.002
  • Shank Diameter: h6
  • Length of Cut: +.032/-.000
  • Overall Length: +/- .050
  • Corner Radius: +/- .002
Make a Selection

Properties

• Tool Dimensions

Cut Diameter

Shank Diameter

LOC

OAL

• End Construction

Radius Dimensions

• Pricing and Availability

Price

In Stock

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
35001 0.1250 0.250 3.125 1.50 3   0.010   $17.35
35002 0.1250 0.250 2.375 1.50 3   0.015   $17.52
35003 0.1250 0.250 3.375 1.50 3   0.020   $17.69
35004 0.1250 0.250 4.375 1.50 3   0.030   $17.86
35006 0.1250 0.500 1.125 2.00 3   0.010   $19.95
35007 0.1250 0.500 2.5 2.00 3   0.015   $20.15
35008 0.1250 0.500 1.125 2.00 3   0.020   $20.35
35009 0.1250 0.500 3.125 2.00 3   0.030   $20.54
35011 0.1250 0.750 3.375 2.50 3   0.010   $20.35
35012 0.1250 0.750 6 2.50 3   0.015   $20.55
35013 0.1250 0.750 1.625 2.50 3   0.020   $20.75
35014 0.1250 0.750 1.125 2.50 3   0.030   $20.95
35016 0.1875 0.313 2 2.00 3   0.010   $20.32
35017 0.1875 0.313 2.625 2.00 3   0.015   $20.52
35018 0.1875 0.313 1.125 2.00 3   0.020   $20.72
35019 0.1875 0.313 3.125 2.00 3   0.030   $21.11
35021 0.1875 0.563 2.625 2.50 3   0.010   $22.22
35022 0.1875 0.563 2.25 2.50 3   0.015   $22.44
35023 0.1875 0.563 3.375 2.50 3   0.020   $22.66
35024 0.1875 0.563 4.125 2.50 3   0.030   $22.88
35026 0.1875 0.750 2.625 2.50 3   0.010   $24.00
35027 0.1875 0.750 2.5 2.50 3   0.015   $24.24
35028 0.1875 0.750 3.375 2.50 3   0.020   $24.48
35029 0.1875 0.750 0.75 2.50 3   0.030   $24.71
35031 0.2500 0.375 2.125 2.00 3   0.010   $24.76
35032 0.2500 0.375 2.5 2.00 3   0.015   $25.00
35033 0.2500 0.375 3.375 2.00 3   0.020   $25.25
35034 0.2500 0.375 2 2.00 3   0.030   $25.50
35035 0.2500 0.375 2.625 2.00 3   0.060   $25.99
35037 0.2500 0.500 0.75 2.50 3   0.010   $26.00
35038 0.2500 0.500 2.5 2.50 3   0.015   $26.26
35039 0.2500 0.500 2.125 2.50 3   0.020   $26.51
35040 0.2500 0.500 3.125 2.50 3   0.030   $26.77
35041 0.2500 0.500 3.75 2.50 3   0.060   $27.28
35043 0.2500 0.750 6 2.50 3   0.010   $27.30
35044 0.2500 0.750 0.5 2.50 3   0.015   $27.57
35045 0.2500 0.750 0.75 2.50 3   0.020   $27.84
35046 0.2500 0.750 1.125 2.50 3   0.030   $28.11
35047 0.2500 0.750 1.625 2.50 3   0.060   $28.65
35049 0.2500 1.000 2 3.00 3   0.010   $29.75
35050 0.2500 1.000 2.625 3.00 3   0.015   $30.05
35051 0.2500 1.000 6 3.00 3   0.020   $30.34
35052 0.2500 1.000 0.75 3.00 3   0.030   $30.64
35053 0.2500 1.000 1.625 3.00 3   0.060   $31.23
35055 0.2500 1.250 3.125 3.00 3   0.010   $31.24
35056 0.2500 1.250 3.75 3.00 3   0.015   $31.55
35057 0.2500 1.250 2.5 3.00 3   0.020   $31.86
35058 0.2500 1.250 3.375 3.00 3   0.030   $32.17
35059 0.2500 1.250 0.75 3.00 3   0.060   $32.79
35061 0.3125 0.4375 1.625 2.00 3   0.010   $27.44
35062 0.3125 0.4375 1.375 2.00 3   0.015   $27.71
35063 0.3125 0.4375 2.375 2.00 3   0.020   $27.99
35064 0.3125 0.4375 3.375 2.00 3   0.030   $28.26
35065 0.3125 0.4375 4.375 2.00 3   0.060   $28.80
35067 0.3125 0.813 1.125 2.50 3   0.010   $31.28
35068 0.3125 0.813 3.125 2.50 3   0.015   $31.59
35069 0.3125 0.813 3.75 2.50 3   0.020   $31.90
35070 0.3125 0.813 2.5 2.50 3   0.030   $32.21
35071 0.3125 0.813 3.375 2.50 3   0.060   $32.83
35073 0.3125 1.250 3.375 3.00 3   0.010   $36.92
35074 0.3125 1.250 2 3.00 3   0.015   $37.28
35075 0.3125 1.250 2.625 3.00 3   0.020   $37.65
35076 0.3125 1.250 1.375 3.00 3   0.030   $38.01
35077 0.3125 1.250 2.375 3.00 3   0.060   $38.74
35079 0.3750 0.500 2 2.00 3   0.010   $32.69
35080 0.3750 0.500 2.625 2.00 3   0.015   $33.01
35081 0.3750 0.500 2 2.00 3   0.020   $33.34
35082 0.3750 0.500 2.625 2.00 3   0.030   $33.66
35083 0.3750 0.500 0.5 2.00 3   0.060   $34.31
35084 0.3750 0.500 0.75 2.00 3   0.090   $34.95
35085 0.3750 0.500 1.625 2.00 3   0.120   $35.60
35086 0.3750 0.500 1.75 2.00 3   0.125   $35.60
35088 0.3750 0.750 3.75 2.50 3   0.010   $34.98
35089 0.3750 0.750 2.5 2.50 3   0.015   $35.32
35090 0.3750 0.750 2.625 2.50 3   0.020   $35.67
35091 0.3750 0.750 0.75 2.50 3   0.030   $36.02
35092 0.3750 0.750 1 2.50 3   0.060   $36.71
35093 0.3750 0.750 2.125 2.50 3   0.090   $37.40
35094 0.3750 0.750 2.125 2.50 3   0.120   $38.09
35095 0.3750 0.750 2.5 2.50 3   0.125   $38.09
35097 0.3750 1.000 3.375 3.00 3   0.010   $36.92
35098 0.3750 1.000 4.375 3.00 3   0.015   $37.29
35099 0.3750 1.000 0.75 3.00 3   0.020   $37.65
35100 0.3750 1.000 0.75 3.00 3   0.030   $38.02
35101 0.3750 1.000 2.5 3.00 3   0.060   $38.76
35102 0.3750 1.000 1.125 3.00 3   0.090   $39.49
35103 0.3750 1.000 3.125 3.00 3   0.120   $40.22
35104 0.3750 1.000 3.75 3.00 3   0.125   $40.22
35106 0.3750 1.250 0.75 3.00 3   0.010   $37.83
35107 0.3750 1.250 1 3.00 3   0.015   $38.20
35108 0.3750 1.250 1.625 3.00 3   0.020   $38.58
35109 0.3750 1.250 2.125 3.00 3   0.030   $38.95
35110 0.3750 1.250 2.5 3.00 3   0.060   $39.70
35111 0.3750 1.250 3.375 3.00 3   0.090   $40.45
35112 0.3750 1.250 2 3.00 3   0.120   $41.20
35113 0.3750 1.250 2.625 3.00 3   0.125   $41.20
35115 0.3750 1.500 0.75 3.50 3   0.010   $41.99
35116 0.3750 1.500 2.5 3.50 3   0.015   $42.41
35117 0.3750 1.500 1.125 3.50 3   0.020   $42.82
35118 0.3750 1.500 3.125 3.50 3   0.030   $43.24
35119 0.3750 1.500 3.75 3.50 3   0.060   $44.07
35120 0.3750 1.500 2.5 3.50 3   0.090   $44.90
35121 0.3750 1.500 3.375 3.50 3   0.120   $45.73
35122 0.3750 1.500 1.125 3.50 3   0.125   $45.73
35124 0.5000 0.625 3.375 2.50 3   0.010   $48.87
35125 0.5000 0.625 2 2.50 3   0.015   $49.35
35126 0.5000 0.625 2.625 2.50 3   0.020   $49.83
35127 0.5000 0.625 1.125 2.50 3   0.030   $50.32
35128 0.5000 0.625 3.125 2.50 3   0.060   $51.29
35129 0.5000 0.625 3.75 2.50 3   0.090   $52.25
35130 0.5000 0.625 2.5 2.50 3   0.120   $53.22
35131 0.5000 0.625 3.375 2.50 3   0.125   $53.22
35133 0.5000 1.000 2.5 3.00 3   0.010   $51.31
35134 0.5000 1.000 3.375 3.00 3   0.015   $51.82
35135 0.5000 1.000 2.5 3.00 3   0.020   $52.33
35136 0.5000 1.000 2.625 3.00 3   0.030   $52.83
35137 0.5000 1.000 2 3.00 3   0.060   $53.85
35138 0.5000 1.000 3.375 3.00 3   0.090   $54.87
35139 0.5000 1.000 0.75 3.00 3   0.120   $55.88
35140 0.5000 1.000 1 3.00 3   0.125   $55.88
35142 0.5000 1.250 2.125 3.00 3   0.010   $54.39
35143 0.5000 1.250 2.5 3.00 3   0.015   $54.93
35144 0.5000 1.250 3.375 3.00 3   0.020   $55.47
35145 0.5000 1.250 3.375 3.00 3   0.030   $56.00
35146 0.5000 1.250 4.125 3.00 3   0.060   $57.08
35147 0.5000 1.250 0.5 3.00 3   0.090   $58.16
35148 0.5000 1.250 0.75 3.00 3   0.120   $59.24
35149 0.5000 1.250 1.375 3.00 3   0.125   $59.24
35151 0.5000 1.625 2.125 4.00 3   0.010   $65.27
35152 0.5000 1.625 2.25 4.00 3   0.015   $65.91
35153 0.5000 1.625 3.375 4.00 3   0.020   $66.56
35154 0.5000 1.625 3.375 4.00 3   0.030   $67.21
35155 0.5000 1.625 4.375 4.00 3   0.060   $68.50
35156 0.5000 1.625 0.5 4.00 3   0.090   $69.79
35157 0.5000 1.625 1.125 4.00 3   0.120   $71.08
35158 0.5000 1.625 2.125 4.00 3   0.125   $71.08
35160 0.5000 2.000 1.375 4.00 3   0.010   $72.45
35161 0.5000 2.000 2.375 4.00 3   0.015   $73.16
35162 0.5000 2.000 3.375 4.00 3   0.020   $73.88
35163 0.5000 2.000 3.375 4.00 3   0.030   $74.60
35164 0.5000 2.000 0.75 4.00 3   0.060   $76.03
35165 0.5000 2.000 0.75 4.00 3   0.090   $77.47
35166 0.5000 2.000 1.875 4.00 3   0.120   $78.90
35167 0.5000 2.000 1.75 4.00 3   0.125   $78.90
35169 0.5000 2.500 3.75 5.00 3   0.010   $86.94
35170 0.5000 2.500 2.5 5.00 3   0.015   $87.80
35171 0.5000 2.500 3.375 5.00 3   0.020   $88.66
35172 0.5000 2.500 1.125 5.00 3   0.030   $89.52
35173 0.5000 2.500 2.125 5.00 3   0.060   $91.24
35174 0.5000 2.500 2.125 5.00 3   0.090   $92.96
35175 0.5000 2.500 2.5 5.00 3   0.120   $94.68
35176 0.5000 2.500 3.375 5.00 3   0.125   $94.68
35178 0.6250 0.750 2.125 3.00 3   0.010   $95.09
35179 0.6250 0.750 2.25 3.00 3   0.015   $96.03
35180 0.6250 0.750 3.375 3.00 3   0.020   $96.97
35181 0.6250 0.750 4.125 3.00 3   0.030   $97.91
35182 0.6250 0.750 6 3.00 3   0.060   $99.79
35183 0.6250 0.750 3.75 3.00 3   0.090   $101.68
35184 0.6250 0.750 2.5 3.00 3   0.120   $103.56
35185 0.6250 0.750 3.375 3.00 3   0.125   $103.56
35187 0.6250 1.250 6 3.50 3   0.010   $100.79
35188 0.6250 1.250 4.125 3.50 3   0.015   $101.79
35189 0.6250 1.250 6 3.50 3   0.020   $102.79
35190 0.6250 1.250 1 3.50 3   0.030   $103.79
35191 0.6250 1.250 1.125 3.50 3   0.060   $105.78
35192 0.6250 1.250 2.125 3.50 3   0.090   $107.78
35193 0.6250 1.250 2.125 3.50 3   0.120   $109.77
35194 0.6250 1.250 2.5 3.50 3   0.125   $109.77
35196 0.6250 1.625 3.375 3.50 3   0.010   $106.84
35197 0.6250 1.625 4.375 3.50 3   0.015   $107.90
35198 0.6250 1.625 3.50 3   0.020   $108.96
35199 0.6250 1.625 3.50 3   0.030   $110.01
35200 0.6250 1.625 3.50 3   0.060   $112.13
35201 0.6250 1.625 3.50 3   0.090   $114.24
35202 0.6250 1.625 3.50 3   0.120   $116.36
35203 0.6250 1.625 3.50 3   0.125   $116.36
35205 0.6250 2.125 4.00 3   0.010   $117.52
35206 0.6250 2.125 4.00 3   0.015   $118.69
35207 0.6250 2.125 4.00 3   0.020   $119.85
35208 0.6250 2.125 4.00 3   0.030   $121.01
35209 0.6250 2.125 4.00 3   0.060   $123.34
35210 0.6250 2.125 4.00 3   0.090   $125.67
35211 0.6250 2.125 4.00 3   0.120   $128.00
35212 0.6250 2.125 4.00 3   0.125   $128.00
35214 0.6250 2.500 5.00 3   0.010   $129.28
35215 0.6250 2.500 5.00 3   0.015   $130.56
35216 0.6250 2.500 5.00 3   0.020   $131.84
35217 0.6250 2.500 5.00 3   0.030   $133.12
35218 0.6250 2.500 5.00 3   0.060   $135.68
35219 0.6250 2.500 5.00 3   0.090   $138.24
35220 0.6250 2.500 5.00 3   0.120   $140.80
35221 0.6250 2.500 5.00 3   0.125   $140.80
35223 0.7500 1.000 3.00 3   0.010   $152.80
35224 0.7500 1.000 3.00 3   0.015   $154.31
35225 0.7500 1.000 3.00 3   0.020   $155.82
35226 0.7500 1.000 3.00 3   0.030   $157.33
35227 0.7500 1.000 3.00 3   0.060   $160.36
35228 0.7500 1.000 3.00 3   0.090   $163.39
35229 0.7500 1.000 3.00 3   0.120   $166.41
35230 0.7500 1.000 3.00 3   0.125   $166.41
35231 0.7500 1.000 3.00 3   0.190   $167.92
35232 0.7500 1.000 3.00 3   0.250   $170.95
35234 0.7500 1.625 4.00 3   0.010   $163.49
35235 0.7500 1.625 4.00 3   0.015   $165.11
35236 0.7500 1.625 4.00 3   0.020   $166.73
35237 0.7500 1.625 4.00 3   0.030   $168.35
35238 0.7500 1.625 4.00 3   0.060   $171.59
35239 0.7500 1.625 4.00 3   0.090   $174.82
35240 0.7500 1.625 4.00 3   0.120   $178.06
35241 0.7500 1.625 4.00 3   0.125   $178.06
35242 0.7500 1.625 4.00 3   0.190   $179.68
35243 0.7500 1.625 4.00 3   0.250   $182.92
35245 0.7500 2.250 5.00 3   0.010   $194.56
35246 0.7500 2.250 5.00 3   0.015   $196.48
35247 0.7500 2.250 5.00 3   0.020   $198.41
35248 0.7500 2.250 5.00 3   0.030   $200.33
35249 0.7500 2.250 5.00 3   0.060   $204.19
35250 0.7500 2.250 5.00 3   0.090   $208.04
35251 0.7500 2.250 5.00 3   0.120   $211.89
35252 0.7500 2.250 5.00 3   0.125   $211.89
35253 0.7500 2.250 5.00 3   0.190   $213.82
35254 0.7500 2.250 5.00 3   0.250   $217.67
35256 0.7500 2.750 5.00 3   0.010   $217.90
35257 0.7500 2.750 5.00 3   0.015   $220.06
35258 0.7500 2.750 5.00 3   0.020   $222.22
35259 0.7500 2.750 5.00 3   0.030   $224.37
35260 0.7500 2.750 5.00 3   0.060   $228.69
35261 0.7500 2.750 5.00 3   0.090   $233.00
35262 0.7500 2.750 5.00 3   0.120   $237.32
35263 0.7500 2.750 5.00 3   0.125   $237.32
35264 0.7500 2.750 5.00 3   0.190   $239.48
35265 0.7500 2.750 5.00 3   0.250   $243.79
35267 0.7500 3.250 6.00 3   0.010   $220.08
35268 0.7500 3.250 6.00 3   0.015   $222.26
35269 0.7500 3.250 6.00 3   0.020   $224.44
35270 0.7500 3.250 6.00 3   0.030   $226.62
35271 0.7500 3.250 6.00 3   0.060   $230.98
35272 0.7500 3.250 6.00 3   0.090   $235.33
35273 0.7500 3.250 6.00 3   0.120   $239.69
35274 0.7500 3.250 6.00 3   0.125   $239.69
35275 0.7500 3.250 6.00 3   0.190   $241.87
35276 0.7500 3.250 6.00 3   0.250   $246.23
35278 1.0000 1.250 4.50 3   0.010   $247.18
35279 1.0000 1.250 4.50 3   0.015   $249.63
35280 1.0000 1.250 4.50 3   0.020   $252.08
35281 1.0000 1.250 4.50 3   0.030   $254.52
35282 1.0000 1.250 4.50 3   0.060   $259.42
35283 1.0000 1.250 4.50 3   0.090   $264.31
35284 1.0000 1.250 4.50 3   0.120   $269.21
35285 1.0000 1.250 4.50 3   0.125   $269.21
35286 1.0000 1.250 4.50 3   0.190   $271.66
35287 1.0000 1.250 4.50 3   0.250   $276.55
35289 1.0000 2.000 4.50 3   0.010   $269.43
35290 1.0000 2.000 4.50 3   0.015   $272.10
35291 1.0000 2.000 4.50 3   0.020   $274.76
35292 1.0000 2.000 4.50 3   0.030   $277.43
35293 1.0000 2.000 4.50 3   0.060   $282.77
35294 1.0000 2.000 4.50 3   0.090   $288.10
35295 1.0000 2.000 4.50 3   0.120   $293.44
35296 1.0000 2.000 4.50 3   0.125   $293.44
35297 1.0000 2.000 4.50 3   0.190   $296.11
35298 1.0000 2.000 4.50 3   0.250   $301.44
35300 1.0000 2.625 5.00 3   0.010   $315.23
35301 1.0000 2.625 5.00 3   0.015   $318.35
35302 1.0000 2.625 5.00 3   0.020   $321.47
35303 1.0000 2.625 5.00 3   0.030   $324.60
35304 1.0000 2.625 5.00 3   0.060   $330.84
35305 1.0000 2.625 5.00 3   0.090   $337.08
35306 1.0000 2.625 5.00 3   0.120   $343.32
35307 1.0000 2.625 5.00 3   0.125   $343.32
35308 1.0000 2.625 5.00 3   0.190   $346.44
35309 1.0000 2.625 5.00 3   0.250   $352.69
35311 1.0000 3.250 6.00 3   0.010   $346.76
35312 1.0000 3.250 6.00 3   0.015   $350.19
35313 1.0000 3.250 6.00 3   0.020   $353.62
35314 1.0000 3.250 6.00 3   0.030   $357.06
35315 1.0000 3.250 6.00 3   0.060   $363.92
35316 1.0000 3.250 6.00 3   0.090   $370.79
35317 1.0000 3.250 6.00 3   0.120   $377.65
35318 1.0000 3.250 6.00 3   0.125   $377.65
35319 1.0000 3.250 6.00 3   0.190   $381.09
35320 1.0000 3.250 6.00 3   0.250   $387.95
35322 1.0000 4.250 7.00 3   0.010   $416.11
35323 1.0000 4.250 7.00 3   0.015   $420.23
35324 1.0000 4.250 7.00 3   0.020   $424.35
35325 1.0000 4.250 7.00 3   0.030   $428.47
35326 1.0000 4.250 7.00 3   0.060   $436.71
35327 1.0000 4.250 7.00 3   0.090   $444.95
35328 1.0000 4.250 7.00 3   0.120   $453.19
35329 1.0000 4.250 7.00 3   0.125   $453.19
35330 1.0000 4.250 7.00 3   0.190   $457.31
35331 1.0000 4.250 7.00 3   0.250   $465.54
*Low stock items are restocked in 3-5 days

Applications

RECOMMENDED APPLICATIONS

FULL SLOTTING

HEAVY ROUGHING

LIGHT ROUGHING

POCKETING

RAMPING

Resources

DOWNLOADABLE RESOURCES
End Mills SelectionSpeed and Feet DataDepth of Cut GuidelinesWeldon Flat Specifications

Reviews

There are no reviews for this product.

Add a review

Need help deciding?
Talk to our product experts!

S4_COntact Banner_Img
