NXG-2 | 2 Flute Square End Mill X-ProMAX Coated

NXG-2 | 2 Flute Square End Mill X-ProMAX Coated
NXG-2 | 2 Flute Square End Mill X-ProMAX Coated - Image 2

Overview

Premium high performance carbide end mill for Non-Ferrous materials.

Polished flutes resist Built Up Edge (BUE) in Aluminum and Copper Alloys.

Features & Benefits

  • 45 Degree Helix
  • 2-Flute
  • Center Cutting
  • Standard Pitch
  • h6 Shank
  • Micrograin Carbide
  • X-ProMAX
FULL SLOTTING
HEAVY ROUGHING

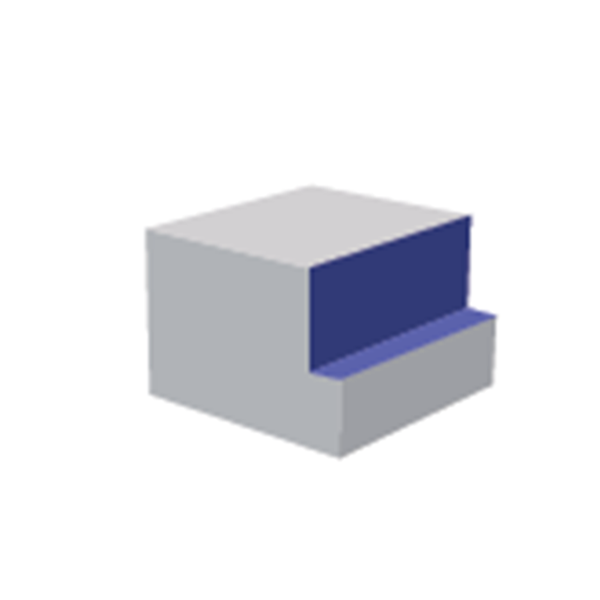

FINISHING
POCKETING
RAMPING

Tolerances

Cut Diameter: Shank Diameter: Length of Cut: Overall Length: Corner Radius:
h6 h6 +.032/-.000 +/- .050 +/- .002

Downloads

End Mills Selection
Speed and Feed Data
Depth of Cut Guidelines
Weldon Flat Specifications

Materials

NON-FERROUS STEEL CAST IRON STAINLESS HSRA HARDENED STEEL
Alloyed Casting Carbon Alloyed Gray, Ductile 300-400 PH NI-Alloy Titanium <50 HRC >50 HRC
* * * *

Properties

Tool Dimensions End Construction Selection
EDP CUT Ø
SHANK Ø		 LOC LBS OAL FLUTES SQUARE CORNER RADIUS BALLNOSE LIST PRICE $ IN STOCK
23001 0.1250 0.250 0.75 1.50 2     $17.61
23002 0.1250 0.500 0.5 2.00 2     $20.25
23003 0.1250 0.750 1 2.50 2     $20.65
23004 0.1875 0.313 2.125 2.50 2     $21.15
23005 0.1875 0.563 1.125 2.50 2     $23.26
23006 0.1875 0.750 2.125 2.50 2     $24.35
23007 0.2500 0.375 1.375 2.00 2     $25.12
23008 0.2500 0.500 3.375 2.00 2     $26.13
23009 0.2500 0.750 2.375 2.50 2     $26.91
23010 0.2500 1.000 2 3.00 2     $29.61
23011 0.2500 1.250 3.375 3.00 2     $30.78
23012 0.3750 0.500 0.5 2.00 2     $35.31
23013 0.3750 1.000 1 2.50 2     $36.45
23014 0.3750 1.250 0.75 3.00 2     $38.64
23015 0.3750 1.500 0.75 3.50 2     $42.50
23016 0.5000 0.625 2.5 2.50 2     $49.59
23017 0.5000 1.000 1.75 3.00 2     $52.07
23018 0.5000 1.250 1.125 3.00 2     $54.41
23019 0.5000 1.625 2.125 4.00 2     $65.84
23020 0.5000 2.000 3.125 4.00 2     $73.73
23021 0.6250 0.750 3.375 3.00 2     $92.28
23022 0.6250 1.250 2.5 3.50 2     $98.28
23023 0.6250 1.625 4.125 3.50 2     $103.20
23024 0.6250 2.125 3.375 4.00 2     $113.52
23025 0.6250 2.500 6 5.00 2     $124.87
23026 0.7500 1.000 0.75 4.00 2     $148.29
23027 0.7500 1.625 0.5 4.00 2     $160.17
23028 0.7500 2.250 1 5.00 2     $192.20
23029 0.7500 2.750 1.125 5.00 2     $213.34
23030 0.7500 3.250 1.625 6.00 2     $215.47
23031 1.0000 1.250 2.125 4.50 2     $239.91
23032 1.0000 2.000 1.125 5.00 2     $263.90
23033 1.0000 2.625 2.125 5.00 2     $306.12
23034 1.0000 3.250 1.625 6.00 2     $336.73
23035 1.0000 4.250 2.5 7.00 2     $400.71
